Full Servo New Mother Breast Feeding Pad Making Machine High Quality
- NANJING
- T/T D/P D/A
You May Like
Product Details
| Condition | New | Product Type | Other, nursing pad machine | |
| Processing Type | Other, Non-woven processing equipment | Place of Origin | Jiangsu, China | |
| Brand Name | JWC breast pad machine | Model Number | JWC-RD-SV | |
| Voltage | 380v | Power(W) | 120kw | |
| Dimension(L*W*H) | 19*8*3.5 m | Weight | 43000kg | |
| Certification | CE | Warranty | 12 months | |
| After-sales Service Provided | Overseas third-party support available |
Product Description

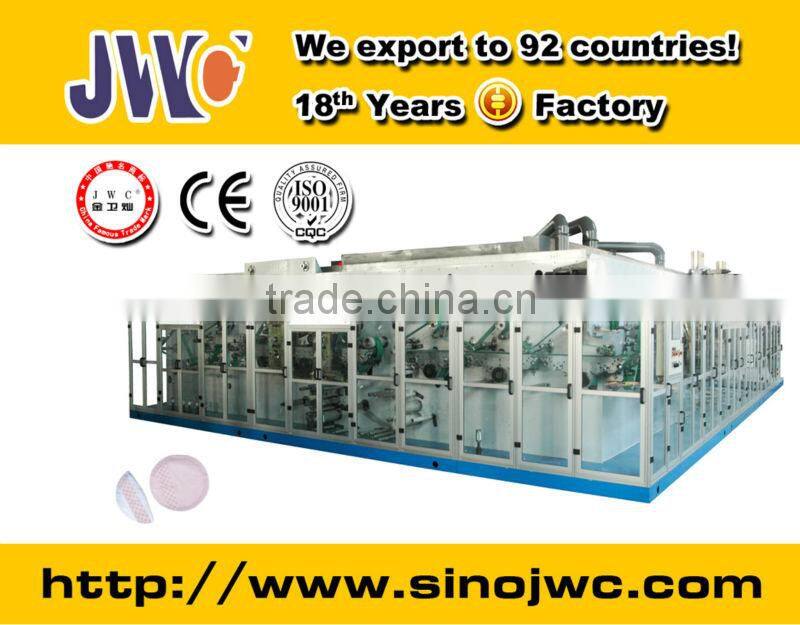

Full servo cricle shape breast pad machine
♦ Main technical parameters:
| Desingned speed | 800pcs/min |
| Working speed | 600pcs/min(Small size) |
| Qualified rate | 97% (The rate is compared with qualified products with gross output products within7.5 hours) |
| Efficiency | ≥85%(The rate is compared real output with principle output within 7.5 hours) |
| Installed capacity | 160KW (Including hot melt system) |
| Practical capacity | 120KW(Including hot melt system) |
| Electric power supply | Three-phase & four-wire 380V/50HZ(Ground wire) |
| Electric wire | 3x120mm2+1x50mm2+1x25mm2 |
| Lowest barometric pressure | 8kg/cm2 |
| Air compressor | more than 0.6Mpa, 1.8m3/min, 22kw(to be reference) |
| Gross weight | 43000kg |
| Noise | less than 85dB(A) |
| Machine size | (19x8x3.5)M |
| Working size | (24x12x4)M |
| Color | Silver(According to order) |
| Range of products | XL,L,M,S |
| Container | 4x40HQ+1x20GP |
♦ Basic compositions:
1.It adopts 43 sets servo motors and controls main raw materials roller automatic unwinding,tension system and realizes automatic splicing function in high speed circumstances. It uses synchronous belt conveying to ensure high precision.
2.High-speed saw mill can take unteated pulp(with insulative system),semi-treatded pulp and treated pulp.
Pulp rack adopts pneumatic lifting method and enable itself with two rolls loading capacity
adopts frequency-converter to control wood pulp supplying amount. The applying amount can be shown on the touch-screen of the PLC.
forming drum feeging system.
Center suck to ensure solid fluff
Fluff formed evenly in several zones,SAP mixed with fluff completely.
3.Double-screw type of SAP adding unit.Wood pulp is mixed with SAP supplying amount is adjusted by frequency-converter motor.It is step-less adjustment and follow up the speed of the mainmachine.
breast pad machine
