HIGH PERFORMANCE PERFECT COMBINATION ---------
----------- E18 4-DX5 Pursues Perfection
PRINTER INTRODUCTION
---Focus on speeding and quality
---Full support from Top R&D Team
---Four Epson Printer Heads Design
---1.8m printing width
FEATURE

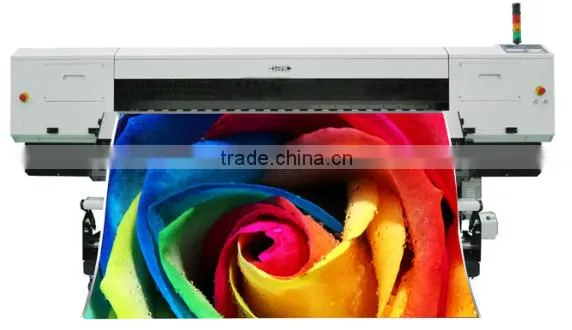

E18 4 -DX5 Format Water-based Inkjet Thermal Transfer Printer
E18 4 -DX5 Format Thermal Transfer Printer applies to printing on cloth ,leather, etc .this model adopt Epson print heads in combination of the best control system and outstanding outlook design, meant to reach the top printing performance and speed .For providing optimum service ,we select material strictly, keep the best cost performance

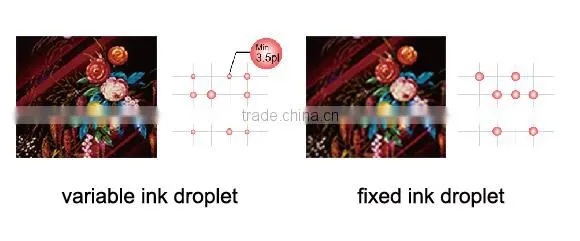

The Minimum 3.5pl Variable Ink Droplet
Possessing the functions that print with different sizes of ink droplets and its smallest droplet size can reach 3.5pl even the four-color mode ,printing can also obtain the smooth result without conspicuous grainy
Multiple Ink Combinations Gives the Perfect Expression about Image
Support multicolor-printing, besides CMYK four colors, LC and LM can be equipped to enhance the natural color transition, make high recognition to similar colors , and LLK increases controllability and sense of depth to printing colors.
Self-developed intelligent inkjet technology
This model adopts the self-independent developed intelligent inkjet technology to print high quality image .Print heads can jet three different sizes of ink drops through intelligent control, eve though low resolution printing can reach the better image quality than the same type inkjet printer
High Performance
Flat Form Heating System and Air Drying System Facilitate the Ink Droplets Size
Printer adopts the flat form heating system to realize the media on pre-print, printing and post-print. Meanwhile, infrared lamp is used to shape the ink droplet ,fan solidifies ink on the media ,keep the double insurance

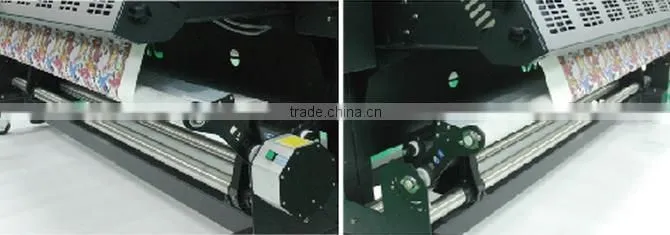

Un-wind and Re-wind Media Perfectly
E18 is equipped with Media Fix Device to un-wind and re-wind the media,adjust the taken-up media at any time, and the tension bar is used to enhance the tension to guarantee the media completely entering into re-wind roller
Unique Operation Double-Panel Design
The unique double-panel offers the intelligent and simplified printer control, and holds the shortcut key setting, proceeds the everyday operation without entering into menu. The control boards are equipped with the control buttons to provide duel safeguard for customers.
Humanized Printer Protection Design
Printer is equipped with emergency switch and alarm lamp to guarantee customers to grasp the printing status,meanwhile printer gets the ablility to stop printing jobs in hte emergency situation,operates the protection circuit to keep its performance and consistency.
High Stability High Durability
All-steel manufacturing,every detail reflects our sincerity.Cooperate with international brand like THK,IGUS,which lay a foundation for stability and durability
| Model | E18 4-DX5 Heads | |
| Print Head | four Epson DX5 Printheads | |
| Maintenance | AutoClean,AutoMoisture | |
| Resolution | 5400dpi;720dpi;1440dpi | |
| Max Printing Speed | 159m²/h | |
| Ink | Type | ECO Solvent Ink |
| Color | CMYK+LC+LM+LK+LIK; | |
| Capacity | 5L | |
| Media | Max Width | 1800mm |
| Max Thickness | 2mm | |
| Pipe Internal Diameter | 50-100mm | |
| Feeding Device | Max Weight 80kg | |
| Take-up Device | Max Weight 80kg | |
| Feeding Syestem | Roll-to-roll | |
| Printing Mode | Bi-direction/Uni-direction | |
| Port | USB 2.0 | |
| Computer | RAM | 4 GB |
| Installation Space | 300M | |
| Power Supply | AC 220-240V 50HZ | |
| Environment | Temperature | 25℃-35℃ |
| Humidity | 35-65%Rh | |
| Dimensions(LxWxH) | 3205mmx1100mmx1430mm | |
| Weight | 700kg | |
APPLICATION
FACTORY SHOW
OUR SERVICE
24-Hour Online Service
Pre-Sales Service After-Sales Service
*Inquiry and consulting support * Training how to install the machine and training use
*Sample testing support * Engineers availa to service machine overseas
* View our factory * One year warranty
PACKING & DELIVERY
|
Packing |
|
Size |
3205mm(L)*1100mm(W)*1430mm(H) |
|
Weight |
700kg |
|
Details |
on wooden |
|
