Product Details
Condition: | New | Plate Type: | Other, Oric UV Inkjet Flatbed Printer | Brand Name: | Oric |
Model Number: | O-27 | Usage: | Other, Oric UV Inkjet Flatbed Printer | Automatic Grade: | Automatic |
Voltage: | AC220V/240V 50HZ | Dimensions(L*W*H): | 2160mm*4230mm*1400mm | Weight: | 700kg |
Certification: | CE Certification | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
HIGH PERFORMANCE PERFECT COMBINATION ---------
----------- O-27 Pursues Perfection
---8 Gen5 Print Heads Design
---Apply to kinds of sheet material
---2.7x1.5m Printing Width
---Full Support from Top R&D Team

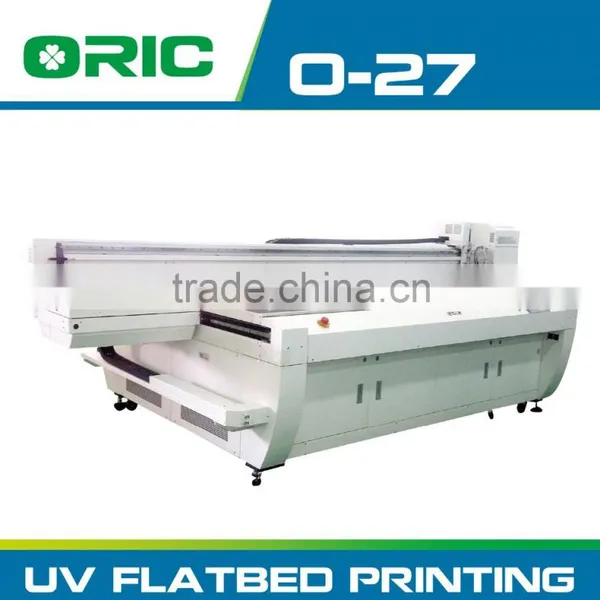

O-27 Flatbed UV Inkjet Printer
STANDARD CONFIGURATION
The Best Quality and Effect
Print Heads Guarantee Quality
ORIC O27 adopts Gen5 print heads to support the high-precision printing; the various ink droplets and the grey scale printing technology ensure the details of image vivid and exact. Three-stage various ink drop control makes Image reduction degree more than 95%.
Format Printing Width, Multiple Layers Printing
ORIC O27 adopts Gen5 print heads to support the high-precision printing; the various ink droplets and the grey scale printing technology ensure the details of image vivid and exact. Three-stage various ink drop control makes Image reduction degree more than 95%.
Staggered Print Head Arrangement
Printer supports 6 colors including White and Vanish, express the best printing image no matter the color or transparent media; implement the different printing needs through print heads arrangement, meanwhile save the ink consumption.
Self-developed Intelligent Inkjet Technology

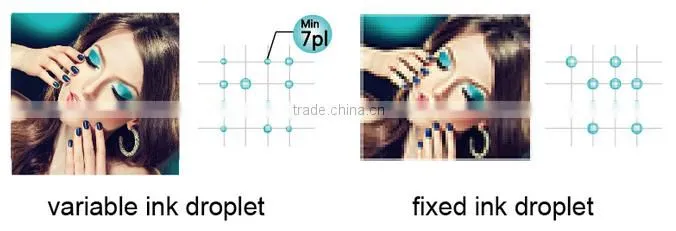

This model adopts the self-independent developed intelligent inkjet technology to print high quality image. Print heads can jet three different sizes of ink drops through intelligent control, even though low resolution printing can reach the better image quality than the same type inkjet printer.
Advanced Technology and Human Design
Automatic Height Measurement
O-27 adopts the automatic height measurement system to adjust the distance between the baseplate and the media automatically according to the thickness of media, make sure that print heads print the best quality in the most proper distance.
Air Draft System
There are four air draft channels of printer to control the air draft of whole flatbed. System is dominated by high-power suction motor, the motor module can be placed depend upon the four trundles.
Two-level Negative Pressure (NP) System and Ink Supply System
Self-designed two-level NP system provides the more accuracy pressure with the error within ± 0.05kPa, meanwhile support the positive pressure supply. Ink supply system adopts sensor and dual ink pumps to supply ink, give the more precise filtration and more accurate ink capacity control.
Speed Guarantee in Different Modes
O-27 is based on the control of circuit boards; keep strictly printing quality, the powerful support of the systems guarantee the hi-speed printing. The speed under printing modes is different:
High Quality Materials, High Standard Accessories
All-steel manufacturing, every detail reflects our sincerity. Cooperate with international brand like THK,IGUS, which lay a foundation for stability and durability.
APPLICATION
FACTORY SHOW
OUR SERVICE
24-Hour Online Service
Pre-Sales Service After-Sales Service
*Inquiry and consulting support * Training how to install the machine and training use
*Sample testing support * Engineers availa to service machine overseas
* View our factory * One year warranty
PACKING & DELIVERY
| Packing | |
Size | 2160mm(L)*4230mm(W)*1400mm(H) | |
Weight | 1200kg | |
Details | on wooden |
