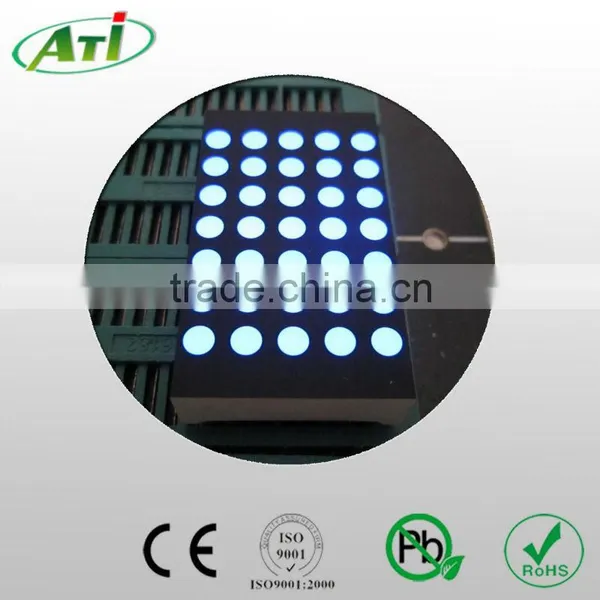

0.7 Inch 5*7 Dot Matrix Display, Blue Dot Matrix

Name: 0.7 Inch 5*7 Dot Matrix Display, Blue Dot Matrix
Brand: ATI dot matrix display
SKU: 132242287

US$ 1.4 - 1.9 MOQ: 1000 Pieces

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

ATI dot matrix display

Model Number:

SZ6107057

ATI Electronics Technology Limited (Wuxi)

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai; Ningbo; Shenzhen and other Mainland ports

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name ATI dot matrix display

Model Number SZ6107057

Usage Indoor

Tube Chip Color Blue

Display Function Graphics

Pixels Other, 1.9mm

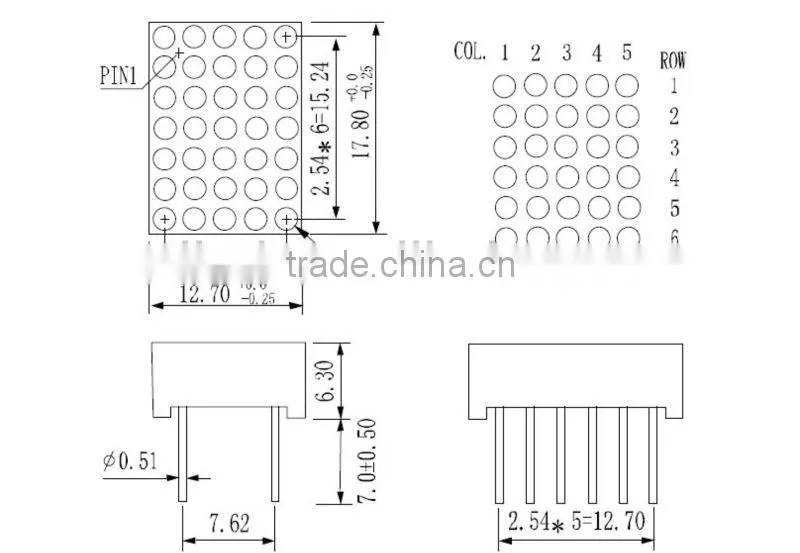

Screen Dimension 12.7 X 17.8 X 6.3mm

Product Description

ATI DOT MATRIX

Features—Our Products Stand out of Others

1.Over 12 years producing experience as the vendor of Samsung,Haier,LG etc.

2.Big scale of producing makes sure that your purchase cost is lower.

3.Advanced production line guarantees stable quality and long life span.

4.High luminous intensity output, low voltage and current operating, ultra-low power consumption.

5.Solid-state LED Epistar chip based, easy mounting on printed circuit board and sockets.

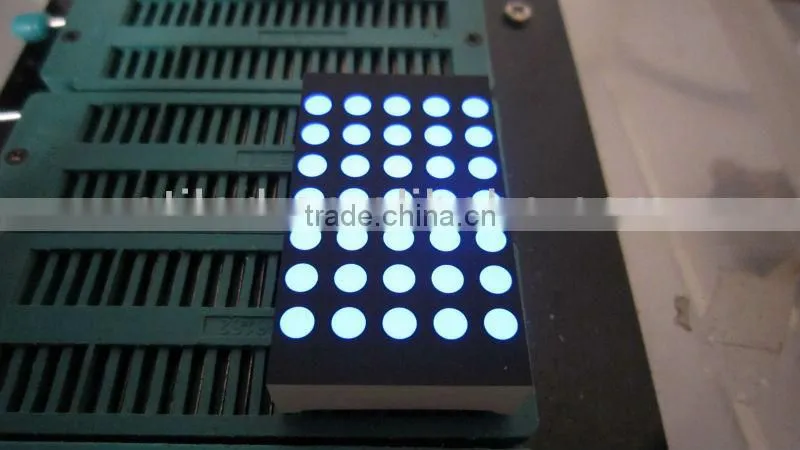

Product Exhibition—Show the Details for You

ELECTRICAL/OPTICAL CHARACTERISTICS AT Ta=25°C:

PARAMETER	SYMBOL	TEST CONDITION	Color	MIN	TYP	MAX	UNIT
Forward Voltage ,Per Segment	VF	IF=20mA	Blue	3.0	3.2	3.5	V
Reverse Current , Per Segment	IR	VR=5V	Blue			50	μA
Peak Emission Wavelength	λp	IF=20mA	Blue	460	462.5	465	nm
Luminous Intensity Per Segment	IV	IF=20mA	Blue	70	80	100	mcd
