Factory supply cob led 2mm tower white 4000k led
USD $0.1 - $70
/ Piece
100 Pieces(Min.Order)
- 50000 Piece / Pieces per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
12V-COB-3000K-01M Inspired LED LED Lighting Bars and Strips White 3000K, 12 volt 1 Meter Strip
-
Flexible COB LED Strip Light Dv12v 420leds/m Color Pink
-
Dv12v 420leds/m Pink Cob Led Strip Flexible COB LED Strip Light
-
Cob Yellow Light Strip Led Led Chip Customize Logo DC24v 12v flexible yellow color led cob strip blue cob led strip light
-
30*40MM 20w/30w/40w/50w/60w/70w cob led light high brightness led chip cob
-
E27 12W LED Plant Grow Light Bulb for Flowering Plant Vegetables, 12 LED Energy Saving Spotlight Downlight Plant Light Bulb
Product Details
| Model Number: | ATI-30SCW10-XY | Chip Material: | InGaN | Emitting Color: | Other, WHITE |
| Luminous Intensity: | 2100 | Luminous Flux(lm): | 110-120lm/W | Optical Attenuation(%): | 3 |
| Power: | Other, 1-500W | Power Dissipation: | 1 | Color Rendering Index(Ra): | 80 |
| Color Temperature: | 2500-8000K | Operating Temperature(℃): | -30, 80 | Storage Temperature(℃): | -30, 80 |
| Place of Origin: | Jiangsu, China | Brand Name: | ATI, ATI-cob led chip | Certification: | CE, CE |
Product Description
2mm tower white 4000k led
30w COB LED parameters:
Parameter | Symbol | Conditions | Min. | Typ | Max | Units | Remark |
Luminous flux |
LM
| IF=900mA | 2000 |
| 2100 | lm | 4500-10000K |
1900 |
| 2000 | 3500-4500K | ||||
1850 |
| 1950 | 2700-3500K | ||||
Color Temperature | Tc | IF=900mA | 4500 | — | 10000 | K | Ra>75 |
3500 | — | 4500 | Ra>75 | ||||
2700 | — | 3500 | Ra>65 | ||||
Forward Voltage | VF | IF=900mA | 30.0 | — | 34.0 | V | — |
Thermal Resistance Junction To Board | RJ-B | IF=900mA | — | 10 | — | °C/W | — |
Reverse Current | IR | VR=5V | — | — | 10 | μA | — |
Viewing Angle | 2θ1/2 | IF=900mA | — | 120 | — | Deg | — |

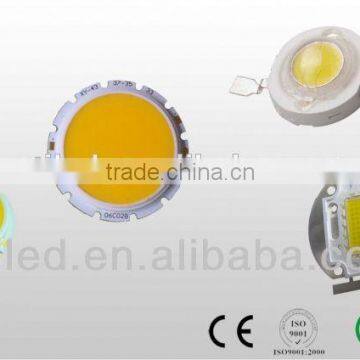

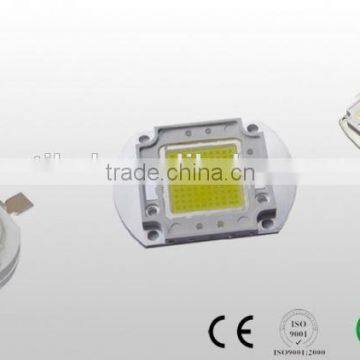

COB LED Series ------------1W COB LED to 500W COB LED

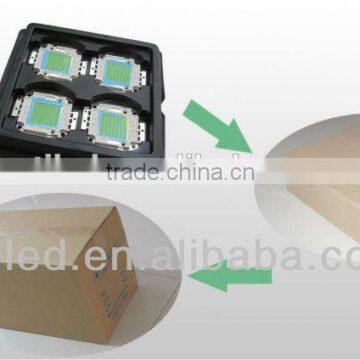

COB LED package-We care what you care
COB LED Production Line----- Reliable quality assurance

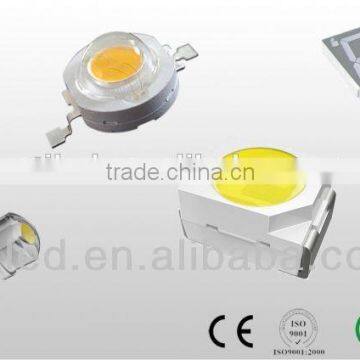

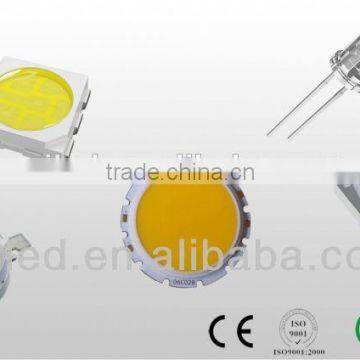

ATI LEDs: COB LED, SMD LED, DIP LED and seven Segment LED display

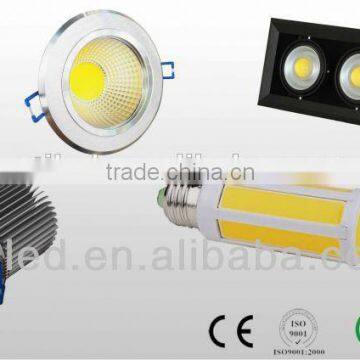

COB LED application: COB LED downlight,COB LED ceiling light,COB LED flood light and so on.
COB Certifications ------ You choose five star company.
More information, You can easily contact us.
