High Quality Level Cob Led 2x3x4 Dip Rectangle Led
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Factory Supply COB Power Led Square 90 Degree Rectangle Led
-
Good Quality COB Power Led Square 2x3x4 Diode Led
-
Fast Delivery COB Power Led 5mm Led Flashlight With Line
-
High Quality Level Cob Led 5mm Red Traffic Light Dip Led
-
Fast Delivery Cob Led Working Signal 5mm Lamp Led
-
Good Quality COB Power Led 5mm Round Red Tail Light Led
Product Details
| Model Number | ATI-30SCW10-XY | Chip Material | InGaN | |
| Emitting Color | Other, WHITE | Luminous Intensity | 2100 | |
| Luminous Flux(lm) | 110-120lm/W | Optical Attenuation(%) | 3 | |
| Power | Other, 1-500W | Power Dissipation | 1 | |
| Color Rendering Index(Ra) | 80 | Color Temperature | 2500-8000K | |
| Operating Temperature(℃) | -30, 80 | Storage Temperature(℃) | -30, 80 | |
| Place of Origin | Jiangsu, China | Brand Name | ATI, ATI-cob led chip | |
| Certification | CE, CE |
Product Description
2x3x4 dip rectangle led
30w COB LED parameters:
Parameter | Symbol | Conditions | Min. | Typ | Max | Units | Remark |
Luminous flux |
LM
| IF=900mA | 2000 |
| 2100 | lm | 4500-10000K |
1900 |
| 2000 | 3500-4500K | ||||
1850 |
| 1950 | 2700-3500K | ||||
Color Temperature | Tc | IF=900mA | 4500 | — | 10000 | K | Ra>75 |
3500 | — | 4500 | Ra>75 | ||||
2700 | — | 3500 | Ra>65 | ||||
Forward Voltage | VF | IF=900mA | 30.0 | — | 34.0 | V | — |
Thermal Resistance Junction To Board | RJ-B | IF=900mA | — | 10 | — | °C/W | — |
Reverse Current | IR | VR=5V | — | — | 10 | μA | — |
Viewing Angle | 2θ1/2 | IF=900mA | — | 120 | — | Deg | — |
COB LED Series ------------1W COB LED to 500W COB LED

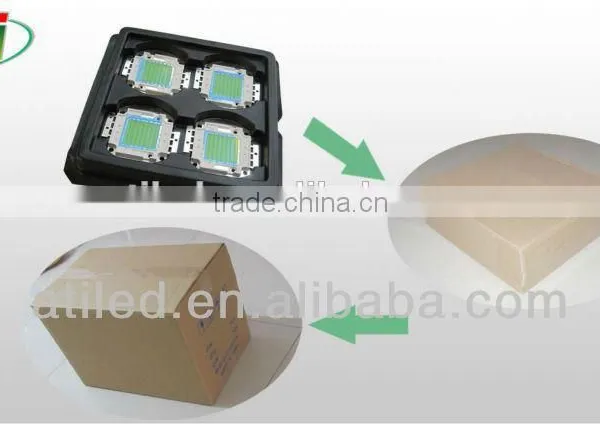

COB LED package-We care what you care
COB LED Production Line----- Reliable quality assurance

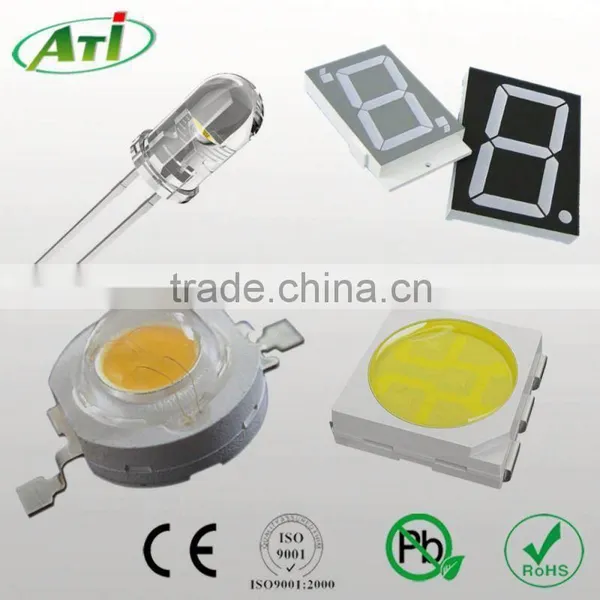

ATI LEDs: COB LED, SMD LED, DIP LED and seven Segment LED display
COB LED application: COB LED downlight,COB LED ceiling light,COB LED flood light and so on.
COB Certifications ------ You choose five star company.
More information, You can easily contact us.
