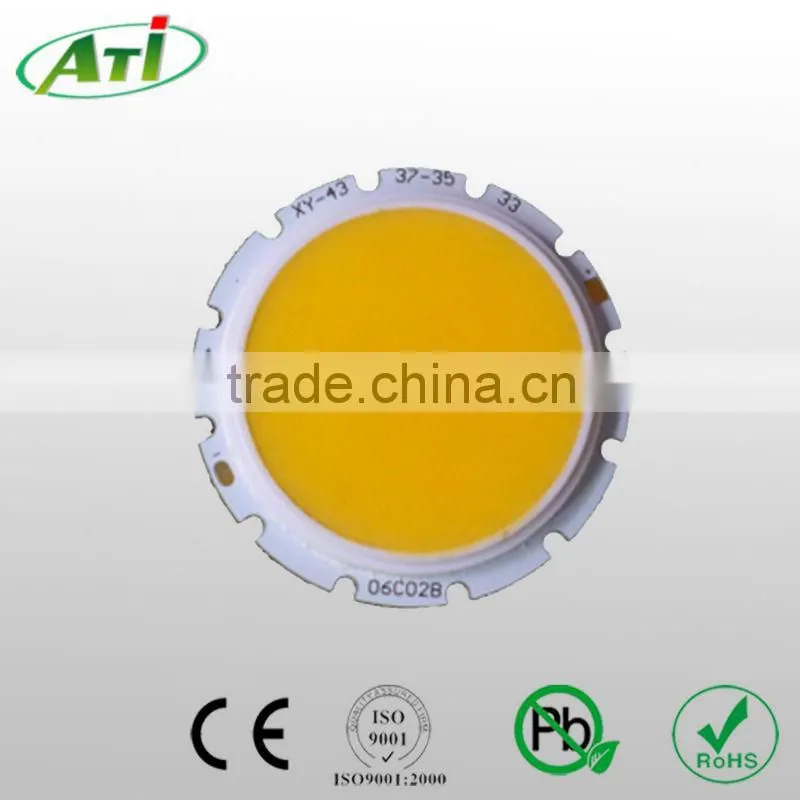

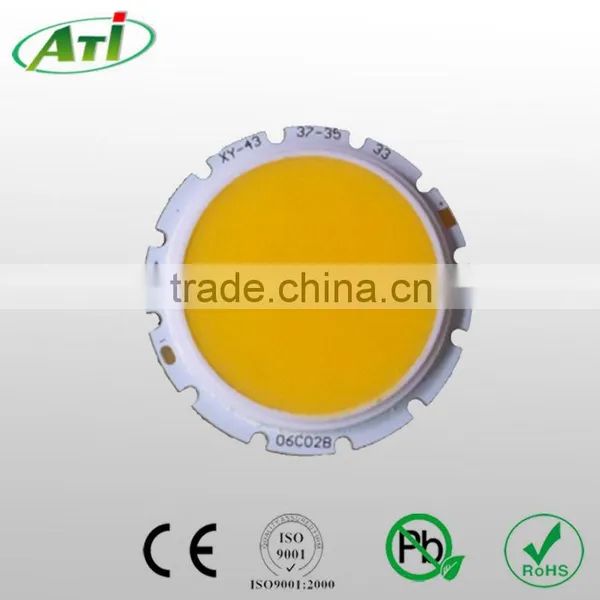

ATI COB LED 10W White
Features—Our Products Stand out of Others
1.Over 12 years LED-producing experience.
2.Big scale of producing makes sure that your purchase cost is lower but with higher quality.
3.Advanced production line guarantees stable quality and longer life span.
4.Use the most mature international well-known LED chip from Epistar as the light source, which can ensure the LED brightness and long lifetime, also can reduce the light decay.

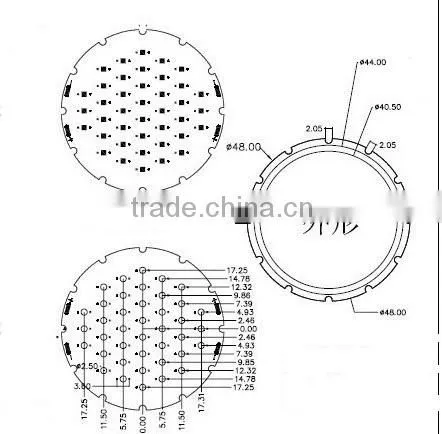

Product Exhibition—Show the Details for You
Parameter |
Symbol |
Conditions |
Min. |
Typ |
Max |
Units |
Remark |
Luminous Efficiency |
LM
|
IF=300mA |
90 |
|
100 |
lm/w |
0.5W Epistar chip |
100 |
|
110 |
0.5W Epistar chip |
||||
110 |
|
120 |
0.5W Epistar chip |
||||
Color Temperature |
Tc |
IF=300mA |
2800 |
— |
3500 |
K |
Ra>75 |
4500 |
— |
5500 |
Ra>75 |
||||
6000 |
— |
7000 |
Ra>75 |
||||
Forward Voltage |
VF |
IF=300mA |
30 |
— |
36 |
V |
— |
Thermal Resistance Junction To Board |
RJ-B |
IF=300mA |
— |
10 |
— |
°C/W |
— |
Reverse Current |
IR |
VR=5V |
— |
— |
10 |
μA |
— |
Viewing Angle |
2θ1/2 |
IF=300mA |
— |
120 |
— |
Deg |
— |

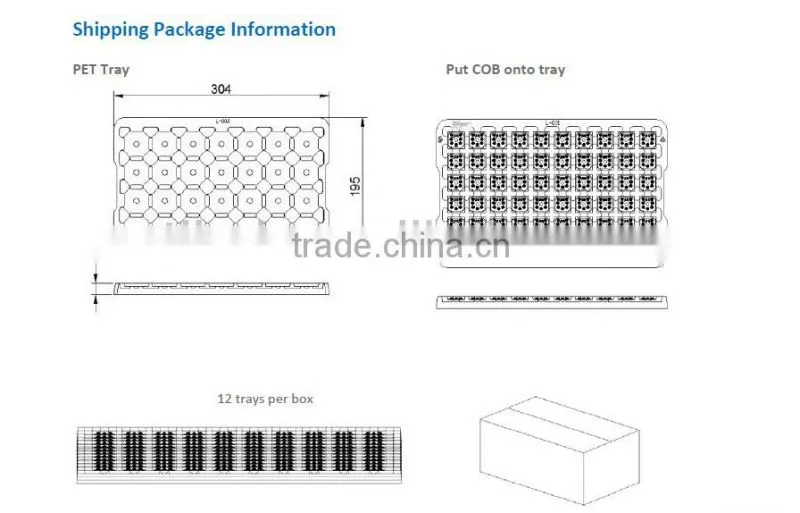

Perfect Product Package—We Care about Your Goods and You
COB LED and High Power LED Series
Production Line----- Reliable quality assurance
Certifications ------ You choose five star company
More information------ You could easily contact us
