steel fence picket roll forming machine

We do Best, About CHBEST factory

Cangzhou Best Machinery Co,.LTD produce the best quality and international standard color steel forming machine and speical cold roll forming machine.

We Choose the best material and components, and adopting Shanghai’s technology, with 20 year’s experience.

Now the machine working speed can reach 50m/min

Our main products: CZU purlin roll forming machine, deck floor roll forming machine,door series roll forming machine, cable tray roll forming machine, roof and wall roll forming machine, light steel roll forming machine, water channel roll forming machine, glazed tile /ridge cap roll forming machine, highway guardrail roll forming machine, sandwich panel roll forming line, rack and fence roll forming machine and auxiliary equipments.

We do exquisite:

Techincal description:

A.Decoiler

Capability: 1.5Ton

Bound of expand &fight: 450mm—600mm

Way of feeding: manual

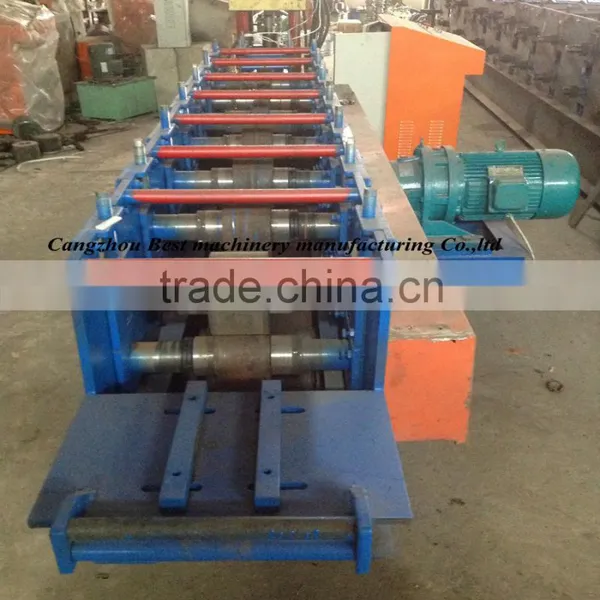

B.Roll forming main machine

1: Coil width: 188mm   effective width: 118mm

2: working speed: 8m—15m/min (exclude cutting)

3: roll station: 14stations

4: material of roller: 45# forge steel, polished and coated with chrome

5:material of main shaft: 45# forge steel and quenched hardness 58-62   diameter roller: 60mm

6: main power: 3kw

7: forming thickness: 0.5mm—1.0mm

8: Transmission: chain(One inch)

9: structure of frame: H beam steel plate

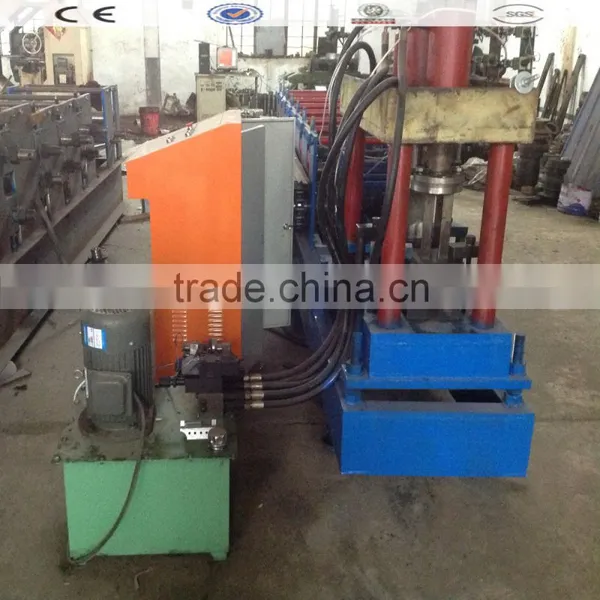

C Cutting device:

 Cutting: Automatic Tracking Cutter

 Cutting type: hydraulic cutting

 Cutting after forming: Cut the sheet after roll forming to required length

 Material of blade: CR12with heat treatment

 Motor power: 4kw

 Length measuring: Automatic length measuring

 Use imported high grade alloy blade, high quality & precision cutting

D Output table

 It it simple type to collect the finshed product.

 Lenght: 6m

E Control panel

PLC: Panasonic,JAPAN

Voltage: 380 V, 50 Hz, 3Phase

Automatic length measurement:

Automatic quantity measurement

Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achievedLength inaccuracy can be amended easily.

Control panel: touch screen

Unit of length: millimeter (switched on the control panel)

We do specialized:

We have professional team to make different kinds of roll forming machines for our customers, from designing, processing, assembling, debugging,delivery.

Guarantee period: 18months free service/ pay service all the machine life
Installation and training:
If buyers visit our factory and check the machine, we will teach you how to install and use themachine, and also train your workers/technician face to face.
Without visiting,we will send you user manual and video to teach you to install and operate.
If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.

We do you like:

1.We are factory and  Shanghai's technology ,offer best quality machines

2. Customers Design ,Size,Color&Logo are accepted.

3. With20 years professional manufacture experience

4. Prompt Delivery&Competitive Price

5. Main markets:Middle East, Europe, North America, Africa,Southeast Asia.

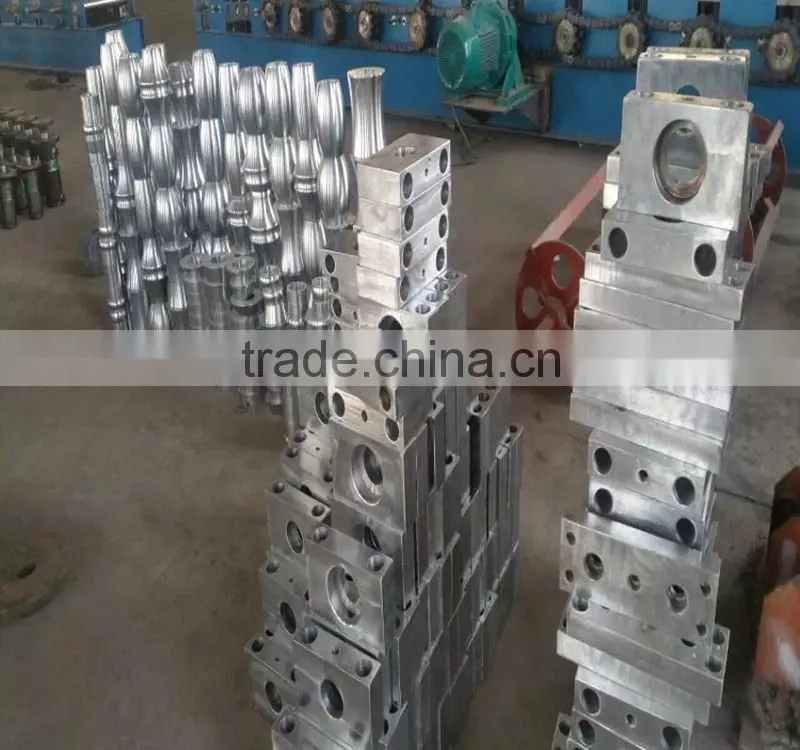

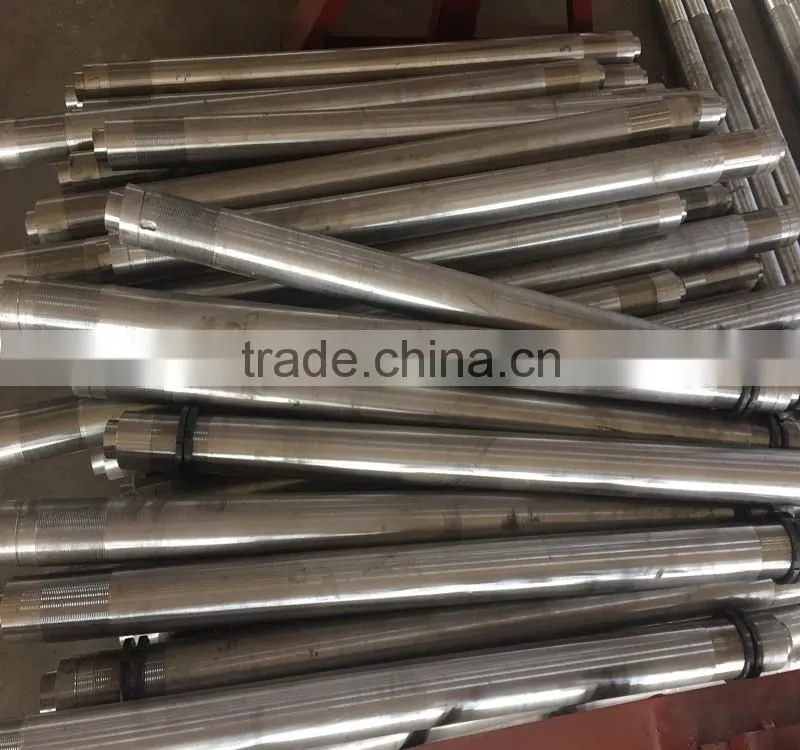

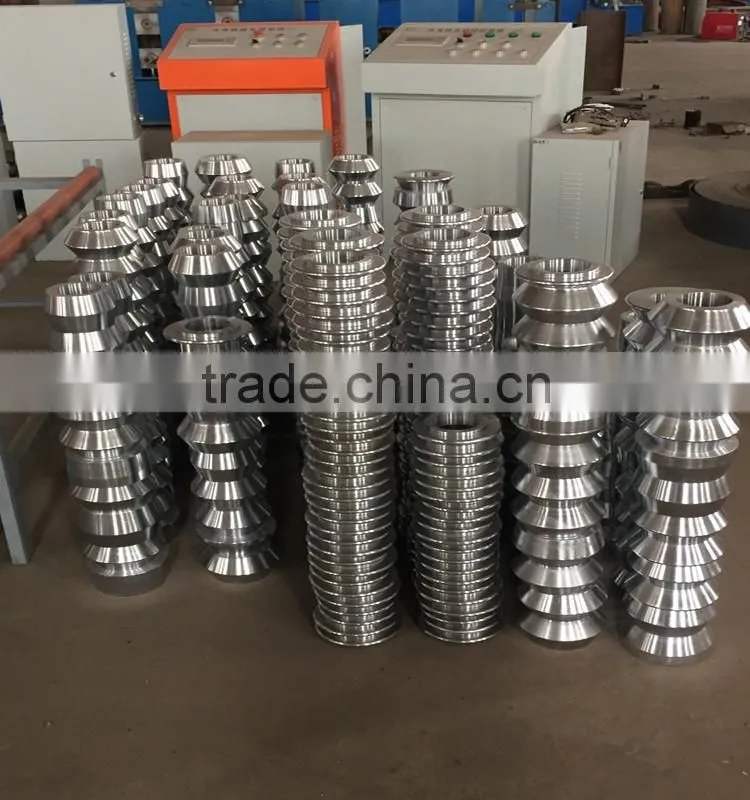

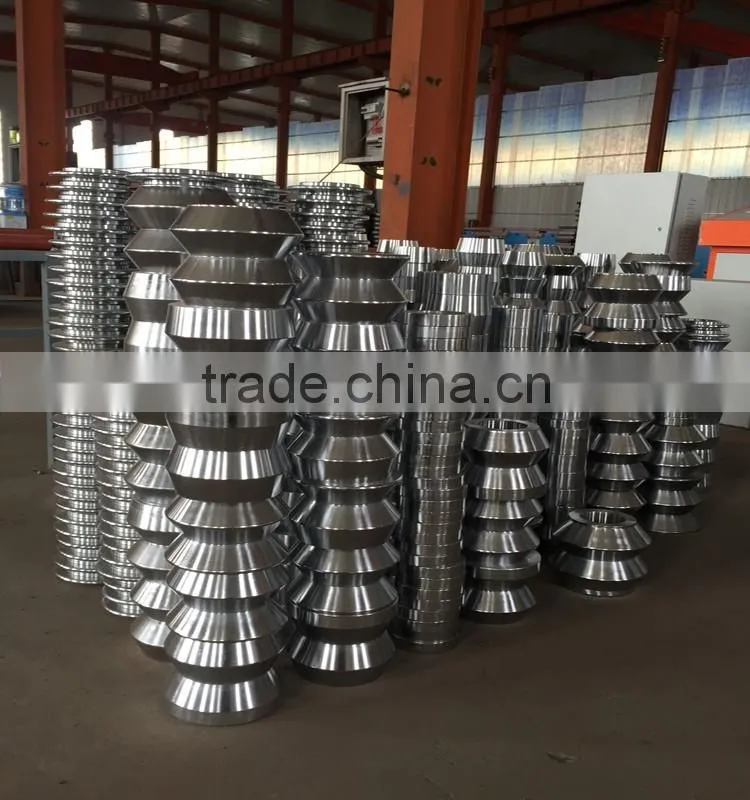

 The best and beautiful rollers and shafts, the best material:

We do standard:machine loading

We do you care:

WHY CHOOES CHBEST COMPANY

1) Q: Do you have after sales support?

 A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.

2)Q: How do your machines compare with other big companies in this market?

 A: We are up to date with the latest technology and improve our machines accordingly

3) Q: Will you deliver the right goods as ordered? How can I trust you?

 A: Yes, we will. The core of our company culture is honesty and credit. AOFA is ALIBAB’s Gold supplier with BV assessment and CE certificate.

4)Q:What can you do if the machine broken?

A:Our machine's warranty period is 18months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.

5) Q:Can you be responsible for transport?

A:Yes,please tell me the destination port or address.we have rich experience in transport.

6) Q:Can you supply the raw materials?

A:Yes,we can supply the galvanized steel coil,galvalume steel coil,color steel coil,and aluminum coil.

Hope we could establish win-win business relations in the soon future!
