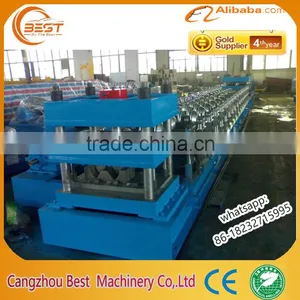

Highway Guardrail road making machine
- 10 Set / Sets per Month
- tianjin xingang
- T/T
Product Details
Condition: | New | Type: | Tile Forming Machine | Tile Type: | Other, GI/PPGI/AL |
Use: | Other, building | Production Capacity: | 8-12m/min | Place of Origin: | Hebei, China |
Brand Name: | CHBEST | Model Number: | CHBEST-FC3 | Power(W): | 11kw |
Voltage: | 380V 50Hz 3phases | Dimension(L*W*H): | 11m*1.4m*1.4m | Weight: | 10T |
Certification: | SGS | Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
naked for 40 feet container
Product Description

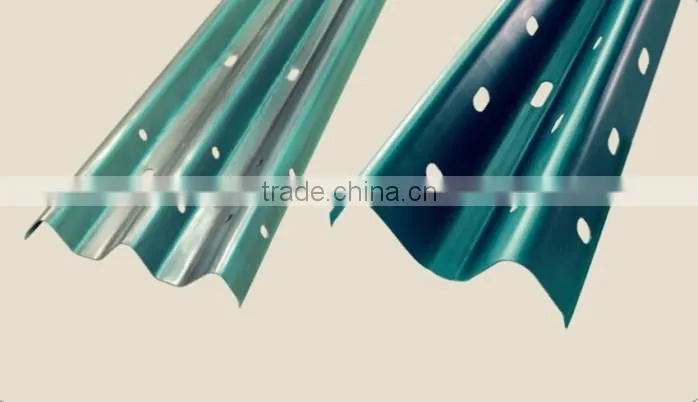

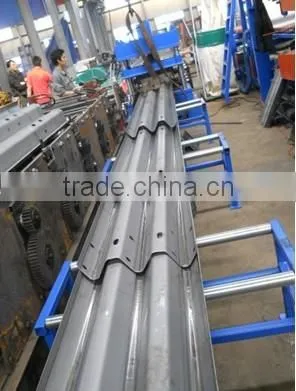

Highway Guardrail road making machine
We do Best, About CHBEST factory
Cangzhou Best Machinery Co,.LTD produce all kinds of roll forming machines,We Choose the best material and components, and adopting Shanghai’s technology, with 20 year’s experience.
Now the machine working speed can reach 50m/min
Our main products: CZU purlin roll forming machine, deck floor roll forming machine,door series roll forming machine, cable tray roll forming machine, roof and wall roll forming machine, light steel roll forming machine, water channel roll forming machine, glazed tile /ridge cap roll forming machine, highway guardrail roll forming machine, sandwich panel roll forming line, rack and fence roll forming machine and auxiliary equipments.
We do exquisite:
Working flow:Decoiler-----feeding-----guiding----- leveling ------roll forming--------punching------ cutting----output table
Machine components:
No. | Name | Qty |
1. | De-coiler | 1 Set |
2. | Feeding and Guiding Device | 1 Set |
3. | Roll Forming Machine | 1 Set |
4. | Punching device | 1 Set |
5. | Hydraulic Cutting Device | 1 Set |
6. | PLC Control Box | 1 Set |
7. | Output table | 1 Set |
Technical description:
A: Roll forming main machine
1.Material thickness:1-3mm
2: Working speed: 12m/min
3: Roll station: 11stations
4: Material of roller: 45# steel polished and coated with chrome HRC55-60°
5: Material of main shaft: high grade No.45 steel after treatment
6.Diameter roller:60mm
7: Main power: 7.5kw
8: Transmission: 1''chain
B: Punching system
1: Base on customer profile this machine need one punching unit
2: Machine will adopt hydraulic pre-punching
3: Punching mould material:CR12with heat treatment
4: Punching pressure: 20Mpa
5: Punching distance is controlled by PLC control
C:Control system
Type: PLC Frequency Control System with touch screen
PLC Brand: Japan Panasonic
Encoder Brand: Omron
Length Error:±2mm
We do specialized:
We have professional team to make different kinds of roll forming machines for our customers, from designing, processing, assembling, debugging,delivery.
Guarantee period: 18months free service/ pay service all the machine life
Installation and training:
If buyers visit our factory and check the machine, we will teach you how to install and use themachine, and also train your workers/technician face to face.
Without visiting,we will send you user manual and video to teach you to install and operate.
If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.
We do you like:
1.We are factory ,adopt Shanghai's technology , technical personnel has 20 year's experience,offer best quality machines
2. Customers Design ,Size,Color&Logo are accepted.
3. With20 years professional manufacture experience
4. Prompt Delivery&Competitive Price
5. Main markets:Middle East, Europe, North America, Africa,Southeast Asia.
We do standard:machine loading
We do you care:
WHY CHOOES CHBEST COMPANY
1) Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.
2)Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly
3) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. AOFA is ALIBAB’s Gold supplier with BV assessment and CE certificate.
4)Q:What can you do if the machine broken?
A:Our machine's warranty period is 18months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.
5) Q:Can you be responsible for transport?
A:Yes,please tell me the destination port or address.we have rich experience in transport.
6) Q:Can you supply the raw materials?
A:Yes,we can supply the galvanized steel coil,galvalume steel coil,color steel coil,and aluminum coil.
Hope we could establish win-win business relations in the soon future!
We produce machines according to your different profile drawings:
We do Together, dear Customer, you are CHBEST 's friends. Meeting you, serving all of you, Enjoying with you.
Contact us
Facebook:jasonzhang
whatsapp:8618232715995
skype:jasonzhang119
wechat:zjb4980515
If you arrive at Cangzhou, i can go to Cangzhou west high speed rail station or your hotel to pick you up.
Company Profile
Cangzhou Best machinery manufacturing Co., Ltd. is a professional manufacturer engaged in high quality cold roll forming machine, my professional engineer who engaged in cold roll forming machine design for more than 20 years, has a wealth of design concept
Specialized in the production of C/Z/U purlin roll forming machine, deck floor roll forming machine, door series roll forming machine, cable tray roll forming machine, roof/wall panel roll forming machine, light steel roll forming machine, K-span roll forming machine, water channel roll forming machine, glazed tile/ridge cap roll forming machine, highway guardrail roll forming machine, sandwich panel production line, rack/fence roll forming machine ,slitting machine, bending and cutting machine, some auxiliary equipment.
Our advantage: We can design and manufacture according to customer's special type machine or special drawing list. Ensure the best quality.
We provide oversea after-sales service, dispatch our engineer to customer's factory for installation and training
