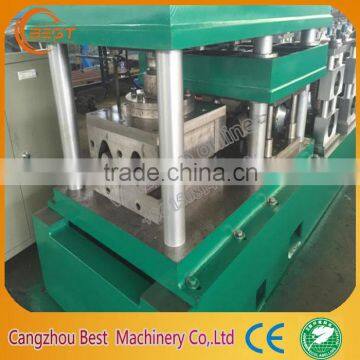

Guardrail Cutting Machinery Suppliers And Manufacturers
Working flow:
Decoiler------guiding------leveling-----punching--------roll forming-----cut to length-----output table
Machine components:
De-coiler------------------------------------------1set
Forming machine--------------------------------1set
Cutting device -----------------------------------1set
PLC control box ---------------------------------1set
Hydraulic pump station-------------------------1set
output table-----------------------1set
Techical description:
1)Decoiler
Weight capacity of decoiler : 5.0T
Inner diameter:≤508mm
Outer diameter:≤3000mm
2)leveling device
3)Forming Device
1 |
Material thickness |
1-4mm |
2 |
Feeding width |
500mm(acccodring profile drawing ) |
3 |
Effective width |
310mm(acccodring profile drawing) |
4 |
Forming Steps |
18steps |
5 |
Line Speed |
8 to 12m/min(adjustable) |
6 |
Stand |
Independent stand structure (raft structure) |
7 |
Drive |
Independent motor and moved by gear box |
8 |
Material of Roller |
40Cr, HRC45-55 |
9 |
Shaft Diameter |
80mm |
10 |
Main Motor Power |
About 22KW |
11 |
Voltage |
380V/50HZ/Three Phase |
4) Hydraulic & Cutting
Cutting material: Cr12 ,HRC58-62
Hydraulic motor power: 18.5KW
Tolerance:±2mm
Valve: adopt Italy Atos
5)PLC Control system
Function:control the whole line manually and automatically
Structure:MITSUBISHI PLC control, human and machine screen
Marks: Main Application: floor decking
1.show how to use the machine face to face
2.The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD100 for engineer.
3.During this guarantee period, spare parts are supplied for free except for damage by human being. If the malfunctions are caused by stuff incorrect operations, spare parts supplied at cost price.
4.We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.
Contact me by WHAT'S APP:0086-15081471140 or send email to lily20130102 .Your satisfaction and recognition is the goal of our efforts!
