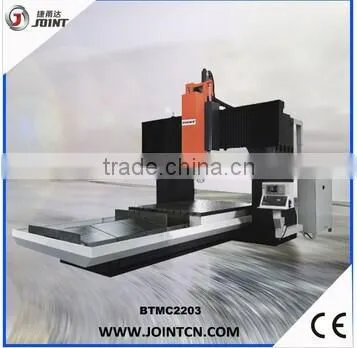

Dragon-Frame Machine Center BTMC-2203

Name: Dragon-Frame Machine Center BTMC-2203
Brand: JOINT
SKU: 132195201

Dragon-Frame Machine Center BTMC-2203 thumbnail-1

Dragon-Frame Machine Center BTMC-2203 photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Type:

Vertical

Place of Origin:

Guangdong, China

Contact Supplier Request Quote Chat Now

Shenzhen Joint Industry Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Vertical

Place of Origin Guangdong, China

Brand Name JOINT

Model Number BTMC-2203

Dimension(L*W*H) 8700*4300*5100mm

Weight 36500KGS

Certification CE

Warranty 1 year

Specifications

strengthened cutting with good quality
fit for large mould and part processing
dragon frame type machine body, optional head.

Specifications

Fanuc /Mitsubishi/Siemens Control system
BT40 Spindle taper
7.5kw Spindle motor
12000rpm Spindle rotation speed

Strengthened cutting large mould dragon frame and double granty machining centre

Strengthened cutting ,best choice for large mould and part processing

1, Fit for car mould ,engine mould and large screen and other large precise part processing .

2.Dragon frame type machine body, gear head is optional

3.Super high rigid pin roller linear way, embodies the heavy cut rigidity and rapid feed feature

4.Module design and serials products could meet with all kinds of requirement,

Model	BTMC-1302	BTMC-1502	BTMC-2203	BTMC-2204	BTMC-2503	BTMC-2505
Table size	2000*1000	2100*1200	3000*1800	4000*1800	3000*2000	5000*2300
Longitude X travel	2200	2000	3000	4000	3000	5000
Crossward Y travel	1300	1650	2200	2200	2700	2700
Vertical Z travel	800	800	1000	1000	1000	1000
Distance between spindle and table	120-920	175*975	250-1250	250-1250	280-1280	260-1260
Spindle rotation speed	6000	6000	6000	6000	6000	6000
Spindle Taper	BT50	BT50	BT50	BT50	BT50	BT50
Spindle Motor	15/18.5	22	22	22	30	30
Rapid feed (X)	12	12	12	12	12	12
Rapid feed (Y)	15	12	12	12	12	12
Rapid feed (Z)	15	12	12	12	12	12
Cutting feed	8	8	8	8	8	8
Positioning accuracy	0.01	0.01	0.01	0.01	0.01	0.01
Min set moving unit	0.001	0.001	0.001	0.001	0.001	0.001
Dimension	650030004000	720037004300	870043005100	1060043005100	920050004800	1300050004800
Net weight	15000	24000	36500	41500	43500	57000
Max load of table	3000	3000	6000	10000	10000	15000
X axis travel of the other modles	1325/2500 1303/3000 1335/3500	1503/3000 1504/4000	2202/2000	2205/5000 2206/6000	2504/4000	2506/6000

Accessories:

1.Standard accessoires:

Control system

Electronic hand wheel

Cover

Auto lubrication of slide way

Coolant system

Operation manual of machine

Operation manual of control system

Cutting fluid and filter system

Stainless steel covers of slide way

Alarming light

Hammer balance

Tool and toolbox

2.Optional accessories:

Milling chuck and tool unlock

Arm type or umbrella type tool magazine

Auto chip conveyor

Oil coolant

The fourth axis NC dividing head or rotary table

Heat exchanger

After-sales service :

warranty is a year , parts are free of charge to be offered during this period ,oversea service need to charged extra in and out of warranty

1.Research and Development team:

We have a large group of Research and Development team , they own the professional theory knowledge, special technology skills and rich experience in the technical research field

2.Workshop:

Our company builds modern production lines:CNC Milling Machine production line,Vertical Machine Center production line,Gantry Type Machine Center production line,Milling Machine production line,Surface Grinding Machine production line,EDM production line etc.

3.Certificate and Honour:

1.8 Intellectual property rights and 5 the patents

2.The self-owned brands of JOINT,NC-JYD have become the famous and high-quality mark in Chinese machinery field.

3.From 2004 to 2007,we have been granted with “Top 100 Metal Cutting Machine Tool Manufacturers” in China.

4.In 2011,we have been granted as” National Grade HI-Tech Enterprise”.

5.We have introduced ISO9001:2008 in 2009.

6.The turret Vertical milling machine,NC knee type milling machine and Vertical machine center and Surface grinding machine has obtained CE certificate notified by CCQS.
