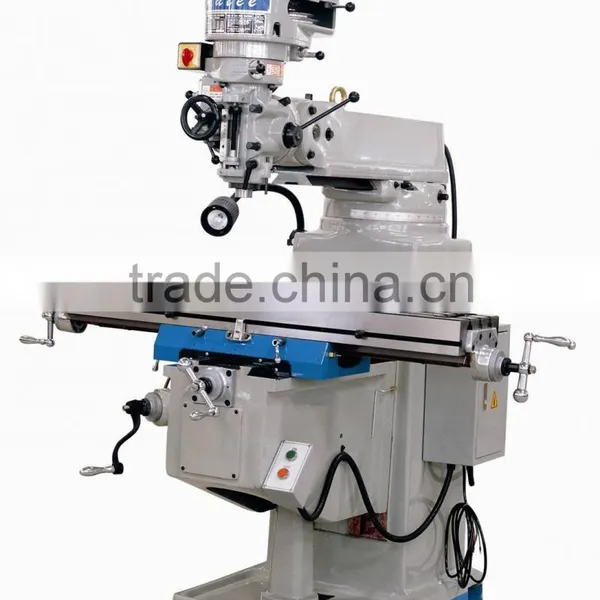

Help CenterVertica Milling Machine
Related Products
-
Vertica Milling MachineNegotiableMOQ: 1 Set -
0.002mm Tolerance Taiwan Imported Milling Head Milling MachineUS$ 4,900 - 5,300MOQ: 1 Set
-
Taiwan Long Time Use Milling MachineUS$ 4,200 - 4,540MOQ: 1 Set
-
Taiwan Imported Milling Head Accuracy CE Quality Milling Machine 4VAUS$ 4,850 - 4,990MOQ: 1 Set
-
CE Quality Taiwan Milling Head Milling Machine 6VH-BCNegotiableMOQ: 1 Set
Specifications
1.Table size 1270*254mm2.Taiwan parts milling head
3.NSK P4 Spindle bearing
4.Variable and Inverter speed is available
Specifications:
Twice precisely scraping
Taiwan original milling head,NSK P4 spindle bearing
Spindle tolerance 0.002mm
Variable milling head
For electric parts, mould and hole, slot and frame processing
Twice precisely scraping could assure the quality of processing
Fit for boring, milling, drilling and boring, tolerance is 0.005-0.012mm
Taiwan original milling head, NSK P4 spindle bearing
Spindle tolerance 0.002mm
Parallel value between tables movement and table: X axis 0.015mm, Middle 0.01mm, Y axis 0.01mm
available speed
Table size: 1270*254*90mm
Travel X: 900mm
Travel Y: 395mm
Travel Z: 350mm
Travel of Spindle Quill: 127mm
Max. Distance from the Spindle Nose to Table: 430mm
Spindle Rotation Speed: Step speed 80-5440RPM
Spindle Taper: R8/NT30
Spindle rated Power: 3HP
Title Angle Forward and Backward: ±45°
Left and Right: ±90°
Net wight: 1200KG
Standard accessories:
Oil pump
Working light
Draw bar
Way cover
Operation manual
Tool and toolbox
Optional accessories:
R8 chucks / NT30 chucks
Clamping kits
6" vise
Coolant system
Digital readout
Power feed
After-sales services:
Warranty is a year, we would offer the parts( quality problem) free of charge during this period. Overseas service need to be charged extra.
Photo:
1.Workshop:
Our company builds modern production lines:CNC Milling Machine production line,Vertical Machine Center production line,Gantry Type Machine Center production line,Milling Machine production line,Surface Grinding Machine production line,EDM production line etc.
2.Research and Development team:
We have a large group of Research and Development team , they own the professional theory knowledge, special technology skills and rich experience in the technical research field.
3.Certificate and Honour:
1.8 Intellectual property rights and 5 the patents
2.The self-owned brands of JOINT,NC-JYD have become the famous and high-quality mark in Chinese machinery field.
3.From 2004 to 2007,we have been granted with “Top 100 Metal Cutting Machine Tool Manufacturers” in China.
4.In 2011,we have been granted as "National Grade HI-Tech Enterprise".
5.We have introduced ISO9001:2008 in 2009.
6.The turret Vertical milling machine,NC knee type milling machine and Vertical machine center and Surface grinding machine has obtained CE certificate notified by CCQS.
4.Accessories for Vertical milling macine:
