JOINT Brand High Popularity High Accuracy Multi-cutting EDM ZNC650
Features
1.Best quality cast,time aging;
2.Deep-hole processing without carbon accumulation;
3.Imported sealed ballscrew and electrode head;
4.Japan lineal way and servo motor;
5.Taiwan control system GTEK
Specification:Electric discharge machine ZNC-650
| Model | ZNC-650 |
| Size of oil container | 1650*1100*630mm |
| Table size | 1050*600mm |
| Table travel | 650*550*250mm |
| Electrode head | 400mm |
| Max.distance between electrode head and working table | 850mm |
| Max.loaded of electrode head | 200kgs |
| Max.load of table | 2000kg |
| Dimension | 2000*1710*2360mm |
| Net weight | 2950kgs |
| Filtered container (cubic) | 980L |
| Filtered container (net weight) | 300kgs |
| Model | ZNC MACHINE |
| Control mode & axis No. | NC with close circuit/Single Z axis control |
| Min.setting value. | 0.005(0.001)mm |
| Max.setting value. | 9999.995(9999.9999)mm |
| Coordination system | (INC),(ABS) |
| Screen | 15''TFT |
| Control system | Industrial PC |
| Moving velocity of controller | 0.005mm (Per Unit)*1,*5,*10 |
| Procedure in store | 0-999groups |
| Max.current for processing | 50 75 100 A |
| Input rated power | 5 6 10 A |
| Max.cutting processing speed | 360 560 700 mm²/min |
| Consumption of the electrode head | <0.2% |
| Best surface rough | 0.25μmpa |
| Dimension | 620*860*1850mm |
| Net weight | 210Kg |
Accessories
1.Standard accessories:
Magnet check
Fire extinguisher
Tool and toolbox
Operation manual
2.Optional accessories:
NC shaking head
After-sales services
Warranty is a year, we would offer the parts( quality problem) free of charge during this period. Overseas service need to be charged extra.
Photos

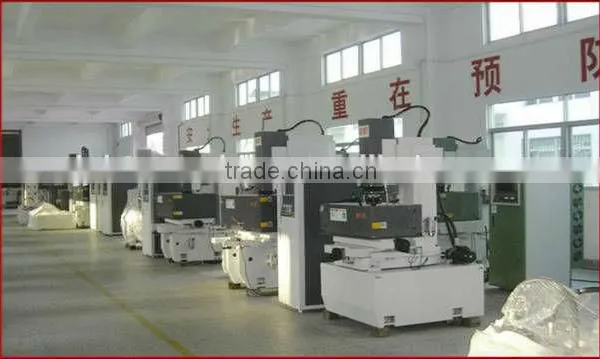

1.Workshop:
Our company builds modern production lines:CNC Milling Machine production line,Vertical Machine Center production line,Gantry Type Machine Center production line,Milling Machine production line,Surface Grinding Machine production line,EDM production line etc.
2.Research and Development team:
We have a large group of Research and Development team , they own the professional theory knowledge, special technology skills and rich experience in the technical research field.
3.Certificate and Honour:
1.8 Intellectual property rights and 5 the patents
2.The self-owned brands of JOINT,NC-JYD have become the famous and high-quality mark in Chinese machinery field.
3.From 2004 to 2007,we have been granted with “Top 100 Metal Cutting Machine Tool Manufacturers” in China.
4.In 2011,we have been granted as” National Grade HI-Tech Enterprise”.
5.We have introduced ISO9001:2008 in 2009.
6.The turret Vertical milling machine,NC knee type milling machine and Vertical machine center and Surface grinding machine has obtained CE certificate notified by CCQS.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-15days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: 30% in advance.and the rest payment should pay before delivery.
Q: How many years have your company established?
A: 20 years, our company built in 1995.
