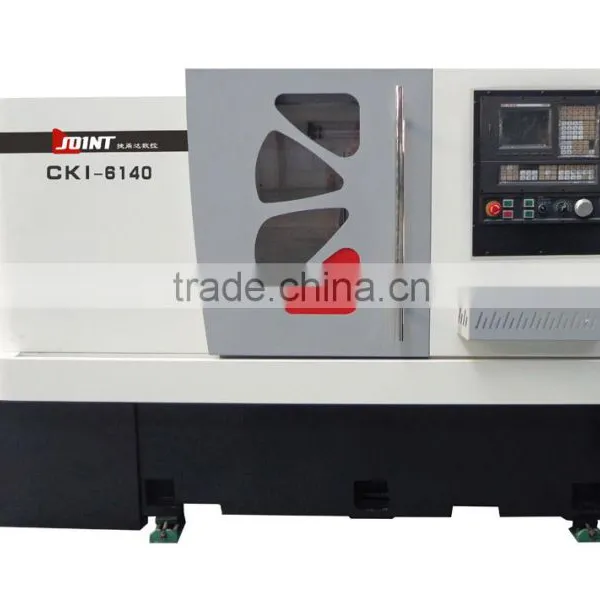

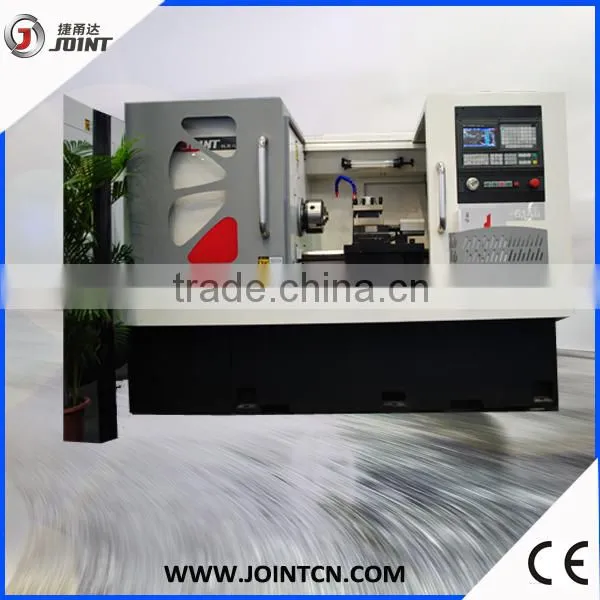

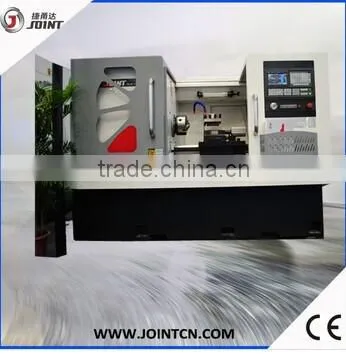

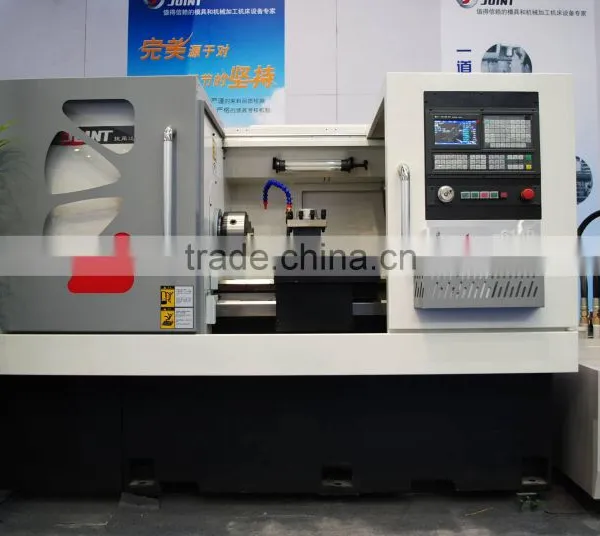

Flat bed type CNC lathe CKI6140Q
Specifications
1.OEM Manufacturer
2.Positioning accuracy 0.005mm/m
3.Spindle taper of front taper MT6
4.Taper of tailstock MT4
Features:
1.OEM Manufacturer.
2.Harded & quenched slideway with Turcite B coated.
3.Imported ball screw.
4.Positioning accuracy 0.005mm.
5.The slide way of the machine processed by ultra-sound audio quenching and fine grinding to assure its good hardness and high rigidity.
6.Automatically lubrication for slide way and leading screw can bring the results following:flexibly operation,low hot deformation,accuracy and stability.
7.Electric four station tools make use of precise gear plate positioning to assure high accuracy for repeat positioning.
8.Double locking mechanism for tail stock.Elastic wheel installed at bottle side to make movement easily.
9.High rigid base structure.
Specification:Flat bed NC lathe CKI6140Q
| Model | CKI6140Q |
| Max swing diameter over bed | 400mm |
| Max swing diameter over carriage | 220mm |
| Max length of workpiece | 1000mm |
| width of guide rail | 320mm |
| Max.Travel of Y axis | 550mm |
| Diameter of spindle hose | 57mm |
| Spindle rotation | 2600rpm |
| Spindle taper of front taper | Metric8 0 /A2 - 6 |
| Max moving speed of X axis | 6m/min |
| Max moving speed of Z axis | 8m/min |
Repeat positioning accuracy |
0.01mm |
Size of squre tool |
20*20mm |
| Power capacity | 10kw/h |
| Dimension(L*W*H) | 2150*1190*1640mm |
| Net weight | 1800kg |
| Taper of tailstock | 60mm |
| Travel of tailstock | 130mm |
| Taper of tailstock | MT4 |
| Chuck size | A6/200 |
Accessories:
1.Standard accessories:
four station tools
coolant system
auto lubrication
working light
operation manual
tool and toolbox
3-jaw chuck
leveling pedestal
2.Optional accessories:
4-jaw chuck
hydraulic chuck
Optional system:
Fanuc system:oi-mate-tc
GSK980TDA
After-sales services:
Warranty is a year, we would offer the parts( quality problem) free of charge during this period. Overseas service need to be charged extra.
Photos:
1.Workshop:
Our company builds modern production lines:CNC Milling Machine production line,Vertical Machine Center production line,Gantry Type Machine Center production line,Milling Machine production line,Surface Grinding Machine production line,EDM production line etc.
2.Research and Development team:
We have a large group of Research and Development team , they own the professional theory knowledge, special technology skills and rich experience in the technical research field.
3.Certificate and Honour:
1.8 Intellectual property rights and 5 the patents
2.The self-owned brands of JOINT,NC-JYD have become the famous and high-quality mark in Chinese machinery field.
3.From 2004 to 2007,we have been granted with “Top 100 Metal Cutting Machine Tool Manufacturers” in China.
4.In 2011,we have been granted as” National Grade HI-Tech Enterprise”.
5.We have introduced ISO9001:2008 in 2009.
6.The turret Vertical milling machine,NC knee type milling machine and Vertical machine center and Surface grinding machine has obtained CE certificate notified by CCQS.
