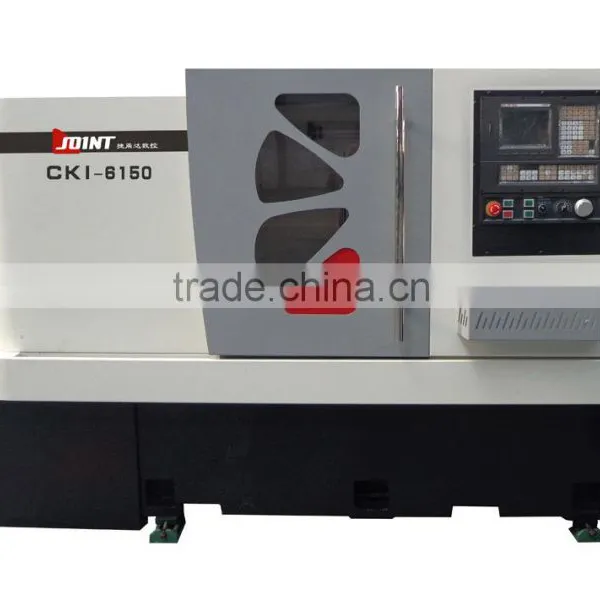

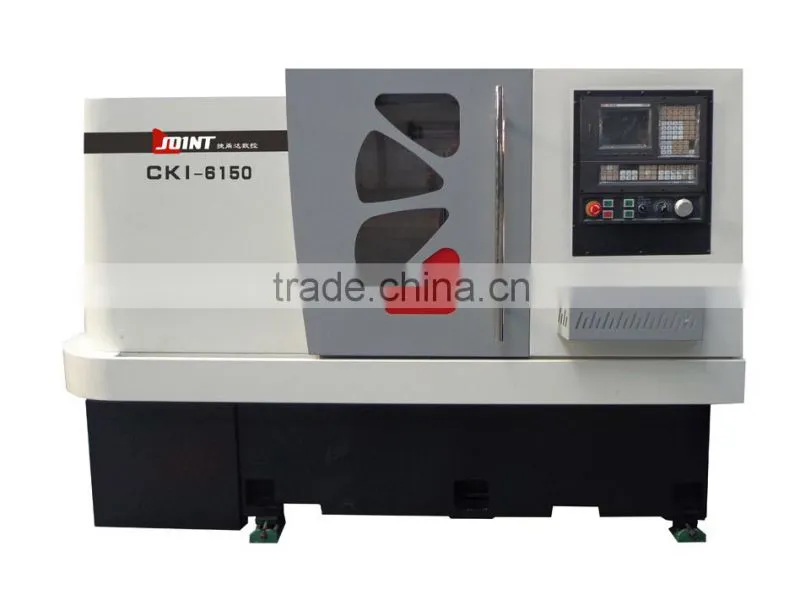

Help CenterFlat Bed Type CNC Lathe CKI6150 With Tool Turret
Related Products
-
Flat Bed Type CNC Lathe CKI6136 With Tool TurretUS$ 11,100 - 11,700MOQ: 1 Set -
Slant Bed Type CNC Lathe HT-45M With Hydraulic SpindleUS$ 23,600 - 24,600MOQ: 1 Set
-
Slant Bed Type CNC Lathe HT-45 With Hydraulic SpindleUS$ 18,400 - 19,200MOQ: 1 Set
-
High Accuracy With Low Vibration Slant Bed Type CNC Lathe HT-35MNegotiableMOQ: 1 Set
-
CKI6180 Flat Bed Type CNC Lathe With Tool TurrentUS$ 26,666 - 30,500MOQ: 1 Set
CNC Lathe
Features:
1. Best rigidity, good performance of anti-vibration
2. Speed of Hydraulic quill type spindle and Hydraulic 3- Jaw chuck spindle could reach to 4000-5000RPM
3. 8 or 10 position tool rest, complicated and precise part processing could be performed in one time, which
coul advance the production efficiency
4. Whole cover, water proof
5. OEM manufacturer
6. CE certificate
Specification: CNC Lathe CKI-6150
| Model | CKI-6150 |
| Max.swing diameter over table | 500mm |
| Max.swing diameter over carriage | 290mm |
| Max. length of workpiece | 800/1300/1800mm |
| Width of guide rail | 390 |
| Spindle rotation speed | 45-1600rpm |
| Mode of chuck | D8/250 |
| Spindle head and taper | C-11/1:20 |
| Diameter of spindle hose | 82mm |
| Max. moving speed of Y/Z axis | 6/8m/min |
| Diameter of sleeve | 75 |
| Spindle motor | 7.5KW |
| Travel of sleeve | 150 |
| Taper of tailslock sleeve | MT5 |
| Positioning accuracy | 0.01mm |
| Distance between centers | 1000mm |
| Variable structure of spindle box | 3grades gear speed |
| Dimension(L*W*H) | 2490*1420*1600mm |
| Net weight | 2300kgs |
Accessories:
After-sales services:
Warranty is a year, we would offer the parts( quality problem) free of charge during this period. Overseas service need to be charged extra.
Photo:
1.Plant:
Our company builds modern production lines:CNC Milling Machine production line,Vertical Machine Center production line,Gantry Type Machine Center production line,Milling Machine production line,Surface Grinding Machine production line,EDM production line etc.
2.Research and Development team:
We have a large group of Research and Development team , they own the professional theory knowledge, special technology skills and rich experience in the technical research field.
3.Certificate and Honour:
1.8 Intellectual property rights and 5 the patents
2.The self-owned brands of JOINT,NC-JYD have become the famous and high-quality mark in Chinese machinery field.
3.From 2004 to 2007,we have been granted with “Top 100 Metal Cutting Machine Tool Manufacturers” in China.
4.In 2011,we have been granted as "National Grade HI-Tech Enterprise".
5.We have introduced ISO9001:2008 in 2009.
6.The turret Vertical milling machine,NC knee type milling machine and Vertical machine center and Surface grinding machine has obtained CE certificate notified by CCQS.
4.Production line:
