Help CenterHigh Precision Cnc Lathe Machine With Control System Process
Related Products
Specifications
1.Max swing diameter over bed :420mm2:Max swing diameter over carriage :230mm
3.Max length of workpiece:750mm

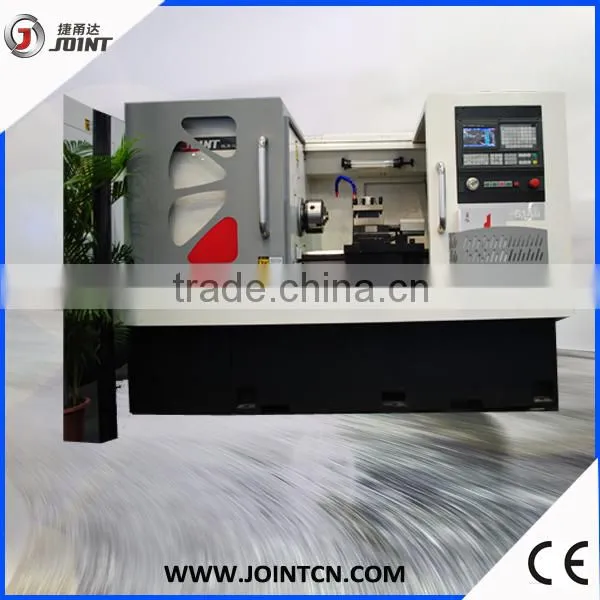

High precision cnc lathe machine with control system process
Features
- The flat bed has been quenched and grinded ,high rigidity
- Central lubrication is being used on ball screw and slide way,heat restoration is less ,accuracy is assured
- Electrical 4 position tool rest is position by precise chuck repeating accuracy is high
- Rapid cam clamping device is used on tailstock
| Model | CKI-6140 |
| Max swing diameter over bed mm | 420 |
| Max swing diameter over carriage mm | 230 |
| Max length of workpiece mm | 750 |
| Width of guide rail | 340 |
| Model of chuck | D6/Φ200 |
| Spindle rotation speed | 2800RPM |
| Variable structure of spindle box | Vari |
| Spindle motor | 5.5kw |
| Spinlle head and spindle taper | D-6 |
| Diameter of spindle hose mm | Φ70 |
| Max moving speed of X axies m/min | 6 |
| Max moving speed of Z axies m/min | 8 |
| Diameter of sleeve | Φ58 |
| Travel of sleeve | 120 |
| Taper of tailstock sleeve | M4 |
| Positioning accuracy mm | 0.01 |
| Dimension | 2170*1200*1640 |
| Net weight | 1600 |
Standard accessories
1. Tai wan SYNTEC system
2.4 position turrent
3.Three jaw chuck
4.Tool and tool box
Optional accessories
1.Fanuc 0i-mate system or chinese GSK or KND system
2,Six position turrent
3,Hydraulic tailstock
4,Hydraulic chuck(taiwan or chinese)
After-sales Service:
Warranty is a year. Parts are free of charge to be offered during this period. Oversea service need to charged extra in and out of warranty
Our production workshop
Our company independent planning and construction of modern vertical machine center production line ,CNC milling machine production line ,Dragon frame CNC machine production line , electric discharge machine production line, milling machine production line, grinder machine production line, precise head assembly workshop etc.
Our development team
We have a group of development team that they have professional theory profound skills, technical specialization, rich experience in the industry of the first-class technical research
Our certificate of honor
- There are 8 Intellectual property rights,5 the patent
- In 2008, Our own brand”JOINT” has been the top quality machine’s signal in domestic sales JOINT also has been recognized as”Guangdong Famous Brand”
- In 2008, Milling machine was recognized as” TOP 10 Famous Brand of Milling Machine “ in China
- ,In 2011,our company has been recognized as” national grade HI-Tech Enterprise”.
- The company set up a ISO9001:2000 quality guarantee system
- our product through “the country machine quality supervision and inspection center “certification testing
