50 Ohm rf Brass Straight Uhf Male to Bnc Female Adapter
US$ 0.2 - 3
MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Model Number:
XT-U 020-1
Type:
Adapter
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
N-UHF Connector Adapter N Type Male Plug to UHF SO-239 Female JackUS$ 0.01 - 0.2MOQ: 5000 Pieces -
UHF PL259 Male to SMA Male Plug RF Connector AdapterUS$ 0.01 - 0.2MOQ: 5000 Pieces
-
Coax RF UHF Male R/A Right Angle Twist-on RG213 RF ConnectorsUS$ 0.1 - 0.2MOQ: 1000 Pieces
-
Wholesale Connector tv Antenna Uhf High-speed Cable Modems Cable UHF ConnectorUS$ 0.1 - 0.2MOQ: 1000 Pieces
-
50 Ohm Brass SMA Male to UHF PL259 ConnectorUS$ 0.1 - 0.2MOQ: 1000 Pieces
Place of Origin
Jiangsu, China
Model Number
XT-U 020-1
Type
Adapter
Application
UHF
Gender
Female
50 ohm rf brass straight uhf male to bnc female adapter
PRODUCT SPECIFICATIO
| Model No. | UHF-C-J213T | |
| Interface | IEC 60169-12 | |
| Characteristic Impedance | Non-constant | |
| Frequency Range | DC-500MHz | |
| VSWR | ≤1.20@DC-1000MHz | |
| Center contact retention force | ≥1.1N | |
| Working Vlotage | 750V RMS,50Hz,at sea level | |
| Dielectric Withstanding Voltage | ≥2000V RMS,50Hz,at sea level | |
| Dielectric Resistance | ≥5000MΩ | |
| Contact Resistance | Center Contact ≤5mΩ | Outer Contact ≤5 mΩ |
| Durability | Mating cycles ≥500 | |
| Parts Name | Material | Plating |
| Body | Brass | Ni |
| Insulator | PTFE | |
| Inner Conductor | Phosphor Bronze | Au |
| Coupling Nut | Brass | Ni |
| Gasket | Silicone Rubber | |
| Operating Temperature | _45 ℃-85 ℃ | |
| Weatherproof Rate | IP67 | |
| RoHs (2002/95/EC) | Compliant by exemption | |
| Suitable Cable Family | RG213 | |

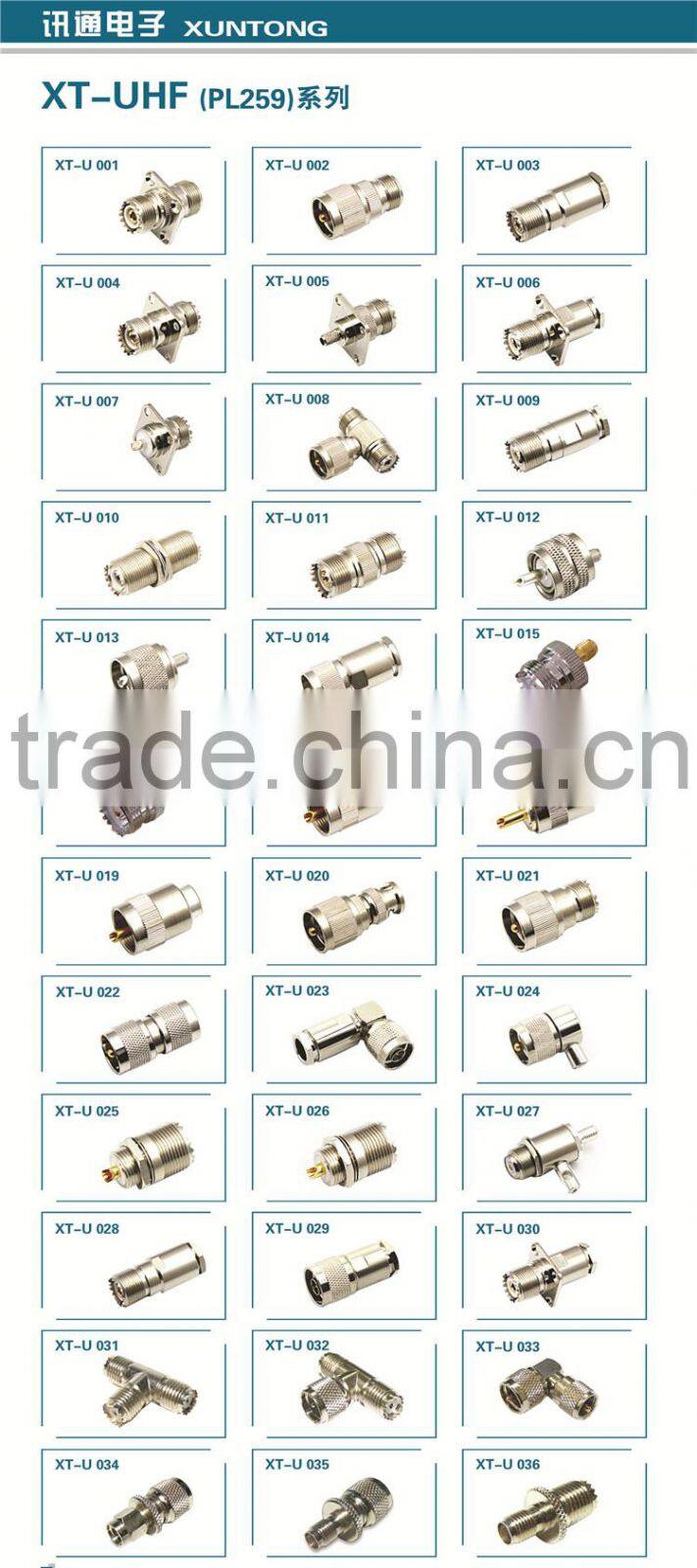

PRODUCT GROUP
PACKAGE SHIPPING
EQUIPMENT PROCESS
CERTIFICATIONS
OUR SERVICE
1. Your inquiry will be replied within 24 hours.
2. Our delivery time is 15 days, we will contact if there are special circumstances.
3. OEM&ODM.
4. We can do the product from your drawing, sample or indicated details.
FAQ
A:Do you only have these types of products ?
XT: No, We can do other products just need to give us your product samples and data.
B :How about your product quality and piece?
XT: We have different material products, you can choose according to your needs.
C :I dont know if your product is suitable for us.
XT: Dont worry,we can give our samples to you if you need.
