BNC Male to RCA Female Adapter for Security Camera
US$ 0.01 - 0.3
MOQ: 5000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
xuntong
Model Number:
XT-B 031
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
BNC Male to RCA Female Connector SwitchUS$ 0.1 - 2MOQ: 2000 Pieces -
Nickel Plated 3.5mm Female MONO Plug to RCA Male Mono JackUS$ 0.1 - 2MOQ: 2000 Pieces
-
Golden Pin SMA MALE TO BNC FEMALE Flange ConnectorUS$ 0.01 - 0.3MOQ: 5000 Pieces
-
RP-SMA Male to BNC Male With RG316coaxial Cable AssembleUS$ 0.01 - 0.3MOQ: 5000 Pieces
-
BNC Female to SMA Male RF Adapter ConnectorUS$ 0.01 - 0.3MOQ: 5000 Pieces
Place of Origin
Jiangsu, China
Brand Name
xuntong
Model Number
XT-B 031
Type
BNC
Application
RF
Gender
Male
BNC male to RCA female adapter for security camera
PRODUCT SPECIFICATIO
| Characteristic Impedance | 75ohm | |
| Frequency Range | DC-4GHz | |
| VSWR | ≤1.30@DC-1000MHz | |
| Insertion Losss | ≤0.2dB | |
| Working Vlotage | 500V RMS,50Hz,at sea level | |
| Dielectric Withstanding Voltage | ≥1500V RMS,50Hz,at sea level | |
| Dielectric Resistance | ≥5000MΩ | |
| Contact Resistance | Center Contact ≤1.5mΩ | Outer Contact ≤1.0 mΩ |
| Durability | Mating cycles ≥500 | |
| Parts Name | Material | Plating |
| Body | Brass | Ni |
| Insulator | PTFE | — |
| Inner Conductor | Phosphor Bronze | Au |
| Coupling Nut | Brass | Ni |
| Gasket | Silicone Rubber | — |
| Ferrule | Annealed Copper | Ni |
| Operating Temperature | _45 °C~-85 °C | |
| Weatherproof Rate | IP67 | |
| RoHs (2002/95/EC) | Compliant by exemption | |
| Suitable Cable Family | RG59 Cable | |

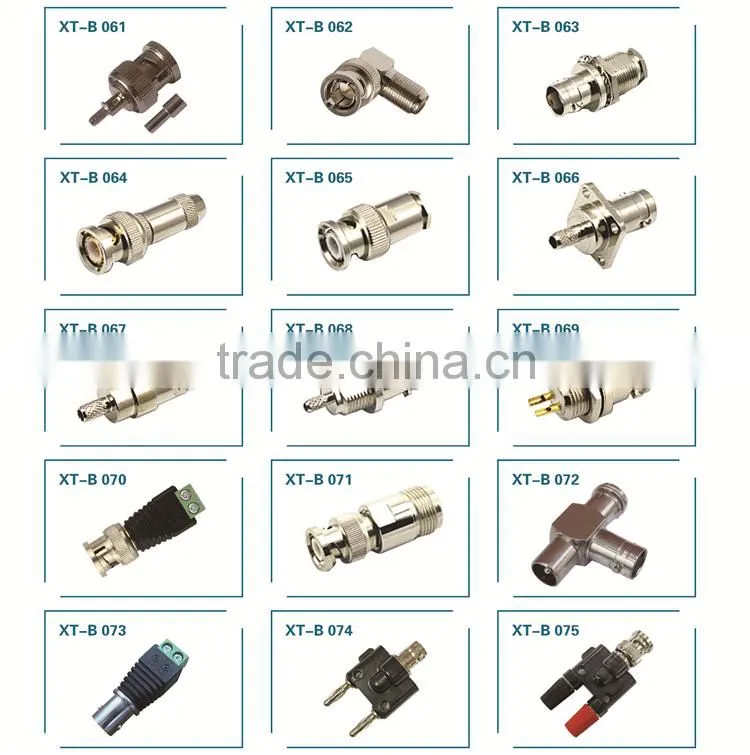

PRODUCT GROUP
PACKAGE SHIPPING
EQUIPMENT PROCESS
CERTIFICATIONS
OUR SERVICE
1. Your inquiry will be replied within 24 hours.
2. Our delivery time is 15 days, we will contact if there are special circumstances.
3. OEM&ODM.
4. We can do the product from your drawing, sample or indicated details.
FAQ
A:Do you only have these types of products ?
XT: No, We can do other products just need to give us your product samples and data.
B :How about your product quality and piece?
XT: We have different material products, you can choose according to your needs.
C :I dont know if your product is suitable for us.
XT: Dont worry,we can give our samples to you if you need.
