COL5502N DVB-S/S2 Modulator IP in RF out Modulator,

                                                     QPSK,8PSK,16APSK,32APSK Modulator

 DVB-S/S2 Modulator IP in RF out Modulator,QPSK,8PSK,16APSK,32APSK Modulator COL5502N

Outline



COL5502N is a high-performance modulator developed according to DVB- S2 (EN302307) standard which is
the standard of second generation of the European broadband satellite telecommunication. It is to convert the

input ASI and IP signals alternatively into digital DVB-S/S2 RF output. BISS scrambling mode is inserted to this

DVB- S2 modulator, which helps to safely distribute your programs. It is easy to reach local and remote control
with NMS software and LCD in the front panel. With its high cost-effective design, COL5502N DVB- S2 modula

-tor is wildly used for broadcasting, interactive services, news gathering and other broadband satellite applicat

ions.



Features

  • Fully complying with DVB-S2 (EN302307) and DVB-S (EN300421) standard
  • 4 ASI inputs supporting hot backup (3 for backup)
  • Support IP (100M) signal input
  • QPSK, 8PSK, 16APSK, 32APSK Constellations
  • Constant temperature crystal oscillator, as high as 0.1ppm stability
  • Support coupling 10Mhz clock output through RF output port
  • Support 24V power output through RF output port
  • Support BISS scrambling(UP to 80 Mbps)
  • Support local and remote control with SNMP or Web-server NMS
  • Support SFN TS (with MIP or IIP) transmission
  • Output frequency range: 950~2150MHz, 10KHz stepping



Principle Chart

DVB-S/S2 Modulator IP in RF out Modulator,QPSK,8PSK,16APSK,32APSK Modulator COL5502N

Specifications

ASI Input

Supporting both188/204 Byte Packet TS Input

4 ASI Inputs, Supporting Hot Backup

Connector: BNC, Impedance 75Ω

IP Input

1*IP Input (Rj45, 100M TS Over UDP)

SFN output

MIP or IIP

10MHz Input

1*10Mhz Input (BNC Interface)

RF Output

RF Range: 950 ~ 2150 MHz, 10KHz stepping

Output Level Attenuation:-10.0 dBm~-41.5 dBm,0.5dB Stepping

MER≥36dB

Connector: N type, impedance 50Ω

Channel Coding

and Modulation

Standard

DVB-S

DVB-S2

Outer coding

RS Coding

BCH Coding

Inner coding

Convolution

LDPC Coding

Constellation

QPSK

QPSK,8PSK, 16APSK,32APSK

FEC/ Convolution Rate

1/2, 2/3, 3/4, 5/6, 7/8

QPSK: 1/4, 1/3, 2/5, 1/2, 3/5, 2/3,

            3/4, 4/5, 5/6, 8/9, 9/10

8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10

16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10

32APSK: 3/4, 4/5, 5/6, 8/9, 9/10

Roll-off Factor

0.2, 0.25, 0.35

0.2, 0.25, 0.35

Symbol Rate

0.5~45Msps

0.5~40Msps (32APSK);

0.5~45 Msps (16APSK/8PSK/QPSK)

BISS Scramble

Mode 0, mode 1, mode E

System

SNMP/Web-server NMS

Language: English

Ethernet software upgrade

24V power output through RF output port

Miscellaneous

Dimension

482mm×410mm×44mm

Weight

4.3 KG

Temperature

0~45℃(operation), -20~80℃ (storage)

Power

100-240VAC±10%,50Hz-60Hz

Consumption

25W




Our advantages



 Products Qulity:  Most of our products get CE approved:set top box have report from State

  Administration for Entry Exit Inspection and Quarantine.



 Technical Support: Our R&D department is composed br the most experienced engineer with

 young university graduate,bring new energy continuously. Customers will be informed at first

 time as long as our software upgrade or new management software version come out .



 Shipment Speed: All packages of orders will be shipped 2-5 days sfter customer deposit.

 Usually we use the speediest DHL/UPS/Fedex for small order delivery,and we have  long

  erm cooperated carriers for common air & sea delivery with cheap price and high speed.



 Guarantee:All products will have life-long skill support ,head ends for free repair within 3 years.





Some pictures for reference

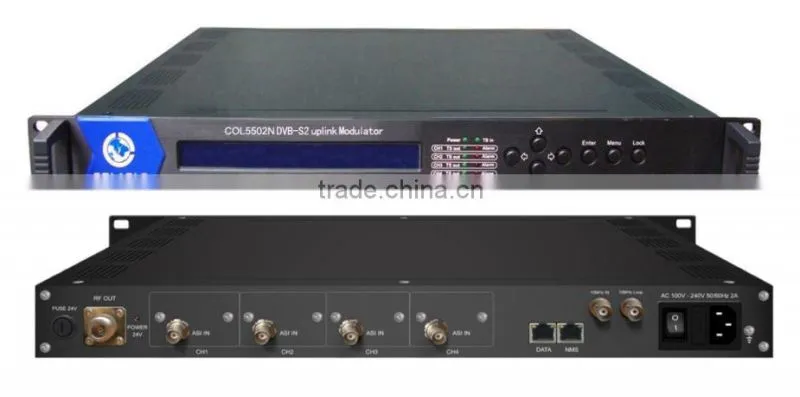

DVB-S/S2 Modulator IP in RF out Modulator,QPSK,8PSK,16APSK,32APSK Modulator COL5502NDVB-S/S2 Modulator IP in RF out Modulator,QPSK,8PSK,16APSK,32APSK Modulator COL5502N

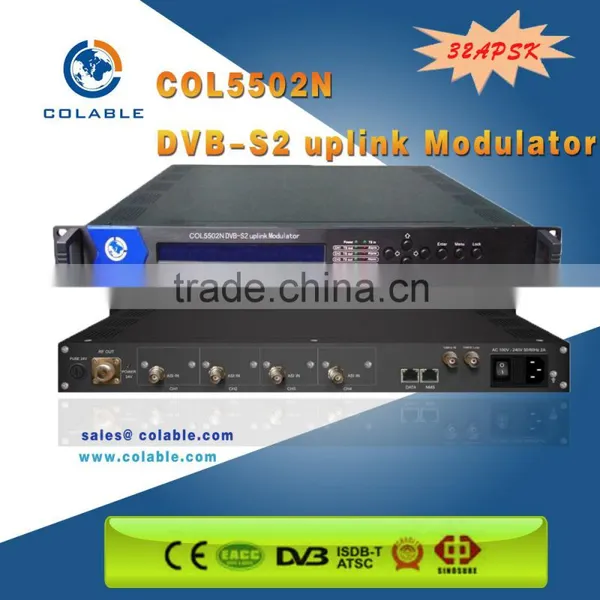

DVB-S/S2 Modulator IP in RF out Modulator,QPSK,8PSK,16APSK,32APSK Modulator COL5502N









DVB-S/S2 Modulator IP in RF out Modulator,QPSK,8PSK,16APSK,32APSK Modulator COL5502N
