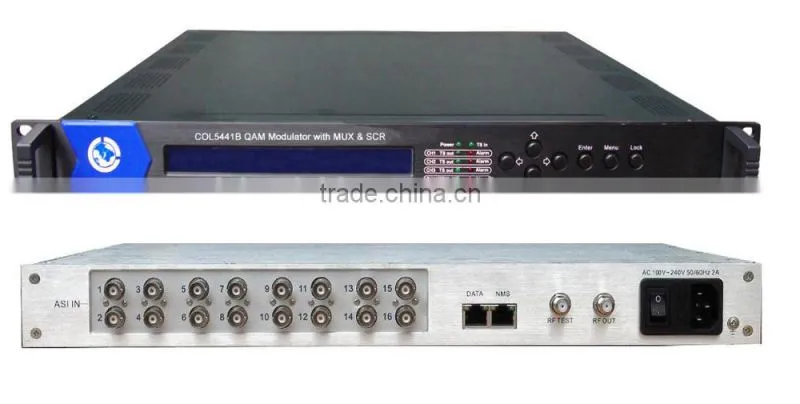

DVB-C 4 qam modulator asi 16 in 1 with mux & scrambler COL5441B
Outline

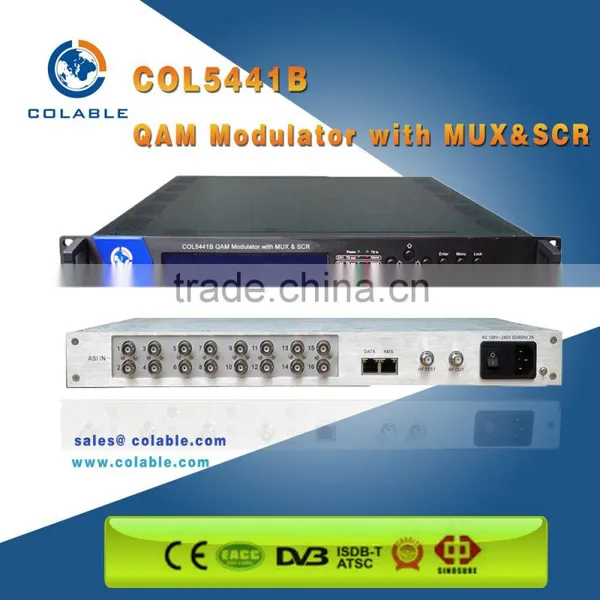

COL 5441B QAM Modulator with MUX is a high performance and cost-effective ASI mux-scrambling QAM
modulating device latest designed by Company, Which provide 16 ASI input interface. After 4 channels
multiplexing, scrambling and QAM modulating process, then it gives 4 RF output (4 adjacent frequencies by 1
RF port). The device is characterized with high integrated level, high performance and low cost. This is very
adapting to newly generation CATV broadcasting system.
Feature
- Support 16 ASI input
- Fully support EN300 429/ITU-T J.83A/B/C
- Fully support DVB general scrambling system description ETR289, simulcrypt standard ETSI 101 197 and ETSI 103 197
- Support 4 channels multiplexing, 4 channels scrambling and 4 channels QAM modulating
- Simultaneously support 4 simulcrypt CA
- Symbol rate adjusting range: 5.0Msps~7.0Msps
- Five constellation modes: 16QAM, 32QAM, 64QAM, 128QAM, 256QAM
- Support PCR accurate adjusting
- Support PSI/SI editing and inserting
- Excellent RF output performance index, MER≥40db
- Support LCD display and keyboard
- Support NMS operation
Specification
Input |
16 x ASI inputs, BNC interface |
|
Multiplexer |
input |
16 x ASI |
Output Channel |
4 |
|
Max PIDs |
256 per channel |
|
Functions |
PID remapping(auto/manually optional) PCR accurate adjusting PSI/SI table automatically generating |
|
Scrambling |
Max simu-encrypt CA |
4 |
Scramble Standard |
ETSI 101 197,ETSI 103 197 |
|
Connection |
Local/remote connection |
|
QAM Modulation |
QAM Channel |
4 |
Modulation Standard |
EN300 429/ITU-T J.83A/B/C |
|
Symbol Rate |
5.0~7.0Msps,1ksps stepping |
|
Constellation |
16,32,64,128,256QAM |
|
FEC |
RS(204, 188) |
|
RF Output |
Interface |
F typed output port for 4 carriers, 75Ω impedance |
RF Range |
48~1000 MHz,1kHz stepping |
|
Output Level |
-25dBm~6dBm,0.5dB stepping |
|
MER |
≥ 40dB |
|
ACLR |
(Adjacent Channel Leakage Ratio) − 60 dBc |
|
System |
Network management software (NMS) supporting |
|
English and Chinese interface conversion | ||
Ethernet software upgrade | ||
General |
Demission (W*L*H) |
482mm×455mm×44.5mm |
Weight |
6.7kg |
|
Temperature |
0~45°C(operation),-20~80°C(storage) |
|
Power Supply |
AC 100V±10%,50/60Hz or AC 220V±10%,50/60Hz |
|
Consumption |
25W |
|
Application system
-DVB-C Cable Solution:
Asking for more information? please feel free to directly chat with Betty.Li:
Or move your finger and send an inquiry to Supplier on the right side.
We Colable Electronics co.,ltd
specialize in Digital TV broadcasting equipment for more than 10 years, and experienced in Digital Cable/Satellite/ Terrestrial tv broadcasting solution and system, If you have any questions and ideas, please no hesitate to contact us!
Our experience: Continuous experienced and reliable Team , Standing in DVB Head-end system solution more than 10 years.
Our product: FTA satellite receiver/decoder, Satellite descrambler (CI slot), Encoder, Multiplexer,Scrambler, Modulator, Transmitter,Antenna,Set top box.
Our service: Life-long Technical support.
Warranty: 1 years.
Lead time: 2-5 working days
