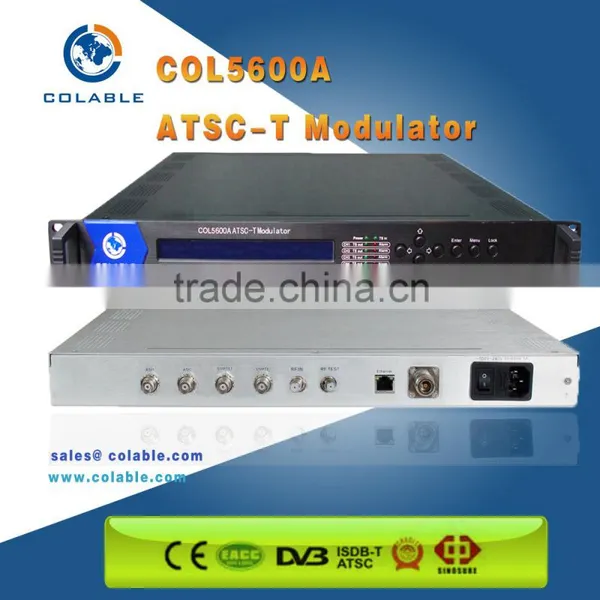

Model: COL5600A
Stardard digital ATSC-T Modulator
Outline
COL5600A ATSC-T modulator is a modulator designed fully complying with American ATSC A/53 standard.
This device supports DVB-ASI and SMPTE-310 input, after modulating the inputting signals through ATSC
8-VSB, it can output RF signals with the range between 40~860MHz. In other words, this ATSC-T modulator
supports the coding and modulating mode under ATSC-T A/53 standard. Additionally, the system of this
device can be on line controlled and upgraded through network, which can be widely used in ATSC-T digital
broadcasting network setup and the testing for ATSC-T set top box design.
Features
- Full complying with ATSC A/53 standard
- Constellation mapping:8-VSB
- EN50083 ASI and SMPTE 310M interface standard
- Dual channel DVB-ASI and SMPTE-310M input, automatic switch-over and hot backup
- RF range: 40MHz~860MHz,1Hz stepping
- Front panel and IP long distance control
- RS coding, data interlacing, Trellis coding
- Channel bandwidth: 6MHz
- Excellent RF output performance: EVM,MER,SNR,shoulder level and so on
- Remote maintenance, monitoring and software upgrading
- Keyboard operation and LCD display
- Network management software
Specification
Input |
2 channels ASI input, hot backup, BNC interface |
||
2 channels SMPTE 310M input, hot backup, BNC interface | |||
Modulation |
Standard |
ATSC A/53 |
|
Constellation |
8VSB |
||
FEC |
RS(208 188)+Trellis |
||
RF output |
Port |
N Type,50Ω impedance |
|
RF range |
40~860Mhz,1hz stepping |
||
Output Level ATT |
-16dbm~0dbm,0.5db stepping |
||
MER |
≥ 42db |
||
System |
LCD display & keyboard operation, NMS, Chinese & English operation display |
||
Software upgraded through network | |||
General |
Demission(WxLxH) |
482mm×455mm×44.5mm |
|
Weight |
6.0kg |
||
Temperature |
0~45°C( operation),-20~80°C( storage) |
||
Power Supply |
AC 110V/220V±10%,50/60Hz |
||
Consumption |
25W |
||

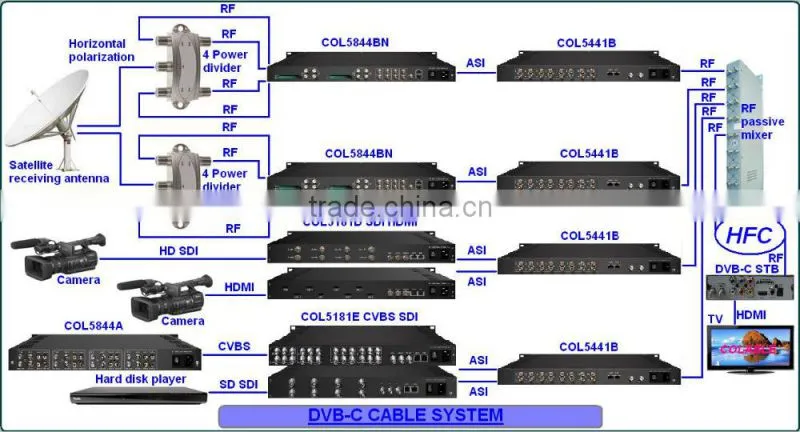

Application system
We Colable Electronics co.,ltd
specialize in Digital TV broadcasting equipment for more than 10 years, and experienced in Digital Cable/Satellite/ Terrestrial tv broadcasting solution and system, If you have any questions and ideas, please no hesitate to contact us!
Our experience: Continuous experienced and reliable Team , Standing in DVB Head-end system solution more than 10 years.
Our product: FTA satellite receiver/decoder, Satellite descrambler (CI slot), Encoder, Multiplexer,Scrambler, Modulator, Transmitter,Antenna,Set top box.
Our service: Life-long Technical support.
Warranty: 1 years.
Lead time: 2-5 working days
