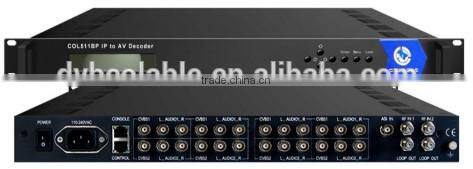

Multi-channel audio video output decoder in digital headend
Skype ID: colable.sales008 Whatsapp: +8615928631862
Outline

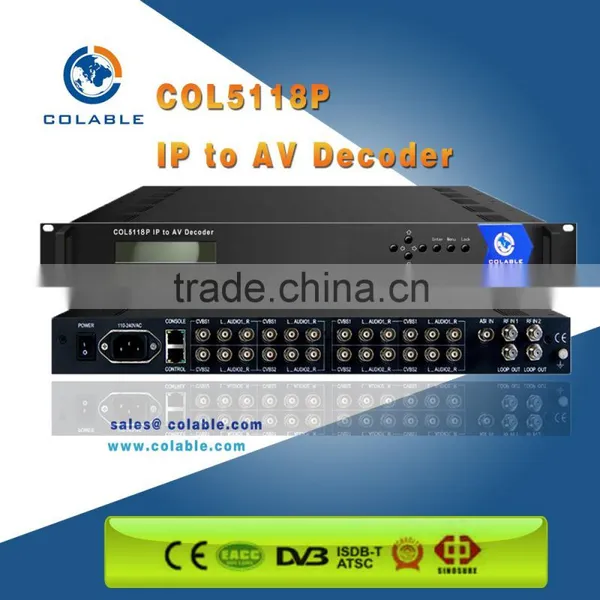

COL5118P is a multi-channel professional FTA receiver and decoder with broadcast quality. This was designed for demodulating and decoding up to eight unscrambled SD MPEG-2, AVC and AVS programs. It supports a wide range of input and output options, coming from DVB-S/S2 satellite, Ethernet network and local DVB-ASI interface, allowing it handle any program sources, decoding output via analog composite video and unbalanced or balanced audio interfaces. It is also highly versatile and can decode up to eight channels SD MPEG-2, AVC, AVS programs in one rack unit.
The product supports Web browser and SNMP management for local and remote management and maintenance, this can significantly reduce management time and operating expense (OPEX) of operators.
Features
- Support MPEG-2 video decoding
- High density: 1RU, up to 8 channels of standard definition video and audio decoding output;
- Versatile functions: supports DVB-S/S2 RF reception & demodulation, Ethernet network and DVB- ASI TS input, unbalanced or balanced analog audio output;
- Multiple video decoding formats as standard configuration, no additional charge for software license, including MPEG-2, MPEG-4 AVC and AVS;
- Multiple audio decoding formats: MPEG-1 Layer II and MPEG-2.
Specifications
TS-over-IP Input (Hardware Option) | ||
Numbers of Interface |
1 x 100/1000Base-T Ethernet |
|
Connector Type |
RJ-45 |
|
Data Format |
7 x 188 Bytes |
|
Transport Protocols |
TS-over-UDP |
|
Addressing |
Unicast, Multicast (IGMPv1, v2) |
|
ASI TS Input | ||
Numbers of Interface |
1 x ASI Input |
|
Connector Type |
BNC (Female, 75Ω) |
|
Standards |
DVB-ASI |
|
Data Format |
188 Bytes MPEG-TS packet length |
|
Bit Rate |
1.5 to 99 Mbps each |
|
Analog Video and Audio Output | ||
Composite Video |
8 x CVBS |
|
BNC female, 75W | ||
Unbalanced Audio |
8 x Stereo pairs (R&L) |
|
BNC female, 600W | ||
Stereo or Mono mode | ||
Analog Balanced Audio Output (Hardware Option) | ||
Numbers of Interface |
8 x Stereo pairs (R&L) |
|
Connector Type |
XLR male, 110W |
|
Operation Modes |
Stereo or Mono |
|
Remarks: This hardware option is available for 2RU chassis only. | ||
Video Decoding | ||
Decoding Profile & Level |
MPEG-2 SD: MP@ML MPEG-4 AVC SD: MP@L3 AVS |
|
Resolution& Frame Rate |
PAL: 576i@25fps NTSC: 480i@30fps |
|
Aspect Ratio |
4:3 or 16:9 |
|
Audio Decoding Options | ||
Decoding Formats |
MPEG-1 Layer II MPGE-2 |
|
Operation Mode |
Stereo or Mono |
|
Supported Sample Rate |
32 kHz, 44.1 kHz, 48 kHz |
|
Audio Decoding Rate |
MPEG-1 Layer 2: 192-384 kbps |
|
Network Management | ||
Interface |
1 x 10/100 Base-T Ethernet |
|
Connector |
RJ-45 |
|
Management |
Web browser and SNMP management |
|
Miscellaneous | ||
Front Panel |
3.5’’ LCD with 6 x Control Buttons for 2-line alphanumeric display and parameter settings |
|
3 x Dual color LED, for status indications of power, work and Alarm | ||
Rear Panel |
1 x Serial Console Port(via RJ-45 connector) |
|
1 x Power Supply Receptacle (AC Input) | ||
1 x Power switch | ||
Power Supply | ||
Input Voltage |
110-240 VAC, 50/60Hz |
|
Power Consumption |
30W(Maximum) |
|
Environmental | ||
Operating Temperature |
0℃ to 45℃ (32℉ to 113℉) |
|
Storage Temperature |
-20℃ to 80℃ (-4℉ to 176℉) |
|
Operating Humidity |
90%, non-condensing |
|
-DVB-C IP networking system:
-Terrestrial Broadcasting system:
We Colable Electronics co.,ltd
specialize in Digital TV broadcasting equipment for more than 10 years, and experienced in Digital Cable/Satellite/ Terrestrial tv broadcasting solution and system, If you have any questions and ideas, please no hesitate to contact us!
Our experience: Continuous experienced and reliable Team , Standing in DVB Head-end system solution more than 10 years.
Our product: FTA satellite receiver/decoder, Satellite descrambler (CI slot), Encoder, Multiplexer,Scrambler, Modulator, Transmitter,Antenna,Set top box.
Our service: Life-long Technical support.
Warranty: 1 years.
