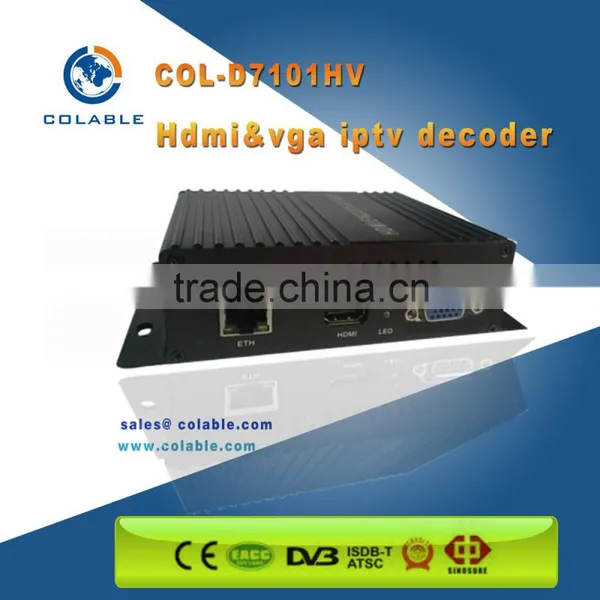

Mini Size ip Streaming to hd mi Decoder COL-D7101HV

Name: Mini Size ip Streaming to hd mi Decoder COL-D7101HV
Brand: Colable
SKU: 132180263
Availability: InStock

Mini Size ip Streaming to hd mi Decoder COL-D7101HV thumbnail-1

Mini Size ip Streaming to hd mi Decoder COL-D7101HV photo-1

US$ 1 - 300 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Sichuan, China

Brand Name:

Colable

Model Number:

COL-D7101HV

Contact Supplier Request Quote Chat Now

Colable Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Chengdu

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Sichuan, China

Brand Name Colable

Model Number COL-D7101HV

Single h.264 iptv stream decoder Model COL-D7101HV

(Skype ID: colable.sales008)

Outline

COL-D7101HV Mini HDMI&VGA IPTV decoder is most competitive cost and easy-to-use video streaming decoding device. The product support IP input which compliants with RTSP, HTTP, UDP and RTMP protocols, and 1 channel HDMI & VGA video output with 1080P. The product can be applied to education, health care, IPTV, conference, remote education, news interview, banking, transportation and other industries.

Features

1 channel HDMI &VGA output,
Providing RTSP/RTP/HTTP/RTMP/UDP/ONVIF2.4 protocol
Support resolution 1920x1080/1280x720/1280x1024/1280x960/704x57
System supports WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN64, LINUX
Supports MP3 and AAC audio format selection
decoding specification: BASELINE PROFILE / MAIN PROFILE/ HIGH PROFILE
Support a click to restore the default configuration
Support multiple devices display at the same time on a computer
Support H.264 Main Profile/H.264 High Profile and AAC audio.
Web control interface
Comply with CBR/VBR 16KBIT/S~12MBIT/S standard
Power less than 24W, low power watts designing.
Support Network interface full-duplex mode 1000M

Technical Specification

Video	output	1 channel HDMI &VGA output, supports HDCP
	Resolution	1920x1080/1280x720/1280x1024/1280x960/704x576
	decoding	H.264/AVC High Profile Level 4.0(HMDI)
	Video Bitrate	0.8Mbps~12Mbps
	Bitrate mode	CBR/VBR
	GOP type	Adjustable
	Video preprocessing	De-interlacing, noise reduction, sharpening
Audio	decoding	AAC,MP3
	Resample Rate	Adaptive output sample rate (option) 32K, 44.1K, 48K, 64K, 96K, 128K, 160K, 192K
	Sampling	24 bit
	Bitrate	64Kb/s~384Kb/s
System	RJ45	1000M Ethernet port
	Protocol	HTTP,UDP,RTSP,RTMP,ONVIF
	Configuration interface	WEB interface
Environment	Dimensions	(W×D×H): 146mm x 100mm x 45mm
	Net Weight	0.5KG
	Temperature	0~45℃(work), -20~80℃(Storage)
	Power Requirements	12V / DC
	Power consumption	5W

Main application system: Point to Point system

Asking for more information? please feel free to directly chat with Kitty.Lee:

Skype: colable.sales008; Whatsapp:+8615928631862; Or easily click upon your right side to contact us online!

We Colable Electronics co.,ltd

specialize in Digital TV broadcasting equipment for more than 10 years, and experienced in Digital Cable/Satellite/ Terrestrial tv broadcasting solution and system, If you have any questions and ideas, please no hesitate to contact us!

Our experience: Continuous experienced and reliable Team , Standing in DVB Head-end system solution more than 10 years.
Our product: FTA satellite receiver/decoder, Satellite descrambler (CI slot), Encoder, Multiplexer,Scrambler, Modulator, Transmitter,Antenna,Set top box.
Our service: Life-long Technical support.
Warranty: 1 years.
Lead time: 2-5 working days
