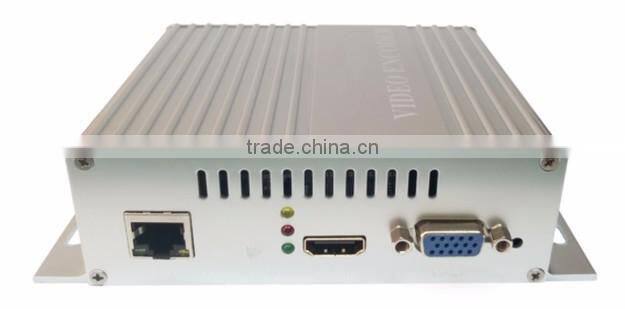

COL-D7101HV Mini HDMI&VGA IPTV Decoder
Skype ID: yangting965
We are providing complete solution for DVB-C/S/S2/T/T2 system, IPTV system.
Please add my Skype ID or send an inquiry, let's talk more details.
Outline
COL-D7101HV Mini HDMI&VGA IPTV decoder is most competitive cost and easy-to-use video streaming decoding device. The product support IP input which compliants with RTSP, HTTP, UDP and RTMP protocols, and 1 channel HDMI & VGA video output with 1080P. The product can be applied to education, health care, IPTV, conference, remote education, news interview, banking, transportation and other industries.
Features
- 1 channel HDMI &VGA output
- Providing RTSP/RTP/HTTP/RTMP/UDP/ONVIF2.4 protocol
- Support resolution 1920x1080/1280x720/1280x1024/1280x960/704x57
- System supports WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN64, LINUX
- Supports MP3 and AAC audio format selection decoding specification: BASELINE PROFILE / MAIN PROFILE/ HIGH PROFILE
- Support a click to restore the default configuration
- Support multiple devices display at the same time on a computer
- Support H.264 Main Profile/H.264 High Profile and AAC audio.
- Web control interface
- Comply with CBR/VBR 16KBIT/S~12MBIT/S standard
- Power less than 24W, low power watts designing.
- Support Network interface full-duplex mode 1000M
Technical Specification
|
Video |
output |
1 channel HDMI &VGA output, supports HDCP |
Resolution |
1920x1080/1280x720/1280x1024/1280x960/704x576 |
|
decoding |
H.264/AVC High Profile Level 4.0(HMDI) |
|
Video Bitrate |
0.8Mbps~12Mbps |
|
Bitrate mode |
CBR/VBR |
|
GOP type |
Adjustable |
|
|
Video preprocessing |
De-interlacing, noise reduction, sharpening |
|
|
Audio
|
decoding |
AAC,MP3 |
Resample Rate |
Adaptive output sample rate (option) 32K, 44.1K, 48K, 64K, 96K, 128K, 160K, 192K |
|
Sampling |
24 bit |
|
Bitrate |
64Kb/s~384Kb/s |
|
|
System |
RJ45 |
1000M Ethernet port |
Protocol |
HTTP,UDP,RTSP,RTMP,ONVIF |
|
|
Configuration interface |
WEB interface |
|
|
Environment |
Dimensions |
(W×D×H): 146mm x 100mm x 45mm |
Net Weight |
0.5KG |
|
Temperature |
0~45℃(work), -20~80℃(Storage) |
|
|
Power Requirements |
12V / DC |
|
|
Power consumption |
5W |
Application
- MMDS digital TV head end
- Satellite digital TV broadcasting
- Terrestrial digital TV
- Image Supervise
- Video-On-Demand (VOD) Long-distance teaching
- Video Conference
Product Equipments
Testing Equipments
Package Process
Our experience: Plenty of practical experiences in building IPTV and DVB systems in many different countries
Our product: Satellite receiver/ Demodulator Decoder IRD, Encoder, Multiplexer, Scrambler, Modulator, Transmitter, Antenna, Set top box, IP Gateway, Transcoder, TS Analyzer, TS Distributor etc.
Our service: Life-long Technical support
Warranty: 1 years
Lead time: 2-5 working days
