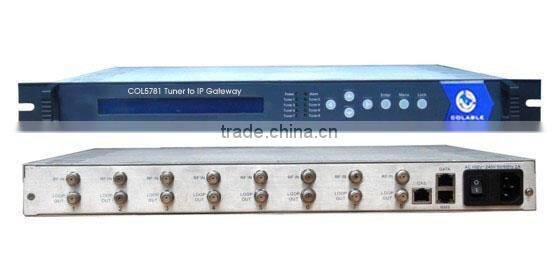

COL5781 DVB (8 tuners) to IP Gateway
Outline
COL5781 Tuner to IP Gateway is a headend interface conversion device which is used for DVB and Ethernet.
It is integrated with tuner demodulation and gateway function, which can demodulate the signal from 8 tuners
into TS and packet the TS into IP package, then output the IP package through different IP address and ports.
It supports TS over UDP protocol. Furthermore, it can simultaneously convert the signals from 8 channels
DVB-S/-S2/-C/-T/ISDB-T/ATSC to TS over UDP and output it.
Feature
- Integrated with demodulation and gateway function
- Support 8 channels tuner(DVB-S/S2/-C/-T/ISDB-T/ATSC optional) input and 8 IP output
- Support MPEG-2 and MPEG-4 TS to IP one way conversion
- 1 GE output(support parallel 1 Gbps data output channel)
- Support maximum 8 tuner to IP converting channel, the maximum output bit-rate is 800Mbps
- Support TS over UDP protocol, unicast and multicast
- Support LCD display and keyboard control
- Support NMS/SNMP management

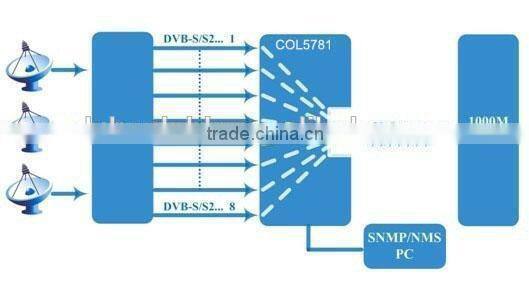

Inner Principle
Specifications
Interface |
Input |
8 Channels tuner input(DVB-S/S2/-C/-T/ISDB-T/ATSC optional) |
Output |
1 GE output, TS over UDP protocol, unicast and Multicast |
|
Transmission Bit-rate |
Maximum total bit-rate is 800Mbps |
|
General |
Dimension (WxLxH) |
482mm×410mm×44mm |
Weight |
3.6kg |
|
Temperature |
0~45℃(working ),-20~80℃(storage) |
|
Power supply |
100~240VAC,50/60Hz |
|
consumption |
20W |
|
Our advantages
Products Qulity: Most of our products get CE approved:set top box have report from State
Administration for Entry Exit Inspection and Quarantine.
Technical Support: Our R&D department is composed br the most experienced engineer with
young university graduate,bring new energy continuously. Customers will be informed at first
time as long as our software upgrade or new management software version come out .
Shipment Speed: All packages of orders will be shipped 2-5 days sfter customer deposit.
Usually we use the speediest DHL/UPS/Fedex for small order delivery,and we have long
erm cooperated carriers for common air & sea delivery with cheap price and high speed.
Guarantee: All products will have life-long skill support ,head ends for free repair within 3 years.
Some applications for reference
