DVB asi to ip gateway and converter /asi to udp unicast multicast out
Easily discussion via Skype: Colable.sales008
Outline

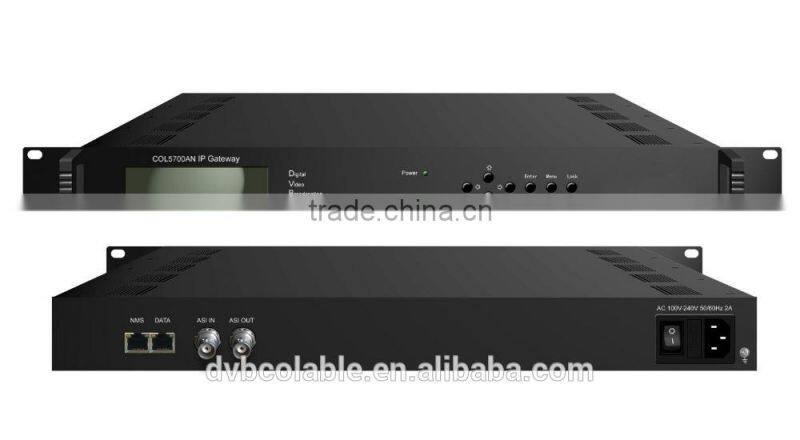

COL5700AN Bidirectional IP Gateway is a head-end interface device which is used for DVB and Ethernet. It can be used both for a receiver and a lancers! On one hand, in the lancers part, this machine can be used for sending IP stream, turning the TS stream into IP Stream. On the other hand, in the receive part; this machine can be used for receiving IP stream, turning the IP stream into TS stream.
Features
- Support PCR adjusting
- Transparent transmission without ATM adapting process, directly mapping IP frame, through the network, with 100Mbps interface to transmission
- Alarm display
- IP frame structure, complies ITU G. 752, ITU-T G.804 standard
- IP signal physical interface complies ITU-TG.703 standard;
- Two-way operation, IP Stream is 80.000Mbps.
- LCD/Key board or Web page based NMS management
Specifications
ASI to IP |
Input |
1 ASI input (BNC) |
Output |
1 IP over UDP output (RJ 45) |
|
IP to ASI |
Input |
1 IP over UDP input (RJ 45) |
Output |
1 ASI output (BNC) |
|
NMS port |
To connect PC and device management; To output IP signal (multicast only) |
|
DATA port |
To input/output IP (unicast/multicast )signal; Used as NMS port and auto generate IP address |
|
General |
Management |
LCD/Key board; Web NMS |
Dimension |
44mm*482mm*433mm |
|
Environment |
0-45℃ (Working) ; -20~80℃ (Storage) |
|
Power supply |
220V AC±10%, 50Hz 25W |
|
