Cost-effective 8 carrier fta dvb-s2 to ip gateway COL5781
- 10000 Set / Sets per Month
- Chengdu/Shanghai
- Credit Card
- In stock PJ-208B earphone audio socket 4-pin 2.5 plug earphone socket plastic plug
- In stock PJ-208A earphone audio socket 4-pin 2.5 plug-in anti wolf alarm plug
- simar popular 22/24 inch self-reversing monitor tempered glass mirror presidential conference meeting speech teleprompter
- simar Best selling 20/22/24/27/32 inch self-reversing flip monitor M-ZYS20/22/24/27/32 teleprompter
- 17/20/22/24/27/32 inch Broadcasting studio prompter teleprompter for recording
- NIORFNIO T50M 50W FM transmitter, high-power USB playback farm application 5-kilometer range
Product Details
Place of Origin: | Sichuan, China | Brand Name: | Colable | Model Number: | COL5781 |
Product Description

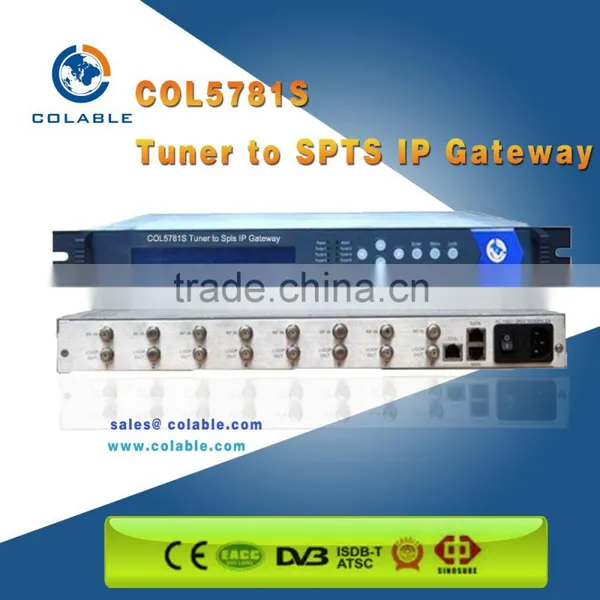

Model: COL5781S
Cost-effective 8 carrier fta dvb-s2 to ip gateway
model COL5781S: 32*spts over ip udp
model COL5781 : 8* mpts over ip udp
Outline
COL5781 Tuner to IP Gateway is a head-end interface conversion device which is used for DVB and Ethernet. It is integrated with tuner demodulation and gateway function, which can demodulate the signal from 8 tuners into TS and packet the TS into IP package, then output the IP package through different IP address and ports. It supports TS over UDP protocol. Furthermore, it can simultaneously convert the signals from 8 channels DVB-S/-S2/-C/-T/ISDB-T/ATSC to TS over UDP and output it.
Feature
- Integrated with demodulation and gateway function
- Support 8 channels tuner(DVB-S/S2/-C/-T/ISDB-T/ATSC optional) input and 8 IP output
- Support MPEG-2 and MPEG-4 TS to IP one way conversion
- 1 GE output(support parallel 1 Gbps data output channel)
- Support maximum 8 tuner to IP converting channel, the maximum output bit-rate is 800Mbps
- Support TS over UDP protocol, unicast and multicast
- Support LCD display and keyboard control
- Support NMS/SNMP management
Specifications
Interface | Input | 8 Channels tuner input(DVB-S/S2/-C/-T/ISDB-T/ATSC optional) |
Output | 1 GE output, TS over UDP protocol, unicast and Multicast | |
Transmission Bit-rate | Maximum total bit-rate is 800Mbps | |
General | Dimension (WxLxH) | 482mm×410mm×44mm |
Weight | 3.6kg | |
Temperature | 0~45℃(working ),-20~80℃(storage) | |
Power supply | 100~240VAC,50/60Hz | |
consumption | 20W |
Inner principle:
Asking for more information? please feel free to directly chat with Betty.Li:
Or move your finger and send an inquiry to Supplier on the right side.
We Colable Electronics co.,ltd
specialize in Digital TV broadcasting equipment for more than 10 years, and experienced in Digital Cable/Satellite/ Terrestrial tv broadcasting solution and system, If you have any questions and ideas, please no hesitate to contact us!
Our experience: Continuous experienced and reliable Team , Standing in DVB Head-end system solution more than 10 years.
Our product: FTA satellite receiver/decoder, Satellite descrambler (CI slot), Encoder, Multiplexer,Scrambler, Modulator, Transmitter,Antenna,Set top box.
Our service: Life-long Technical support.
Warranty: 1 years.
Lead time: 2-5 working days
