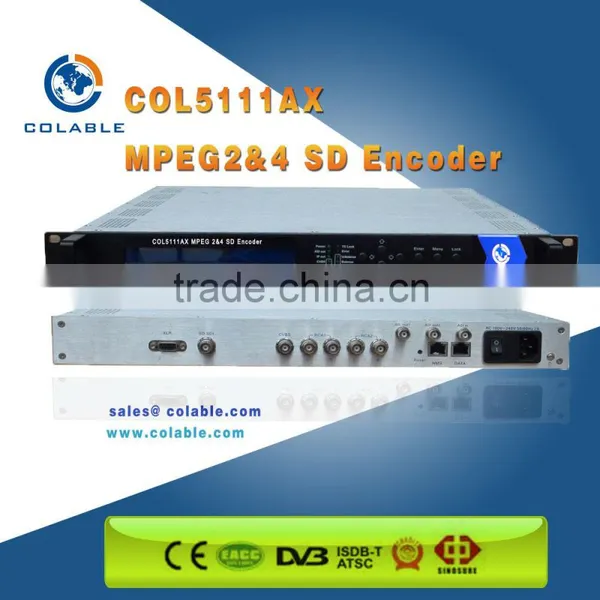

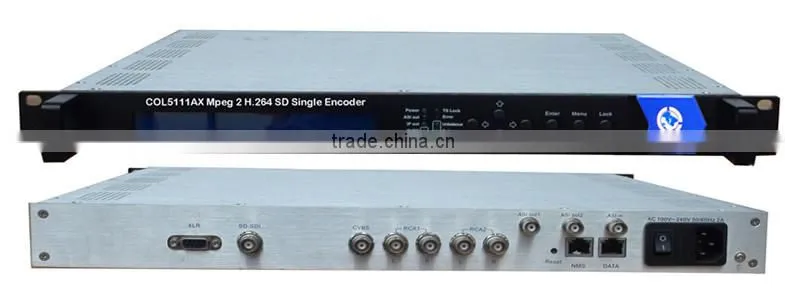

Digital Ultra Low Bit-rate MPEG-2/H 24 SD Encoder COL5111AX

Name: Digital Ultra Low Bit-rate MPEG-2/H 24 SD Encoder COL5111AX
Brand: Colable
SKU: 132176683

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

Colable

Model Number:

COL5111AX

Place of Origin:

Sichuan, China

Colable Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Chengdu

Delivery Detail:

Delivery time depends on order quantity.

Brand Name Colable

Model Number COL5111AX

Place of Origin Sichuan, China

Model: COL5111AP

Digital Ultra Low Bit-rate MPEG-2/H 24 SD Encoder

Outline

COL5111AP MPEG-2 Encoder is a professional audio &video encoding device ,and it can be with SDI input.

This device can support a variety of analog and digital audio&video input interface,the video input interfaces

include the CVBS, S-Video and SDI , and audio input interfaces include the balanced and unbalanced analog

input interface, the analog audio input interface( XLR) and digital audio input interfaces( AES/EBU). Moreover,

this encoder can encoder the SD audio&video which format is MPEG-2. In conclusion, its high compatibility

and excellent encoding quality makes this device widely be used in a variety of digital broadcasting system.

Features

--- MPEG1 Audio Layer 2

--- Supports Composite, S-Video analog video input

--- MPEG-2 MP@ML(4:2:0) video encoding, advanced video pre-processing algorithms

--- Supports SD-SDI digital video input

--- Supports balanced and unbalanced analog audio inputs

--- Supports AES/EBU, SD-SDI digital audio input

--- Supports PAL, NTSC SD video formats

--- Supports D1,HD1,2/3D1,3/4D1 Resolutions

--- LCD / keyboard, network management

--- TS over UDP unicast/multicast output

Specifications

Input	Video	Analog composite video(CVBS), BNC interface
		S-Video interface
		SD-SDI, BNC interface
	Audio	Analog stereo audio(balanced), XLR interface
		Analog stereo audio(unbalanced), BNC interface
		AES / EBU digital audio, XLR interface
		SD-SDI embedded audio
Video	Resolution	720×480_60i, 720×576_50i(D1)
		544×480_60i, 544×576_50i(3/4D1)
		352×480_60i, 352×576_50i(HD1)
		480×480_60i, 480×576_50i(2/3D1)
	Encoding	MPEG-2 MP@ML(4:2:0)
	Bit-rate	0.8Mbps~20Mbps
	Rate Control	CBR/VBR
	GOP Structure	IBBP
	Advanced Pretreatment	De-interlacing, noise reduction, sharpening
Audio	Encoding	MPEG-1 Layer 2
	Sampling rate	48KHz,44.1KHz,32KHz
	Resolution	24-bit
	Bitrate	64Kb/s—384Kb/s
Stream output		2-way ASI output, BNC interface
Stream output		SPTS over UDP,10/100Base-T Ethernet interface (UDP unicast / multicast)
System function		LCD/keyboard, network management, Chinese and English language
System function		Ethernet software upgrade
