COL5141H MPEG2&H.264 AC3 Encoder
Outline
COL5141H MPEG2&H.264 AC3 Encoder is our new professional HD audio & video encoding device with
powerful functionality.It has equipped with 4 YPbPr/HDMI/CVBS (Pr in) channels input supporting MPEG-2
& MPEG-4 AVC/H.264 video encoding and DD CC (2.0), MPEG4-AAC, MPEG2-AAC, MPEG1 Layer II audio
encoding and CC (2.0/5.1/7.1) passthrough. It is also embedded with 4 CVBS port for CC (Closed Caption)
only.To meet customers’ various requirements,it is also equipped with 1 ASI input, and output with 2 ASI
ports and 1 IP port.
Features
- MPEG2 HD & MPEG4 AVC H.264 HD video encoding
- DD CC (2.0), MPEG4-AAC, MPEG2-AAC, MPEG1 Layer II audio encoding
- Support DD CC (2.0/5.1/7.1) passthrough (for HDMI interface only)
- 4* HDMI/YPbPrCVBS(Pr in) channels in
- 1*ASI in for re-mux;
- Support CC (Closed Caption) EIA608, (from CVBS source only)
- Support Low Delay
- LCN (Logical Channel Number) support
- LCD display, Remote control and firmware
- Web-based NMS management; Updates via web

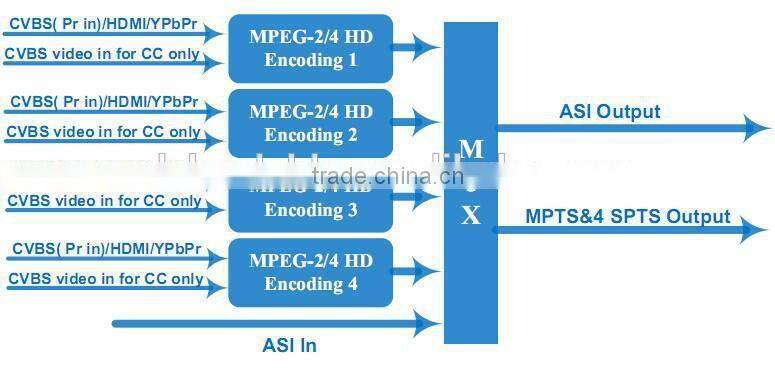

Principle Chart
Specifications
|
Encoding Section Video (HDMI) |
Encoding |
MPEG2;MPEG4 AVC/H.264 |
Interface |
HDMI*4 |
|
Resolution |
1920*1080_60P, 1920*1080_50P (For MPEG 4 AVC/H.264 only), 1920*1080_60i, 1920*1080_50i, 1280*720_60p, 1280*720_50P |
|
Low Delay |
Normal, Mode 1, Mode 2 |
|
|
Audio (HDMI) |
Encoding |
MPEG1 Layer II; MPEG2-AAC; MPEG4-AAC; DD CC (2.0) Optional; DD CC (2.0/5.1/7.1) passthrough |
Interface |
HDMI*4 /SPDIF*4 |
|
Sample rate |
48KHz |
|
Bit rate |
64/96/128/ 192/256/320kbps |
|
|
Video (CVBS/YPbPr) |
Encoding |
MPEG2; MPEG4 AVC/H.264 |
Interface |
CVBS/YPbPr*4 (RCA) |
|
Resolution |
CVBS: 720*576_50i, 720*480_60i YPbPr:1920*1080_60i, 1920*1080_50i; 1280*720_60p, 1280*720_50P |
|
Low Delay |
Normal, Mode 1, Mode 2 |
|
|
Audio (L/R) |
Encoding |
MPEG1 Layer II; MPEG2-AAC; MPEG4-AAC; DD CC (2.0) Optional |
Interface |
4*Stereo/8*mono/4*SPDIF |
|
Sample rate |
48KHz |
|
Bit rate |
64/96/128/ 192/256/320kbps |
System |
Local interface |
LCD +control buttons |
Remote management |
Web NMS |
|
Stream Out |
2 ASI mirrored out (BNC type, 100M); IP (MPTS&4 SPTS) over UDP, RTP/RTSP out (RJ45, 100M) |
|
NMS interface |
RJ45, 100M |
|
Aspect Ratio |
4:3; 16:9 |
|
Language |
English |
|
General |
Power supply |
AC 100V~240V |
Dimensions |
482*400*44mm |
|
Weight |
4.5 kg |
|
Operation temperature |
0~45℃ |
Our advantages
Products Qulity: Most of our products get CE approved:set top box have report from State
Administration for Entry Exit Inspection and Quarantine.
Technical Support:Our R&D department is composed br the most experienced engineer with
young university graduate,bring new energy continuously. Customers will be informed at first
time as long as our software upgrade or new management software version come out .
Shipment Speed:All packages of orders will be shipped 2-5 days sfter customer deposit.
Usually we use the speediest DHL/UPS/Fedex for small order delivery,and we have long
erm cooperated carriers for common air & sea delivery with cheap price and high speed.
Guarantee:All products will have life-long skill support ,head ends for free repair within 3 years.

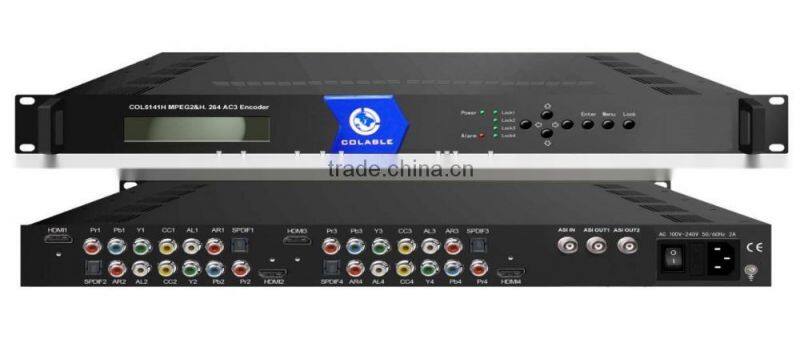

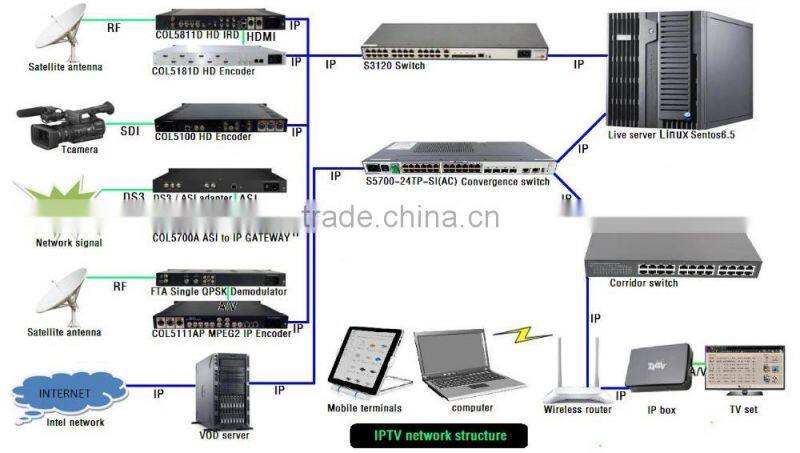

Some pictures for reference
