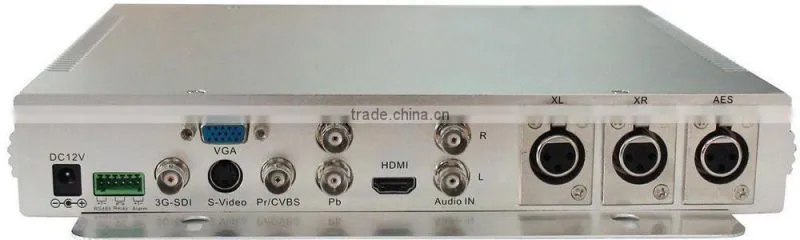

HD H.264 Flash Media Encoder,1080P IP Media Encoder (RTP/UDP/RTMP) COL5100F

HD H.264 Flash Media Encoder,1080P IP Media Encoder (RTP/UDP/RTMP) COL5100F thumbnail-1
HD H.264 Flash Media Encoder,1080P IP Media Encoder (RTP/UDP/RTMP) COL5100F photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Colable
Model Number:
COL5100F
Place of Origin:
Sichuan, China
Contact Supplier Request Quote Chat Now
Colable Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Chengdu
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Colable
Model Number COL5100F
Place of Origin Sichuan, China

COL5100D  HD H.264 Flash Media Encoder,1080P IP Media Encoder



        HD H.264 Flash Media Encoder,1080P IP Media Encoder (RTP/UDP/RTMP) COL5100F



Outline



COL5100F is a HD Flash Media encoding device. This device support 1080P and the encoding IP stream

was transmitting by IP network. Connecting to Adobe Flash Media Server, the COL5100F captures data from

various analog and digital audio and video sources and encodes in MPEG4 AVC (H.264) format. For direct

broadcasting or transmission over a network or the Internet, the output of COL5100F can work as Adobe®

Flash® Media Encoder and uncompressed data can be easily encoded into web-based video.



Features



ü Alarm input/output and audio alarm

ü PTZ for setting and calling preset position, cruise and track support

ü H.264 video compression

ü MPEG-2/AAC/G.711 audio compression

ü High compression rate, proceed capsulation by TS stream and FLV

ü Complete TCP/IP protocol, A/V transmission through TCP/IP network and embed WEB for preview support

ü Duplex talk and unidirectional broadcasting support

ü PAL/NTSC support

ü POE support

ü OSD support

ü OVERLAY support

ü MOTION-DETECT support

ü Start/end time configuration support

ü TCP/UDP/RTMP support

ü Able to real-time record the compressed code stream through network

ü Able to upgrade and realize maintenance through network

ü Embed WEB,able to visit video server through web

ü Encrypt user name, command and code stream with password to prevent leaking

ü Check device state through network

ü Real-time browser of any one-channel or multi-channel A/V signal by web



Specifications



Video encode format

H.264

Resolution

1920x1080i, 1440x1080, 1280x1024, 1280x960, 1280x720,

1024x768, 800x600, 720x576i, 720x480i, 704x576, 704x480,

640x480, 352x288, 352x240, 320x240,

Video input interface

BNC(level:1.0Vp-p,impedance:75Ω), PAL/NTSC

CVBS,S-VIDEO,VGA,YPbPr,HDMI,3G-SDI

Video frequency

PAL:1/16—50fps/s,NTSC:1/16—60fps/s

Code stream type

ES,TS,FLV

AV input channel

1 channel video,1 channel audio

Compression output

code steam rate

32K--12M or user-defined(upper limit:12M,unit: Mbps)

Video color control

Luminance, contrast, chrominance, saturation

Ratio type

CBR, VBR

OVERLAY

Overlay-area can be self-defined by user

OSD

Channel name, date and time, site adjustable

PTZ

PELCO standard

Storage mode

USB

Transmit mode

TCP/UDP/RTMP

Audio encode format

AAC

Audio encode rate

16K/64K/128K/256Kbps

Audio input/output

RCA(level:0.5Vp-p,impedance:75Ω)

XLR(level:0.5Vp-p,impedance:600Ω)

AES

Voice talkback input/output

1 Channel(level:0.5Vp-p,impedance:1kΩ)

Communication port

Ethernet port, WIFI

Alarm input

1 switch-output

Alarm output

1 switch-output

Power

DC12V

Consumption

≤20W

Temperature

-10℃--+55℃

Operating humidity

10%--90%

Dimensions(mm)

44mm×181mm×258mm

44mm×278mm×258mm

Weight

≤1Kg



Our advantages



 Products Qulity:  Most of our products get CE approved:set top box have report from State

  Administration for Entry Exit Inspection and Quarantine.



 Technical Support: Our R&D department is composed br the most experienced engineer with

 young university graduate,bring new energy continuously. Customers will be informed at first

 time as long as our software upgrade or new management software version come out .



 Shipment Speed: All packages of orders will be shipped 2-5 days sfter customer deposit.

 Usually we use the speediest DHL/UPS/Fedex for small order delivery,and we have  long

  erm cooperated carriers for common air & sea delivery with cheap price and high speed.



 Guarantee: All products will have life-long skill support ,head ends for free repair within 3 years.

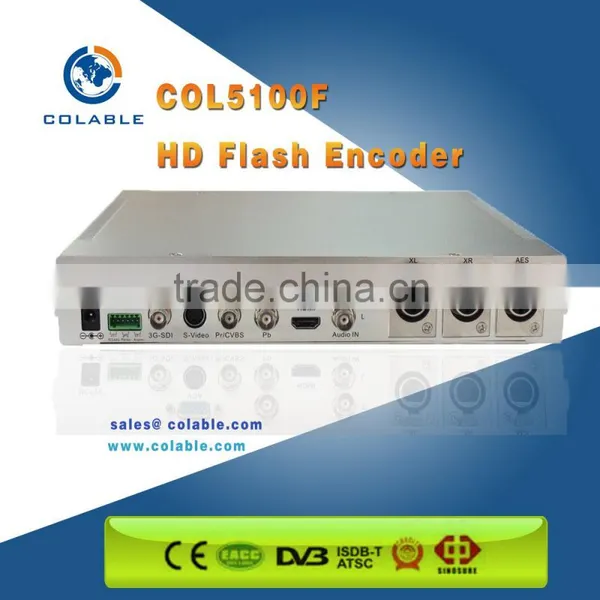

Some pictures for reference
