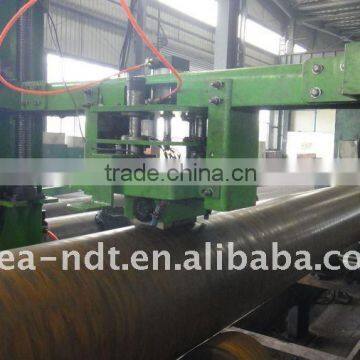

Carbon Steel Ultrasonic and Eddy Current Testing Service

Specifications

low carbon steel mechanical ultrasonic test and eddy current testing device

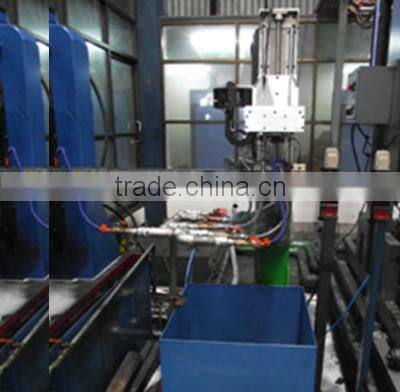

1. seamless steel tubes ultrasonic testing devic

Intelligent Digital Multi-channel ultrasonic testing device uses the most advanced digital electronic technology and ultrasonic technology.With beautiful design,steady performance, easy operation and favorable price, which is the full-digital intelligent ultrasonic detector that has the excellent price versus performance ratio.



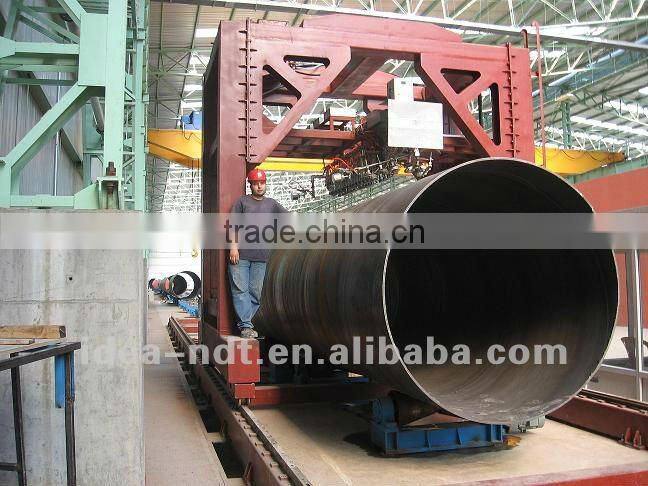

The instruments can be widely used for titanium tube, zirconium tubes, book-walled pipe, seamless steel tubes, welded gas and oil pipelines, nonferrous metals, ferrous metals and some non-metallic pipes, rods, plates and other profiles, and the rail, automatic (or semi-automatic) non-destructive ultrasonic testing.



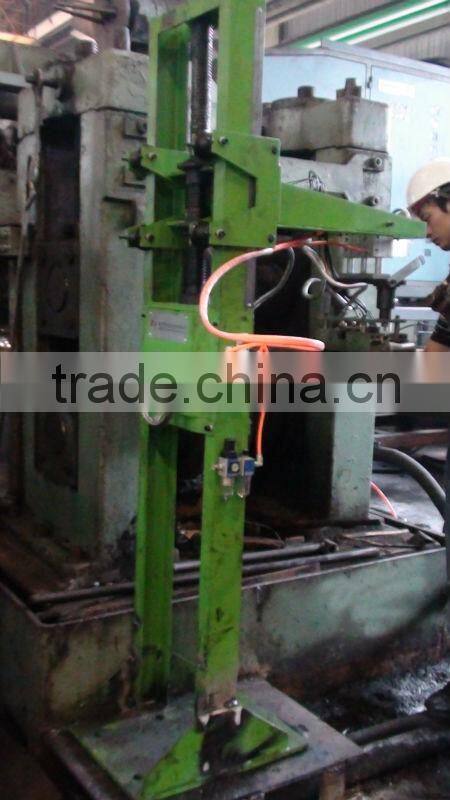

Features of ultrasonic testing device



Independence of the channel type, switching to receive, can work in free circulation and combination.



Digital equipment, powerful functions



Simple system configuration , flexible hardware frame, through the various communications link, can reach the demands of 128 or more channels .



Meet the needs of the project, can allow for motor control and I/O interface.



Each channel has three strobes, alarm strobe, tracking strobe, self locking strobe;



Complete alarm function, can meet different kinds of needs of the automatic detection system

Use of advanced alarm circuit technology which is effective to inhibit the outside interference, strong capacity of resisting disturbance, can improve the reliability of the alarm.



Software is modularized ,and can according to your need to be configured.



Advanced instrument circuit design and process design , reliable performance, steady operation.

File editing function: can storage, invocation, play back and print the testing conditions and flaw wave form, then form the test report .



Communication function :  Adopt TCP/IP protocol and upper monitor to communicate, and through the upper monitor to control this instrument, not only can use this instrument to directly ultrasonic test, also can use the upper monitor to control it by cable and wireless network .



The updating of various softeware, can be specially designed the software to meet the special demands for users.



Main Technical Data of ultrasonic testing device



Gain	0-100dB,step 0.1dB
Detection channels	1,2,4,8,16
Operation mode	Single probe transmitter and receiver, dual probe transmitter and receiver
Scan mode	A,B,C type scan
Surplus Sensitivity	≥65dB
Resolution	≥36dB
Dynamic range	≥42dB
Scan range(steel longitudinal wave)	0~6000mm
Frequency range	0.5~20MHz
Repetition frequency	100Hz~10KHz adjustable
Vertical linearity	≤3%
Horizontal linearity	≤1%
Strobe setting	Each channel has three strobes, alarm strobe, tracking strobe, self locking strobe
Marking delay	split in two,delay time is 0.5~10S,step 0.1S
testing conditions and flaw wave form	Quantity unrestricted,invocation,wave replay,wave communicate,wave print
Test report	Autogenerate(WORD ,EXECL)
Parameter storage	Detection state parameters,echo pattern,DAC curve and remark information etc.
Clock Type	Inner, outer CLOCK
Encoder	50-1024 (Optional)
Detector mode	positive, negative, bi-directional, radio frequency (RF)
Peak memory	Can choose echo peak memory display,background  peak wave can be in a different color represents.
SA,PA,RA,%	Real-time display
