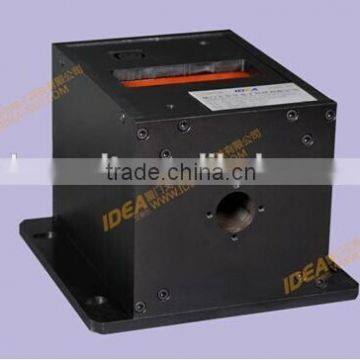

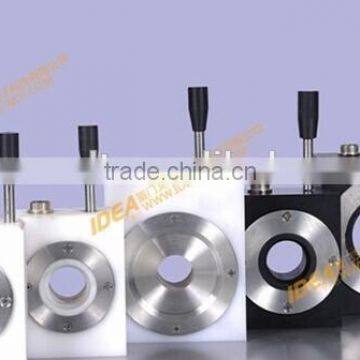

Encircling Probe Eddy Current Detecting

Encircling probe Eddy Current detecting

1.Encircling probe Eddy Current detecting
2.Eddy current Corrosion 100mhz probe
3.NDT probe

Specifications

Eddy current Corrosion 100mhz probe
IDEA 006 Eddy current saddle probles
Test probe
NDT probe

1 Introduction:

Not affect the production schedule, the on-line eddy current flaw testing system is installed in the production line, to test if there is any crack, air hole, slag inclusion etc. for the workpiece, which makes the producing and detecting can be finished at the same time.

The whole set of system includes detector units, machinery, electric, pneumatic and associated accessories, totally five parts. Adopting self-research eddy current testing technology of IDEA company, using the independence plane analysis and multiple image phase amplitude zone alarm technology, it can automatically find out the defects, and finish alarm, marking and sorting signal output.

2 Tested object: seamless tube, longitudinal welded tube, bar, wire rod, and profiled bar etc.

3 Tested material: carbon steel, stainless steel, copper, aluminium, titanium etc. different kinds of nonferrous and ferrous metals.

4 Testing speed: 0-350m/min

5 Testing mode: 1) Through type  probe, the workpiece pass through the eddy current probe

                             2)Segment probe, the probe is installed on the surface of the workpiece

6 Testing standard: GB/T 7735-2004

                                  GB/T 11260-2008

                                 YB/T 4083-2000

on-line EDT

  Eddy current probe and automation control cabinet

Tina Tian

Maketing Department

Xiamen IDEA Electronic Technology Co., Ltd

Tel:  +86-0592-6301905

Fax:  +86-0592-6301919

Mobile: +86-18603019887

Web:

Address: Floor 3, NO.20,Tong'an industrial park, Huangdong Waters, Tong'an, Xiamen ,China 361100
