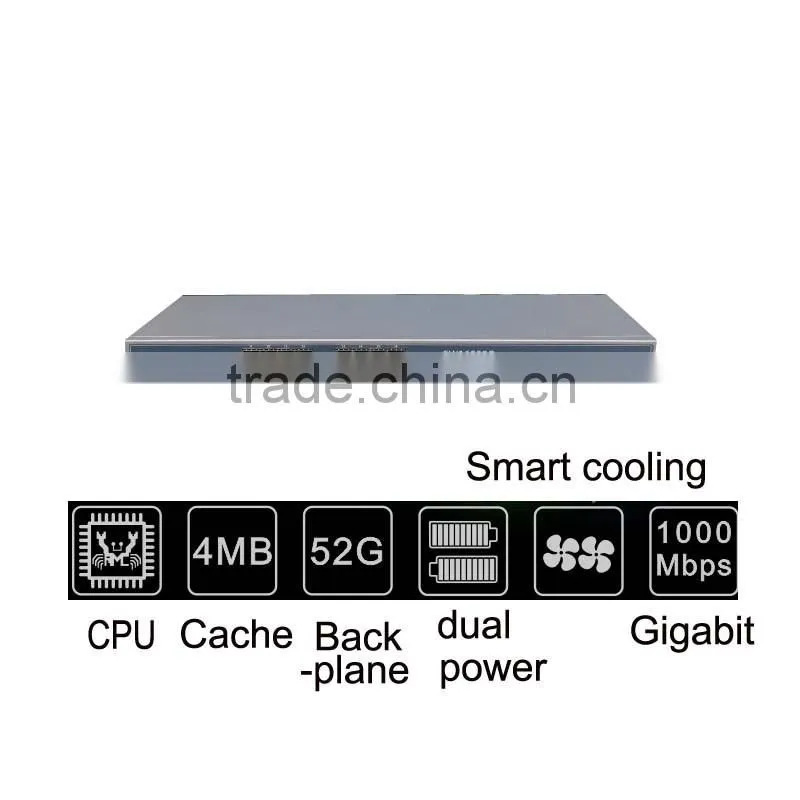

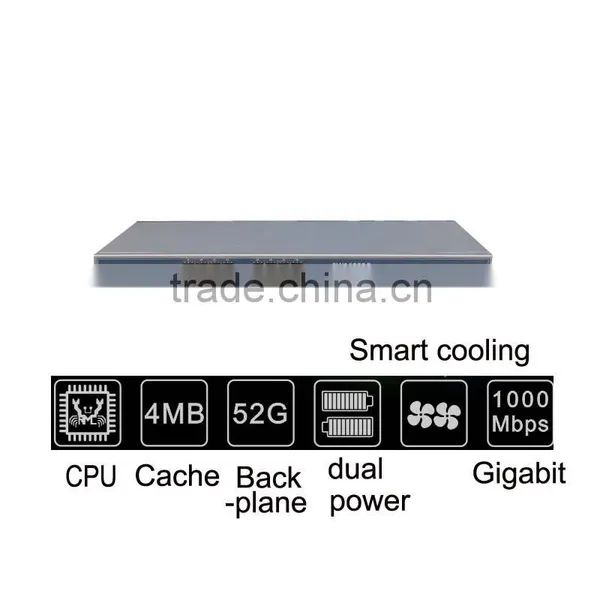

16 port fiber switch 16*giga SFP ports and 8*GE TX port Layer2 unmanaged dual power supply
SW1608G is a layer 2 unmanaged full gigabit fiber switch. The switch supply 16*giga SFP and 8*10/100/1000Mbps TX ports. The switch can be used in IP camera security project, small data center or wireless coverage project.
Main Feature:
8*10/100/1000M Rj45 TX ports
16*1000M SFP fiber ports
500M CPU processor,52G system backplane bandwidth
Double power supply design, intelligent temperature control system
Compliant with IEEE 802.3,IEEE 802.3u,IEEE 802.3a
Flow control: IEEE 802.3x at duplex, Back pressure at half-duplex
Auto MDI/MDIX support
Store-and-forward switching mechanism
All ports support line speed switching, support frame transmission
Plug and play
Datasheet
Model |
SW1608G |
|
Ports |
1000M Rj45 |
8*GE TX |
SFP |
16*GIGA SFP |
|
performance |
Store-and-forward |
Support |
backplane |
52G |
|
Main chip |
500 Frequency of 4M cache |
|
MAC address table |
16K |
|
|
Environment |
Work Temp.:0~40 Store Temp.:-40~70 |
|
|
Work hum.:10%~90% RH Store hum.:5%~90% RH | ||
|
Input power cooling system |
AC input 110~240V 50/60HZ Built-in double power supply, automatic synchronization switching function Double fan, automatic temperature control and failure alarm |
|
|
Standard and protocol |
IEEE 802.3 IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3z 1000BASE-X IEEE 802.3x Flow Control |
|
Default work model |
Ethernet switch |
|
|
Data transmission |
Ethernet 10Mbps half-duplex,20Mbps duplex Fast Ethernet 100Mbps half-duplex,200Mbps duplex Gbit Ethernet 1000Mbps half-duplex,2000Mbps duplex |
|
Network medium |
10Base-T: 2 pair Cat3 UTP/STP(≤100m) 100Base-TX: 2pair Cat5 UTP/STP(≤100m) 1000Base-T: 4pair Cat5e UTP/STP(≤100m) 1000Base-SX:62.5μm/50μm MMF(2m~550m) 1000Base-LX:62.5μm/50μm MMF(2m~550m) or 10μm SMF(2m~5000m) |
|
Physical specifications |
Product size:440mm*205mm*45 mm(L*W*H) Package size:497mm*393mm*97mm(L*W*H) weight:3.2kg |
|
Model: SW1608G
Description:8*10/100/1000M Rj45 + 16* giga SFP fiber ports
