China supplier 1000 watt max Permanent Magnet Wind Turbine Generator
Techenique Data
| Model | FD2.7-1000 W | ||||||
| Rated power(w) | 1000W | ||||||
| Rated voltage(V) | 24 OR 48 | ||||||
| Rotor diameter(M) | 2.7 | ||||||
| Star up wind speed (M/S) | 2 | ||||||
| Rated wind speed (M/S) | 10 | ||||||
| Shell material | Die-cast alumium | ||||||
| Blade material | High strength Nylon composite | ||||||
| Motor Type | Three-phase permanent magnet alternator | ||||||
| Blade number | 3 | ||||||
| Yaw Mode | Fixed-wing | ||||||
| Certification | CE/EWC/ISO9001:2008/GMC | ||||||
| Tower height(m) | 6 | ||||||
| Suggested Batteries capacity | 12V200AH*2 | ||||||
| Inverter type | sine wave | ||||||
| Package weight(kg) | 19 | ||||||
| Package size(cm) | 108.5*47*20 | ||||||
| Packing | Carton and foam |
Description
1. FD series wind turbine generator adopts NSK bearings imported from Japan,
greatly decrease the torque and start-up wind speed.
d turbine generator 's Blades adopt high strength composite materials, has good
strength and toughness, life time can be 5 to 10 years
3. The shell is made of high strength die-casting aluminum alloy using advanced
manufacturing technology, light weight, high strength,not rust, corrosion,heat dissipation
is greatly increased.
4. Generator use the carbon brush and brush ring structure, the electricity from the
carbon brush to brush ring, brush ring will be electrical leads, wind turbines spin put
an end to the cable by wring phenomenon.
5. FD Generator adopts automatic device to the wind, the generator automatically
adjust the wind direction

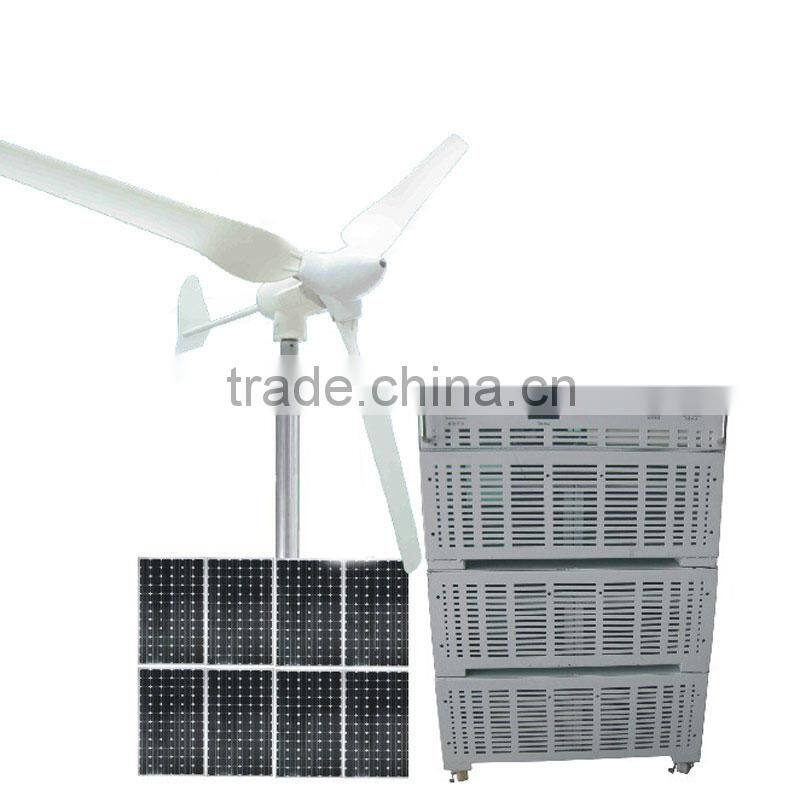

Picture Shows

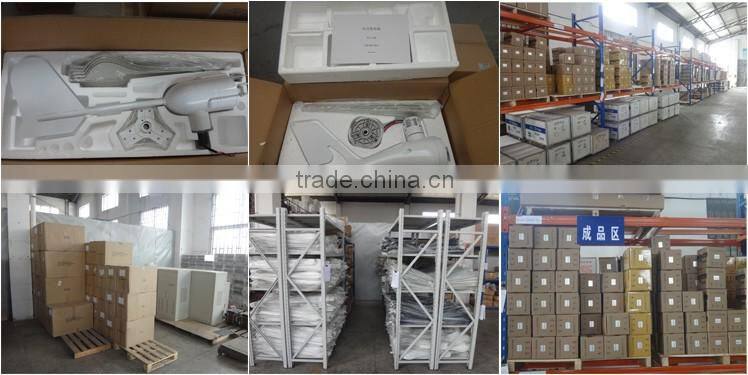

Package Shows
1. Wind turbine use inner foam protection outer Polywooden case .
2.For big wind turbine, we use polywood.
3. Solar panels controller invertor with inner carton box outer polywooden case.
4. Pakage size and weight please refer to our sales.
5. Shipping by sea with FCL LCL or by air .
If you have other request, please contact freely

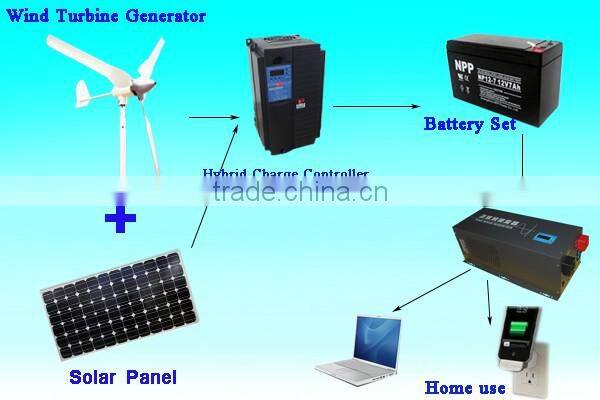

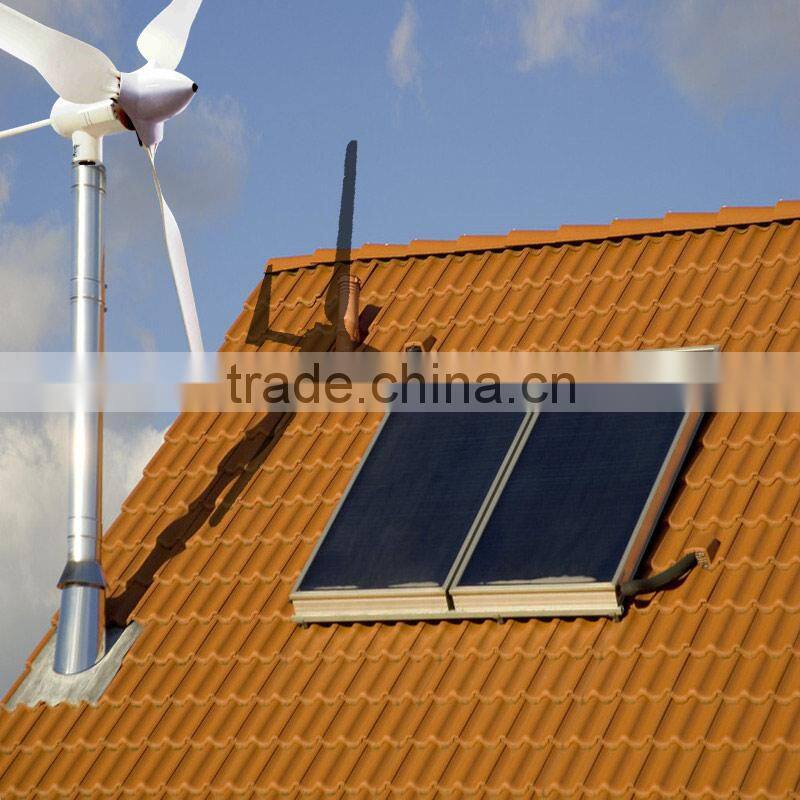

Application

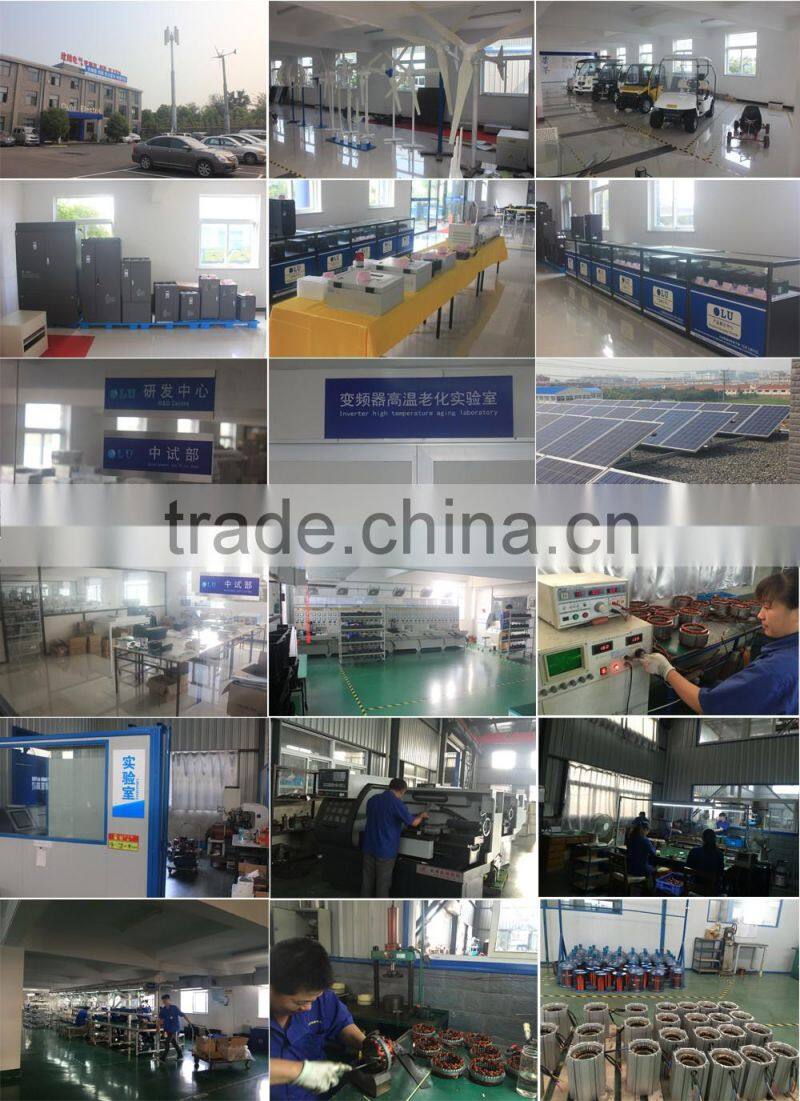

Company Shows
1. Q:How long of warranty?
A: Normally we have 5 years warranty
2.Q: Can I buy a sample only ?
A: Definitely of course . For sample we can give special price .
3. Q: Do you have nose cone or hub for match the blades?
A: yes we have related FRP nose cone and hub plate to match different model.
4.Q:Wich model is suitable for my wind generator ?
A: Plese contact our sales with following points :
1. What is your wind turbine rated power.
2. Tell me what wind speed in your place?
