Specifications
Z946 Casting core shooterPLC control
Adjustable technics parameters
Mold tempe
Company indroduction:
Qingdao Powerful Mechanical & Electrical Co., Ltd. is a large-scale enterprise specialized in the production of mechanical moulding line. The main products are: the production line of clay sand casting equipment ,V method casting equipment, sand reclamation equipment ,resin sand molding production line of glass sand reclamation equipment of mechanized moulding lines; series mixer; bucket elevator and climbing charge; series of environmental protection dust remover and so on..
Products Detail:
Z946 Casting core shooter machine
1:core shooter machine adopt special design, no big bottom-closing-force during sand shooting, no shock and big force to machine frame.
2: Quick and convenient sand cleaning system for shooting head, shooting
3: plate, sand shooting nozzel.
4: Quick hydraulic metal mould change system.
5: Advanced and powerful low-pressure sand shooting device.
6: Top and bottom core ejection system. Pre-press quick core stripping, small damage, no core-repairing
7: Outer-machine-core-picking, stable core ejection, convenient for core-picking.
8: Gas generator adopt magnetic pump, high guaging precision, long service life time.
Z946 Casting core shooter machine technical parameter:
Type |
Z946 |
Molding plate size(mm) |
750*400 |
Cover die thick(mm) |
150 |
Movable mould minimum thick(mm)250 |
|
Maximum sand core weight(kg) |
20 |
Sand copper capacity(kg) |
200 |
Control |
Pneumatic/hydraulic |
Electric heating power(KW) |
30 |
Operation mode |
manual/automatic |
Special design based on the requirements of client is available

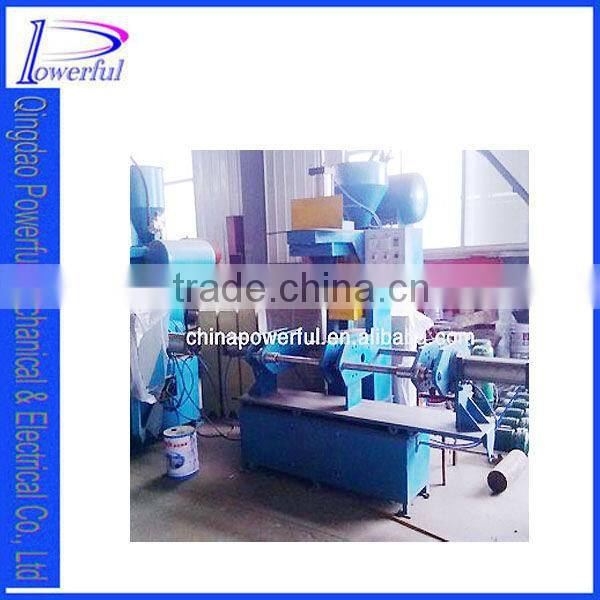

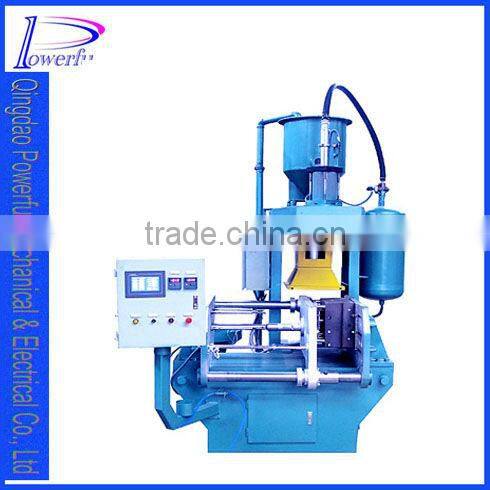

Z946 Casting core shooter machine picture:
Casting core shooter picture:
we have other prodution as follows:
shot blasting machine
sand preparing equipmentsand mixer
v method/production line
molding machine
core shooter/shooting machine
spare parts off shot blasting machine
blast wheel…
