QT4-23 Best Popular New Product Vibrated Block Making Machine

QT4-23 Best Popular New Product Vibrated Block Making Machine photo-1
US$ 7,500 - 9,700 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Hollow Block Making Machine
Brick Raw Material:
Concrete
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Hollow Block Making Machine
Brick Raw Material Concrete
Processing Brick Production Line
Method Other, power-driven
Automatic Yes
Capacity 30200-32800PCS/10 HOURS
Place of Origin Shandong, China
Brand Name Huali
Model Number QT4-23
Voltage 380v or according to your local voltage
Power 14.1kw
Dimension(L*W*H) 3300x1600x2300mm
Certification ISO9001/SGS/BV
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

QT4-23 best popular new product vibrated block making machine
1.Hot sale new product
2.PLC control
3.Factory price



QT4-23 best popular new product vibrated block making machine

1.Main Techinical Spedification:

Overall size

3300*1600*2300mm

 QT4-23 best popular new product vibrated block making machine

Molding cycle

23s

Weight

2.1T

Pallet size

850*480*30mm

Rated power

14.1kw

Vibration force

50KN

Vibration frequency

2800-4200 r.pm

Control

PLC control

Motor

Siemens



2.QT4-23 best popular new product vibrated block making machine Capacity:

Item

Specification

Quantity per hour

PSC/Mold

Concrete block

390×190×190

400-480

4

Solid block

240×115×53

2000-2800

21

Porous block

240x115x90

1200-1800

10



QT4-23 best popular new product vibrated block making machine Advantages and Characteristics

1.PLC Control,full automatic,so it is easy in operating, and durable in use.



2.very low investment,can save cost quickly,is the ideal choice for small and medium factory



3.siemens motor,electric control,comparing to the traditional brick machine,

more than 20% of electric power can be saved.



4.This machine is automatic in material feeding, martial distributing,

material scraping and carriage plate placing.



5.Have two kinds of mixer for choice(JQ350 1.5m or 1.2m),

an brick platform can be catch blocks convenient.



6.With it’s multi-functional characters,the molds are changeable

QT4-23 best popular new product vibrated block making machine

3.QT4-23 best popular new product vibrated block making machine Other working information:

Working Shed

Working site

2000sq.m



Working Shed

300sq.m



Raw Material Work Shop

300sq.m



Office

30sq.m

Other

Staff And Workers

3-5 person



Power Distribution

22kw



Water Consumption

4T per day



Pallets need

1500pcs

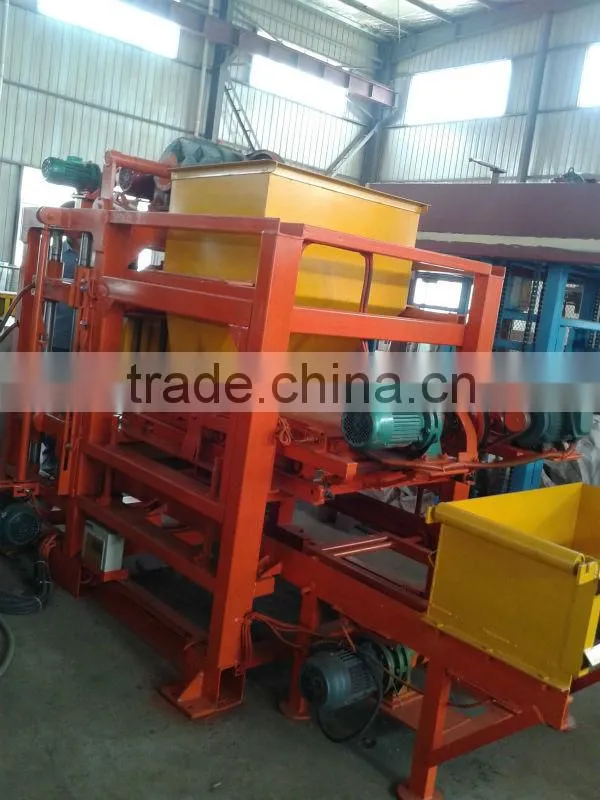

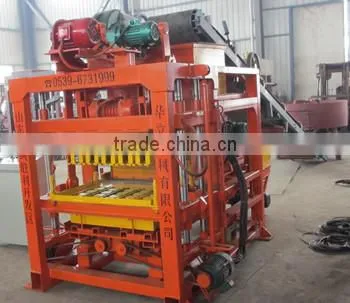

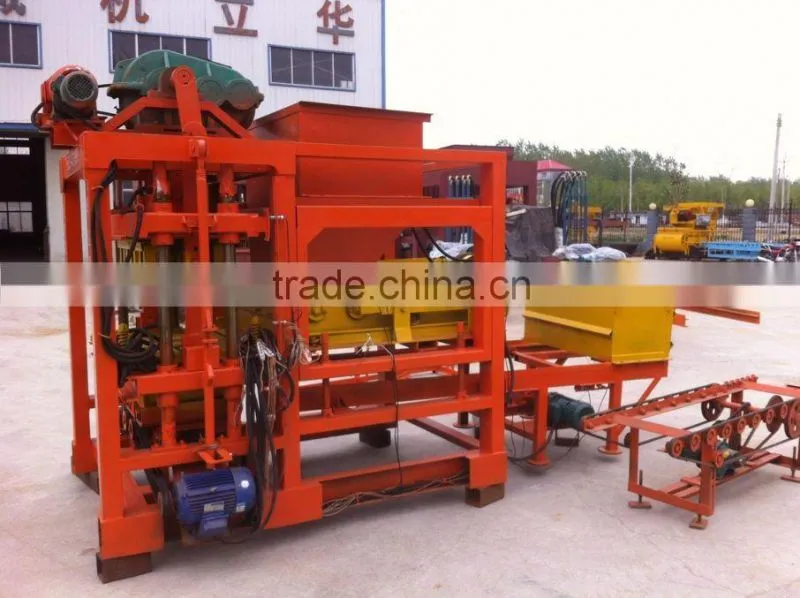

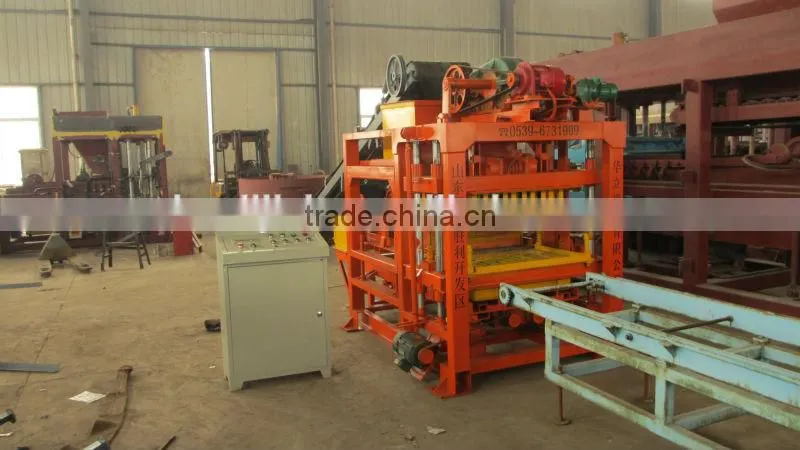

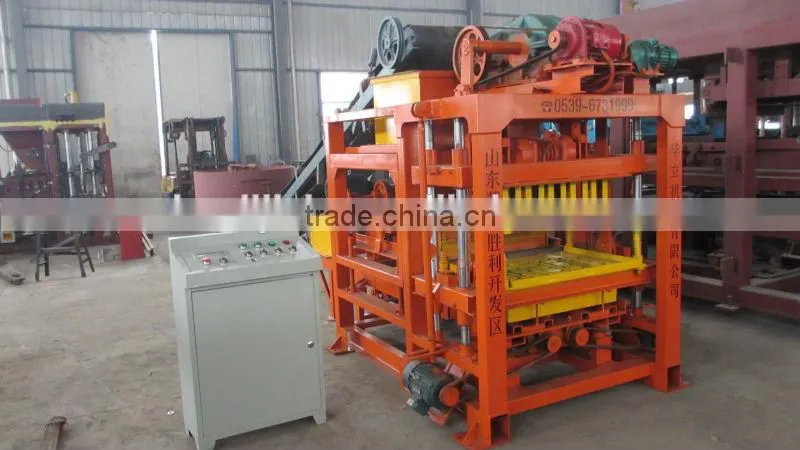

QT4-23 best popular new product vibrated block making machine Photoes show

QT4-23 best popular new product vibrated block making machineQT4-23 best popular new product vibrated block making machine

QT4-23 best popular new product vibrated block making machineQT4-23 best popular new product vibrated block making machine

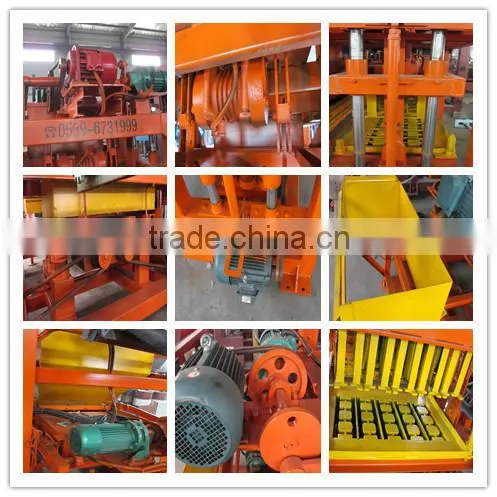

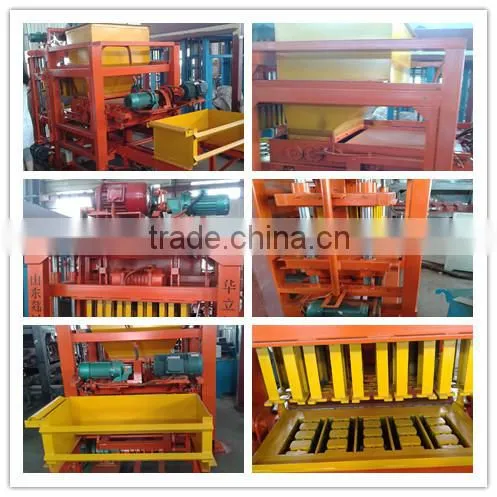

Parts of QT4-23 full automatic brick machine:

QT4-23 best popular new product vibrated block making machine

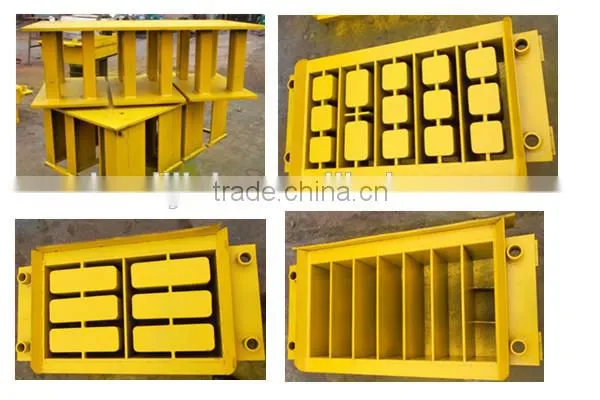

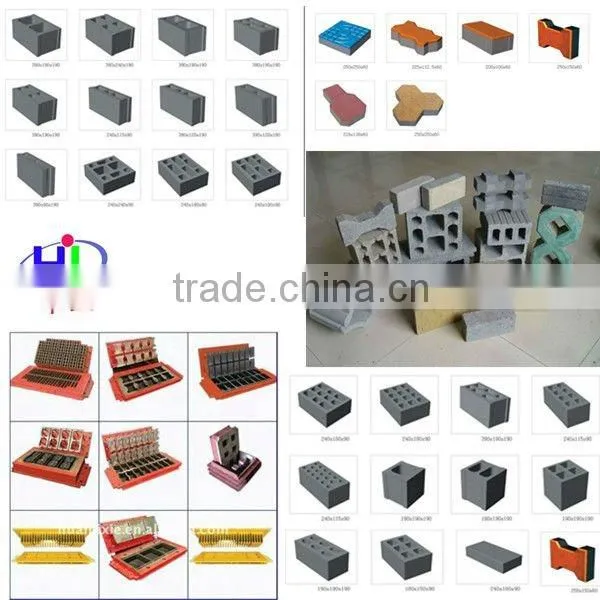

4.QT4-23 best popular new product vibrated block making machine Optional Moulds:

QT4-23 best popular new product vibrated block making machine

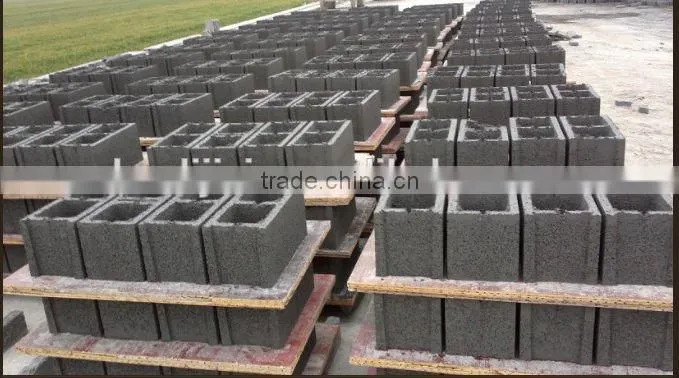

5.QT4-23 best popular new product vibrated block making machine Block samples:

QT4-23 best popular new product vibrated block making machineQT4-23 best popular new product vibrated block making machine

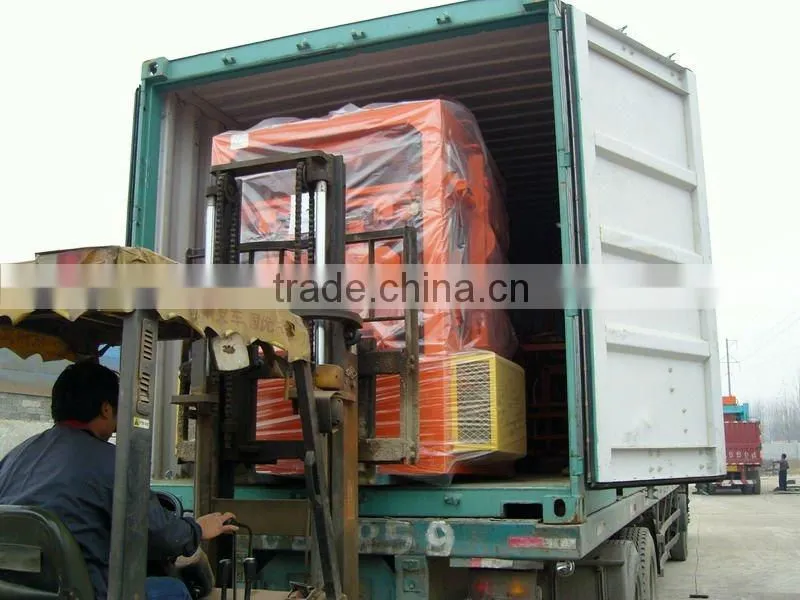

QT4-23 best popular new product vibrated block making machine Shipping and Conditions

1. FAST SHIPPING from our Linyi China Factory!

2. Delivery time: 15-20 working days after receive deposit.

3. Shipping Cost: Depending on the German concrete blocks making machine size

 and weight of total order.

4. Accept the FOB/CIF/DAF terms of trade.

5. Payment Term: 30% deposit,70% balance by T/T, or by L/C.

6. B/L will be sent to you as soon as after delivery.

QT4-23 best popular new product vibrated block making machine



After sales Service

1. Free one year warranty and after service for whole life.



2. Free one set of enough good spare parts, Free technical, Installation and Machine Maintenance Training.



3. Free design installation drawing according to your condition. One to one service.



4. Supply all the documents as your request, in order to clear customs.



5. Your special requests are also welcomed for discussion.
