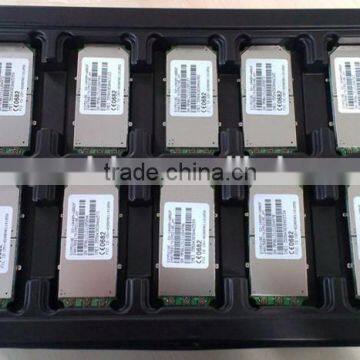

SIMCOM 4G Module Sim7100E

 SIMCOM 4G module sim7100EC

4G SIM7100E Specifications:

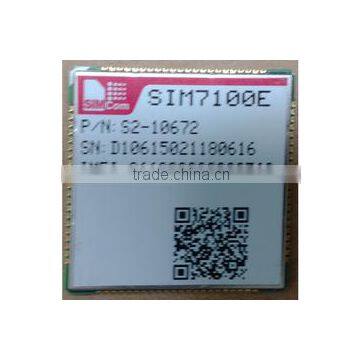

 SIM7100E LTE FDD Module

SIMCom presents an ultra compact and reliable wireless module SIM7100Ewhich is based on Qualcomm MDM9215 multiplemode LTE platform. SIM7100E is a complete multi-band TDD-LTE/FDD-LTE/TD-SCDMA/WCDMA/GSM/GNSS SMT type module designed with very powerful processors integrating application core:ARMv7 Cortex™ A5(1GHz), dual Telecom core (Up to 500Mhz), Cortex-M3 cores, allowing customer to benefit from small dimensions and cost-effective product solutions. It has strong extension capability with rich interfaces including UART, USB2.0, SPI, I2C,Keypad, PCM, etc. With abundant application capabilities like TCP/UDP/FTP/FTPS/HTTP/HTTPS/SMTP/POP3 and MMS, the module provides much flexibility and ease of integration for customer’s applications.

General features

• Four-Band TDD-LTE B38/B39/B40/B41

 • Tri-Band FDD-LTE B1/B3/B7

 • Dual-Band TD-SCDMA B34/B39

• Dual-Band UMTS/HSDPA/HSPA+ B1/B5

• Tri-Band GSM/GPRS/EDGE 850/900/1800 MHz

• Control Via AT Commands

• Supply voltage range: 3.4V~ 4.2V

 • Operation temperature: -40℃ to +85℃

• Dimension: 30 X 30X 2.9 mm

 • Weight: 5.7g

 • GNSS gpsOne Gen 8B;standalone;assisted,XTRA;

Specifications for Data transfer

 • TDD-LTE/FDD-LTE - Uplink up to 50Mbps, - Downlink up to 100Mbps

 • TD-HSDPA/HSUPA - Uplink up to 2.2 Mbps, - Downlink up to 2.8 Mbps

• TD-SCDMA - Uplink up to 128Kbps, - Downlink up to 384Kbps

• HSPA+ - Uplink up to 11 Mbps, - Downlink up to 42 Mbps

• UMTS - Uplink/Downlink up to 384Kbps

• EDGE Class: - Max. 236.8Kbps(DL),Max. 236.8Kbps(UL)

• GPRS - Max. 85.6Kbps(DL), Max. 85.6Kbps(UL)

• CSD - GSM data rate 14.4Kbps - WCDMA data rate 57.6Kbps - WCDMA 64kbps CSD for Video call

Other features

• USB Driver for Microsoft Windows 2000/XP/Vista/Win7/Win8

• USB Driver for Windows CE/Mobile

• USB Driver for Linux 2.6/Android

• USB Driver for MAC

• RIL supporting for Android/Windows CE/Mobile

• Automatic installation

• Linux API SDK

 • Firmware update via USB

• TCP/IP/IPV4/V6 Multi-PDP,MT PDP

• FTP/FTPS/HTTP/HTTPS/SMTP/POP3/DNS

• Jamming detection support

• Gobi SDK to the Win7/Win8/Linux

• Source code of the PC manager of the device for reference

Interfaces

• USB2.0

• UART

• SIM card

• SPI

 • I2C

• Keypad(5*5)

• Constant current sink

• GPIO

• RTC

• ADC

• PCM

• SDIO
