SIMCOM SIM7100C 4G LTE FDD Module
4G LTE SIM7100C Specifications:

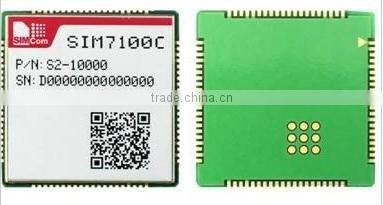

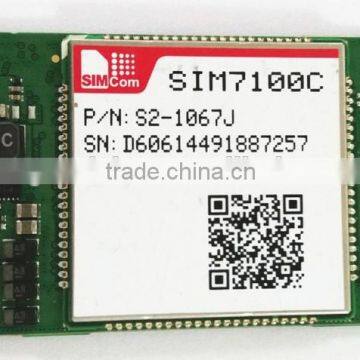

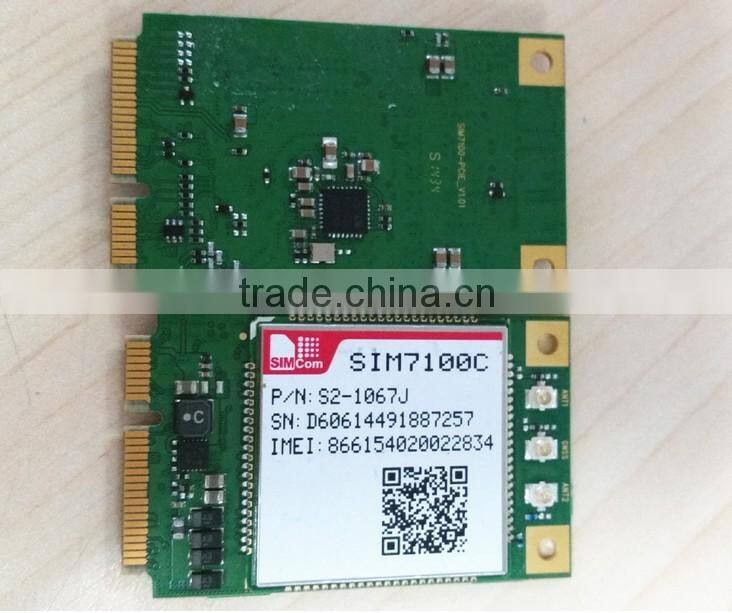

SIM7100C LTE FDD Module
SIMCom presents an ultra compact and reliable wireless module SIM7100C which is based on Qualcomm MDM9215 multiplemode LTE platform. SIM7100C is a complete multi-band TDD-LTE/FDD-LTE/TD-SCDMA/WCDMA/GSM/GNSS SMT type module designed with very powerful processors integrating application core:ARMv7 Cortex™ A5(1GHz), dual Telecom core (Up to 500Mhz), Cortex-M3 cores, allowing customer to benefit from small dimensions and cost-effective product solutions. It has strong extension capability with rich interfaces including UART, USB2.0, SPI, I2C,Keypad, PCM, etc. With abundant application capabilities like TCP/UDP/FTP/FTPS/HTTP/HTTPS/SMTP/POP3 and MMS, the module provides much flexibility and ease of integration for customer’s applications.
General features
• Four-Band TDD-LTE B38/B39/B40/B41
• Tri-Band FDD-LTE B1/B3/B7
• Dual-Band TD-SCDMA B34/B39
• Dual-Band UMTS/HSDPA/HSPA+ B1/B5
• Tri-Band GSM/GPRS/EDGE 850/900/1800 MHz
• Control Via AT Commands
• Supply voltage range: 3.4V~ 4.2V
• Operation temperature: -40℃ to +85℃
• Dimension: 30 X 30X 2.9 mm
• Weight: 5.7g
• GNSS gpsOne Gen 8B;standalone;assisted,XTRA;
Specifications for Data transfer
• TDD-LTE/FDD-LTE - Uplink up to 50Mbps, - Downlink up to 100Mbps
• TD-HSDPA/HSUPA - Uplink up to 2.2 Mbps, - Downlink up to 2.8 Mbps
• TD-SCDMA - Uplink up to 128Kbps, - Downlink up to 384Kbps
• HSPA+ - Uplink up to 11 Mbps, - Downlink up to 42 Mbps
• UMTS - Uplink/Downlink up to 384Kbps
• EDGE Class: - Max. 236.8Kbps(DL),Max. 236.8Kbps(UL)
• GPRS - Max. 85.6Kbps(DL), Max. 85.6Kbps(UL)
• CSD - GSM data rate 14.4Kbps - WCDMA data rate 57.6Kbps - WCDMA 64kbps CSD for Video call
Other features
• USB Driver for Microsoft Windows 2000/XP/Vista/Win7/Win8
• USB Driver for Windows CE/Mobile
• USB Driver for Linux 2.6/Android
• USB Driver for MAC
• RIL supporting for Android/Windows CE/Mobile
• Automatic installation
• Linux API SDK
• Firmware update via USB
• TCP/IP/IPV4/V6 Multi-PDP,MT PDP
• FTP/FTPS/HTTP/HTTPS/SMTP/POP3/DNS
• Jamming detection support
• Gobi SDK to the Win7/Win8/Linux
• Source code of the PC manager of the device for reference
Interfaces
• USB2.0
• UART
• SIM card
• SPI
• I2C
• Keypad(5*5)
• Constant current sink
• GPIO
• RTC
• ADC
• PCM
• SDIO
Contact information :
Sara
Skype: sara-wireless module
email: sara at
Mobile : 86 13751144958
What is your advantage?
We are the first hand source of Simcom
Our quality assurance
How is your Package with our goods?
We use standard export pack.

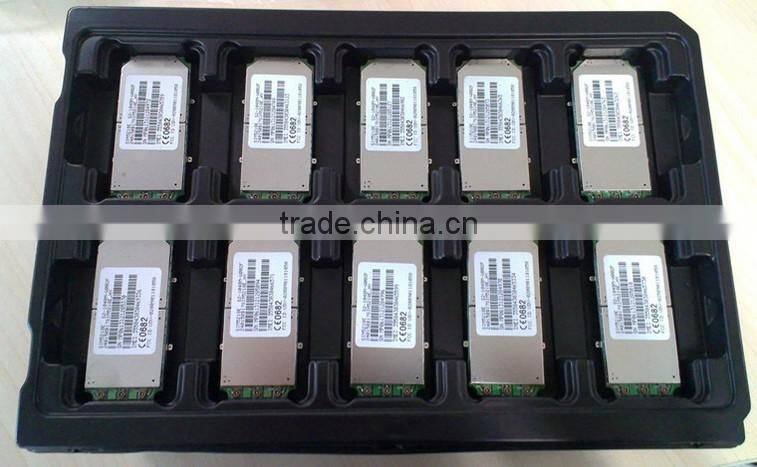

Huge qty package will be sealed as simcom company pack as follows:
Bulk package we will take care as follows:
How is your shipment?
Do you have other advantage soure?
Yes see attached excel
| Products | Model | Weight |
| SIM900 | 2G | 3.4g |
| SIM908 | 2G | 5.2g |
| SIM900R | 2G | 3.4g |
| SIM900A | 2G | 3.4g |
| SIM800 | 2G | 3.14g |
| SIM800H | 2G | 1.35g |
| SIM800L | 2G | 1.35g |
| SIM800C | 2G | 1.3g |
| SIM808 | GPRS+GPS | 3.3g |
| SIM39EA | GPS+ANTENNA | 5.8g |
| SIM33ELA | 8.5g | |
| SIM28ML | GPS | 0.5g |
| SIM5320E/A | 3G/WCDMA | 5.6 |
| SIM5360E/A | 5.7g | |
| SIM6320C | 3G/EVDO | 5.1g |
| SIM7230E | 4G | 5.6g |
| SIM7100C | 5.7g | |
| SIM7100E | 5.8g | |
| SIM5215E | 7g | |
| SIM928A | 5.3g | |
| sim2000c | 3.4g | |
| sim2000s | 3.4g | |
| sim68BV | ||
| SIM900D |
Our Sales department
Our warehouse
Pls contact and send enquiry now!
