Home > Manufacturing & Processing Machinery > Building Material Making Machinery > Brick Making Machine > Laying a Concrete Block Used QMR6-25 Laying Concrete Block Machine

Laying a Concrete Block Used QMR6-25 Laying Concrete Block Machine

Laying a Concrete Block Used QMR6-25 Laying Concrete Block Machine photo-1
Laying a Concrete Block Used QMR6-25 Laying Concrete Block Machine photo-2
US$ 5,000 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Hollow Block Making Machine, QMY6-25 Laying concrete block machine
Brick Raw Material:
Concrete
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Other, Hollow Block Making Machine, QMY6-25 Laying concrete block machine
Brick Raw Material Concrete
Processing Brick Production Line
Method Other, Hydraulic Pressure, hydraulic Laying concrete block machine
Automatic Other, semi automatic
Capacity 6000~8000pcs/ day
Place of Origin Shandong, China
Brand Name Huali
Model Number QMY6-25
Voltage 220V/380V/50HZ
Power 12kw mobile brick making machine china alibaba
Dimension(L*W*H) 3000*2200*2200mm
Certification ISO9001/BV
Warranty One year
After-sales Service Provided Engineers available to service machinery overseas

Laying a concrete block used QMR6-25 laying concrete block machine

Main technical parameters of Laying a concrete block used QMR6-25 laying concrete block machine

Weight

2600KG

Rated pressure

6-8MPa

Main vibration

Mould vibration

Vibration frequency

3500r/min

Turning method

Hydraulic methoh

Molding Cycle

20-25(s)

Overall power

12KW

Raw Materials

crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue,

gravel, perlite,and other industrial wastes.

Applied Products

concrete blocks, solid/hollow/cellular masonry products, paving stones

with or without face mix, garden and landscaping products, slabs,

edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc.

Applied Fields

widely used in buildings, road pavers, squares, gardens, landscaping,

city constructions, etc





Productivity of Laying a concrete block used QMR6-25 laying concrete block machine

Block type

Block size

Pcs/mould

Pcs/hour

Pcs/day



Hollow blocks

400x200x200mm

 (16x8x8 inch)

     6

1000

7000-9000

Hollow blocks

400x150x200mm

(16x6x8 inch)

     8

1300

10000-13000

Hollow blocks

400x250x200mm

(16x10x8 inch)

      4

700

5600-7000

Hollow blocks

400x120x200mm

(16x5x8 inch)

      9

1500

12000-15000

Solid bricks

250x175x75mm

(10x7x3 inch)

     14

2016

16128-20160


Outstanding features: Laying a concrete block used QMR6-25 laying concrete block machine

1.Popular in home and abroad



2.ISO9001&CE approved



3.Mobile small brick making machine



4.small investment&high output



5.No need pallet



6.With high frenquency vibration



7.reasonal humanized design



8.Alternative colour



9.Easy to operate



10.PLC cabinet with clear reading

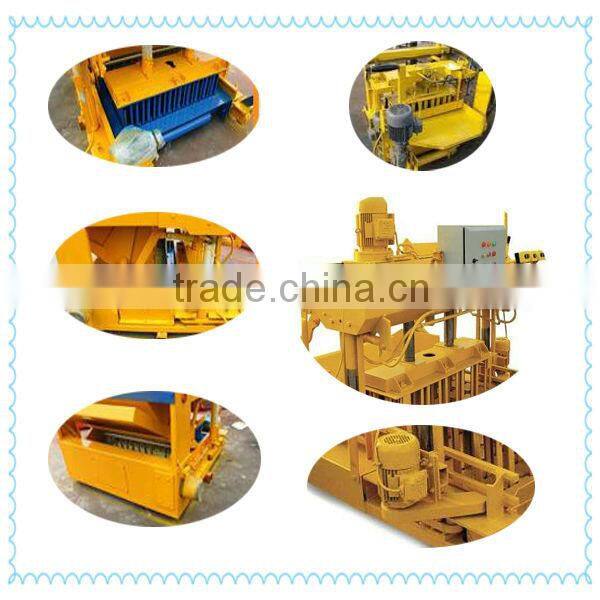

Parts of Laying a concrete block used QMR6-25 laying concrete block machine



Laying a concrete block used QMR6-25 laying concrete block machine

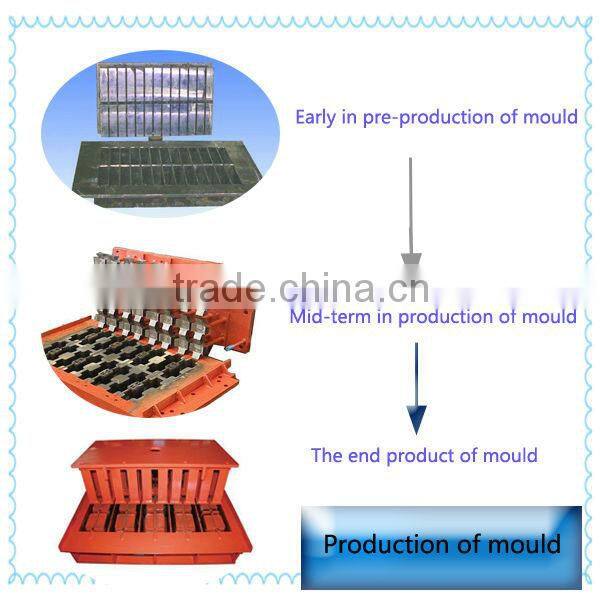

Mould of Laying a concrete block used QMR6-25 laying concrete block machine

Laying a concrete block used QMR6-25 laying concrete block machine

Block samples of Laying a concrete block used QMR6-25 laying concrete block machine

Laying a concrete block used QMR6-25 laying concrete block machine



Packaging & Shipping



  • FAST SHIPPING from our Linyi China Factory!
  • Item shipped in 15-28 working days after payment is received depends on the quantity of the order.
  • Item shipped by sea transpotation depending on size and weight of total order.
  • Item only shipped to port listed on the invoice; Not responsible for shipping to wrong address.
  • Bill of lading will be sent to you as soon as we ship the goods.

Guarantee

1.We can supply one year guarantee period for our brick making machines, if the client have the question ,they could call our service department number any time , we will supply per day 24 hours service .

2.Within one year, if the client meet the unsolvable questions ,we could fly to client place to help.

Company Information

Linyihuali Co.Ltd. is located in Linyi City. Established in 2005,the specialty is engaged in the production, development and sales . After many years of research, senior engineer, our products has reached the international advanced level, good quality, low price, has attracted many foreign customers.

Laying a concrete block used QMR6-25 laying concrete block machineLaying a concrete block used QMR6-25 laying concrete block machine

Laying a concrete block used QMR6-25 laying concrete block machine

Our Services



Laying a concrete block used QMR6-25 laying concrete block machine

Laying a concrete block used QMR6-25 laying concrete block machine
