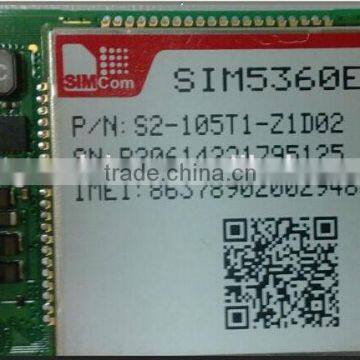

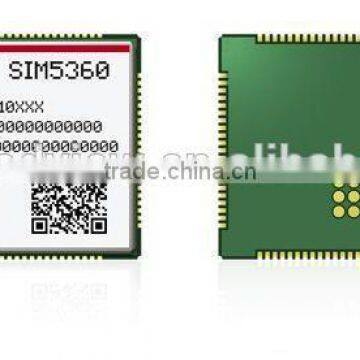

SIMCOM SIM5360E GPS/WCDMA module new IC CHIPS
SIMCOM 3G GPS Module SIM5360E details:
The SIM5360 series is Dual-Band HSPA+/WCDMA and Dual-Band GSM/GPRS/EDGE module solution in a SMT type which supports HSPA+ up to 14.4Mbps for downlink data transfer.
It has strong extension capability with rich interfaces including UART, USB2.0, SPI, aaI2C,Keypad, PCM, etc. With abundant application capability like BMP, TCP/UDP/FTP/FTPS/HTTP/HTTPS/SMTP/POP3 and MMS, the moduleprovides much flexibility and ease of integration for customer’s application.
|
General features
• SIM5360A:Dual-Band UMTS/HSPA+ 850/1900MHz
Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
• SIM5360(J)E:Dual-Band UMTS/HSPA+ 900/2100MHz
Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
• SIM5360J(D):Dual-Band UMTS/HSPA+ 800(850)/2100MHz
Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz
• GPRS multi-slot class 12
• EDGE multi-slot class 12
• Output power
- UMTS 850/1900: 0.25W
- UMTS 900/2100: 0.25W
- GSM850/GSM900: 2W
- DCS1800/PCS1900: 1W
• Control Via AT Commands
• Supply voltage range: 3.4V~ 4.2V
• Operation temperature: -40℃ to +85℃
• Dimension: 30 X 30X 2.9 mm
• Weight: 5.7g
Specifications for GPS
• CELL assistant Location (No GPS)
• A-GPS: MS-Based, MS-Assisted
• Stand-alone GPS
• QUALCOMM XTRA GPS mode
• GLonass
Specifications for Data transfer
• HSPA+
- Max. 14.4Mbps(DL), Max. 5.76Mbps(UL)
• WCDMA
- Max. 384Kbps(DL), Max. 384Kbps(UL)
• EDGE Class:
- Max. 236.8Kbps(DL), Max. 236.8Kbps(UL)
• GPRS
- Max. 85.6Kbps(DL), Max. 85.6Kbps(UL)
Specifications for SMS
• Point to point MO and MT
• Text and PDU mode
|
Other features
• USB Driver for Microsoft Windows 2000/XP/Vista/7/8
• USB Driver for Windows CE/Mobile
• USB Driver for Linux/Android
• Firmware update via USB
• Embedded AT
• LUA Script Language
• MMS
• TCP/IP
• FTP/FTPS/HTTP/HTTPS/SMTP/POP3/DNS
• FOTA
Interfaces
• USB2.0
• UART
• SIM card
• SPI
• I2C
• Keypad(5*5)
• Constant current sink
• GPIO
• RTC
• ADC
• SDIO
• PCM *
Certifications
SIM5360A
• FCC
• ROHS
• REACH
SIM5360JE/JD
• Telec
• JATE
• ROHS
• REACH
SIM5360E
• CE
• GCF
• ROHS
• REACH
• CCC
• CTA
|
Contact information:
/
Sara Liu
Skype: Sara-wireless module
wechat/whatsapp/Phone:86-13751144958 office number:86-0755-33075373
Mail: sara at
What is your advantage?
We are the first hand source of Simcom
Our quality assurance
How is your Package with our goods?
We use standard export pack.
Huge qty package will be sealed as simcom company pack as follows:
Bulk package we will take care as follows:
How is your shipment?
Do you have other advantage soure?
Yes see attached excel
| Products | Model | Weight |
| SIM900 | 2G | 3.4g |
| SIM908 | 2G | 5.2g |
| SIM900R | 2G | 3.4g |
| SIM900A | 2G | 3.4g |
| SIM800 | 2G | 3.14g |
| SIM800H | 2G | 1.35g |
| SIM800L | 2G | 1.35g |
| SIM800C | 2G | 1.3g |
| SIM808 | GPRS+GPS | 3.3g |
| SIM39EA | GPS+ANTENNA | 5.8g |
| SIM33ELA | 8.5g | |
| SIM28ML | GPS | 0.5g |
| SIM5320E/A | 3G/WCDMA | 5.6 |
| SIM5360E/A | 5.7g | |
| SIM6320C | 3G/EVDO | 5.1g |
| SIM7230E | 4G | 5.6g |
| SIM7100C | 5.7g | |
| SIM7100E | 5.8g | |
| SIM5215E | 7g | |
| SIM928A | 5.3g | |
| sim2000c | 3.4g | |
| sim2000s | 3.4g | |
| sim68BV | ||
| SIM900D |
Our Sales department
Our warehouse
Pls contact and send enquiry now!
