Hot offer SIMCOM MODULE QUAL-BAND SIM800 GSM/GPRS Module

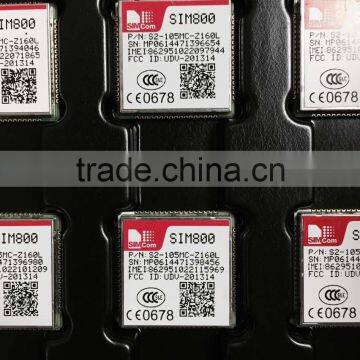

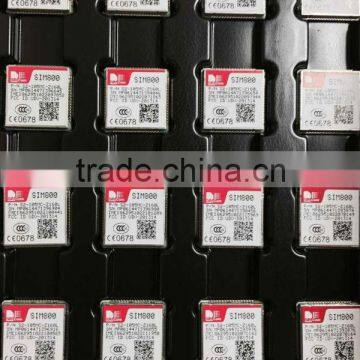

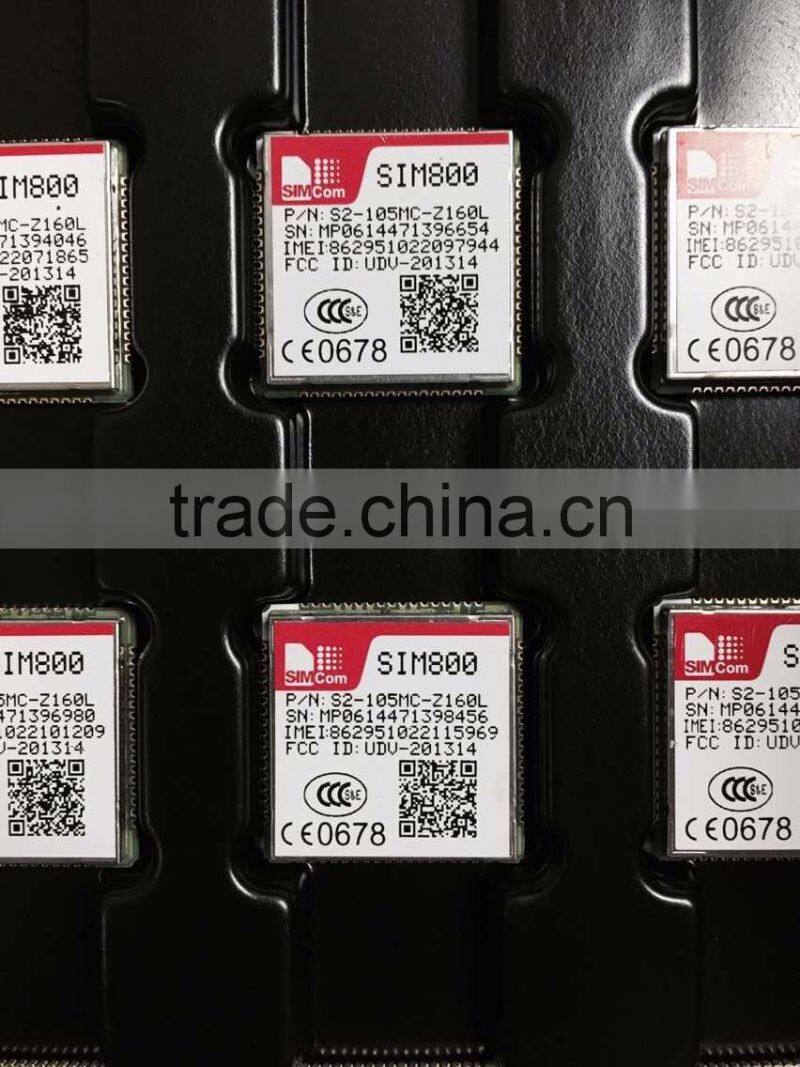

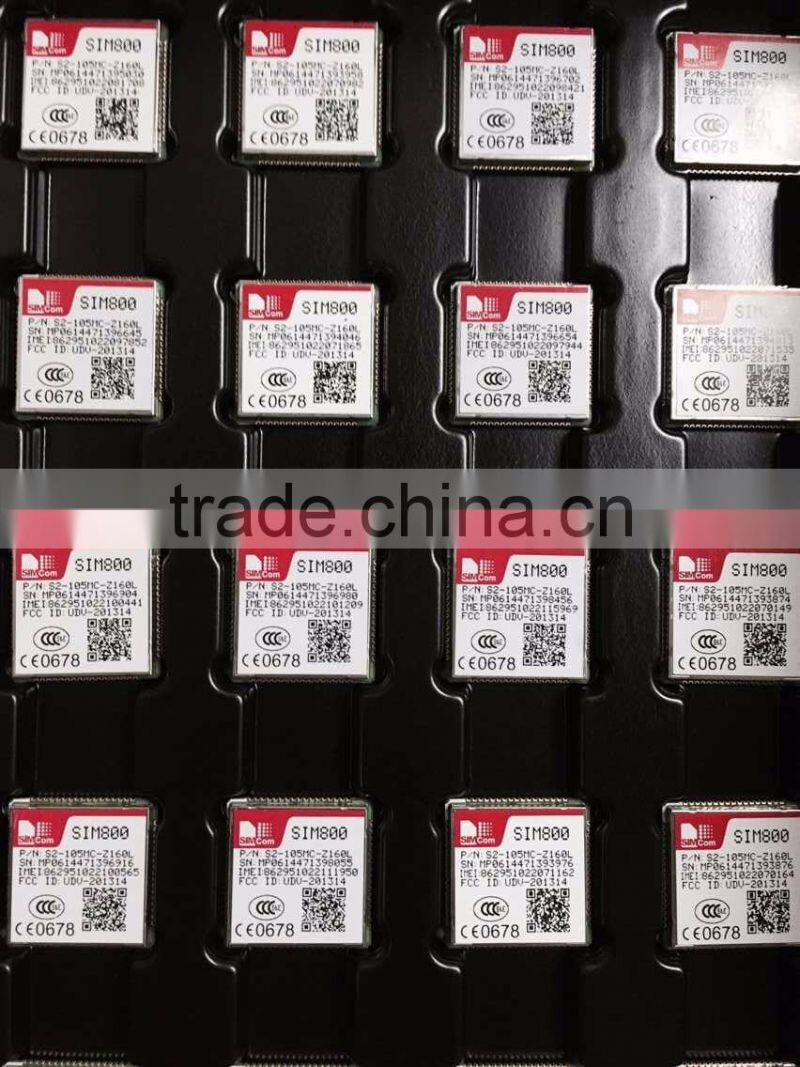

SIMCOM MODULE SIM800 DETAILS
SIM800 support Quad-band 850/900/1800/1900MHz, it can transmit Voice, SMS and data information with low power consumption. With tiny size of 24*24*3mm, it can fit into slim and compact demands of customer design. Featuring Bluetooth and Embedded AT, it allows total cost savings and fast time-to-market for customer applications.
|
General features • Quad-band 850/900/1800/1900MHz • GPRS multi-slot class 12/10 • GPRS mobile station class B • Compliant to GSM phase 2/2+ – Class 4 (2 W @ 850/900MHz) – Class 1 (1 W @ 1800/1900MHz) • Bluetooth: compliant with 3.0+EDR • Dimensions: 24*24*3mm • Weight: 3.14g • Control via AT commands (3GPP TS 27.007,27.005 and SIMCOM enhanced AT Commands) • Supply voltage range 3.4 ~ 4.4V • Low power consumption • Operation temperature:-40℃ ~85℃ Specifications for GPRS Data • GPRS class 12: max. 85.6 kbps (downlink/uplink) • PBCCH support • Coding schemes CS 1, 2, 3, 4 • PPP-stack • CSD up to 14.4 kbps • USSD • Non transparent mode Specifications for SMS via GSM/GPRS • Point to point MO and MT • SMS cell broadcast • Text and PDU mode Software features • 0710 MUX protocol • Embedded TCP/UDP protocol • FTP/HTTP • MMS • DTMF • Jamming Detection • Audio Record • TTS (optional) • Embedded AT (optional) |
Specifications for voice • Tricodec – Half rate (HR) – Full rate (FR) – Enhanced Full rate (EFR) • AMR – Half rate (HR) – Full rate (FR) • Hands-free operation (Echo suppression) Interfaces • 68 SMT pads including • Analog audio interface • PCM interface(optional) • SPI interface (optional) • RTC backup • Serial interface • USB interface • Interface to external SIM 3V/1.8V • Keypad interface • GPIO • ADC • GSM Antenna pad • Bluetooth Antenna pad Compatibility • AT cellular command interface Certifications • CE • GCF • FCC • TA • CTA • CCC • ROHS • REACH • ANATEL • A-TICK |
Pls contact and send enquiry now IF U NEED ANY SIMCOM MODULE!
Contact information :
Sara
Skype: sara-wireless module
email: sara at
Mobile : 86 13751144958
What is your advantage?
We are the first hand source of Simcom
Our quality assurance
How is your Package with our goods?
We use standard export pack.
Huge qty package will be sealed as simcom company pack as follows:
Bulk package we will take care as follows:
How is your shipment?
Do you have other advantage soure?
Yes see attached excel
| Products | Model | Weight |
| SIM900 | 2G | 3.4g |
| SIM908 | 2G | 5.2g |
| SIM900R | 2G | 3.4g |
| SIM900A | 2G | 3.4g |
| SIM800 | 2G | 3.14g |
| SIM800H | 2G | 1.35g |
| SIM800L | 2G | 1.35g |
| SIM800C | 2G | 1.3g |
| SIM808 | GPRS+GPS | 3.3g |
| SIM39EA | GPS+ANTENNA | 5.8g |
| SIM33ELA | 8.5g | |
| SIM28ML | GPS | 0.5g |
| SIM5320E/A | 3G/WCDMA | 5.6 |
| SIM5360E/A | 5.7g | |
| SIM6320C | 3G/EVDO | 5.1g |
| SIM7230E | 4G | 5.6g |
| SIM7100C | 5.7g | |
| SIM7100E | 5.8g | |
| SIM5215E | 7g | |
| SIM928A | 5.3g | |
| sim2000c | 3.4g | |
| sim2000s | 3.4g | |
| sim68BV | ||
| SIM900D |
Our Sales department
Our warehouse
Pls contact and send enquiry now!
