Home > Manufacturing & Processing Machinery > Building Material Making Machinery > Brick Making Machine > QTJ4-25 Fly Ash Brick Making Machine

QTJ4-25 Fly Ash Brick Making Machine

QTJ4-25 Fly Ash Brick Making Machine thumbnail-1
QTJ4-25 Fly Ash Brick Making Machine photo-1
US$ 5,000 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Hollow Block Making Machine
Brick Raw Material:
Fly Ash
Contact Supplier Request Quote Chat Now
Linyi Huali Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Hollow Block Making Machine
Brick Raw Material Fly Ash
Processing Brick Production Line
Method Vacuum Extruder
Automatic Yes
Capacity 4800pcs/8hrs
Place of Origin Shandong, China
Brand Name HL
Model Number QTJ4-25
Voltage 380V or according to your local voltage
Power 18.95kw
Dimension(L*W*H) 2600*1800*2100mm
Certification BV/ISO9001
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

QTJ4-25 fly ash brick making machine
1.ISO9001/BV
2.low cost,high return
duce different size concrete bricks

                                                            QTJ4-25 fly ash brick making machine



QTJ4-25 fly ash brick making machine



(I) Advantages of  QTJ4-25 fly ash brick making machine





1.PLC control,save the labour.







2.Semi automatic,easy to operate that.







3.The main parts and the block moulds are treated by the high temperature,sturdy and durable.







4.We supply different kinds of the block mould according to your needs.







5.It can change different kinds of the block mould.







6.Need samll area land,less people.

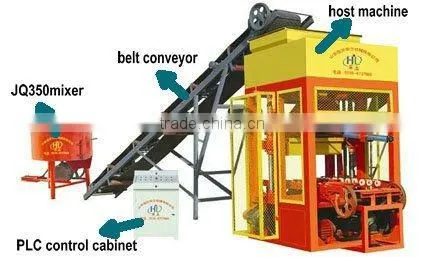

(II)The full set of QTJ4-25 fly ash brick making machinery needed parts as follows:





QTJ4-25 fly ash brick making machine





III)Technical informations of the flyash brick making machine:





moulding cycle

 25-30s
rated power 18.95kw
vibration frequency 2800-4200 r.pm
host machine size 2600x1800x2100mm
pallet size 850x480x30mm





 The workshop area need 40-80 m2,the machine need 4 or 5  workers.



(IV)Capacity of QTJ4-25 fly ash brick making machinery;



item

size(LXWXH) mm Quantity/hour (pcs) pcs/mould
concrete block 390x190x190mm 1000-4800 pcs 4
solid block 240x115x53mm 20000-28000 pcs 21

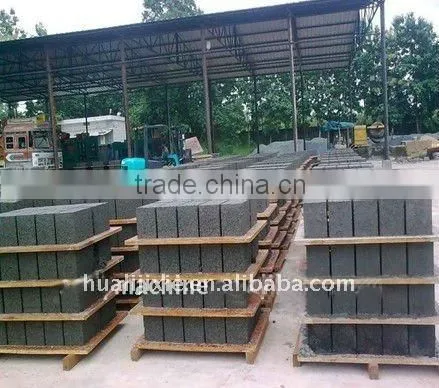

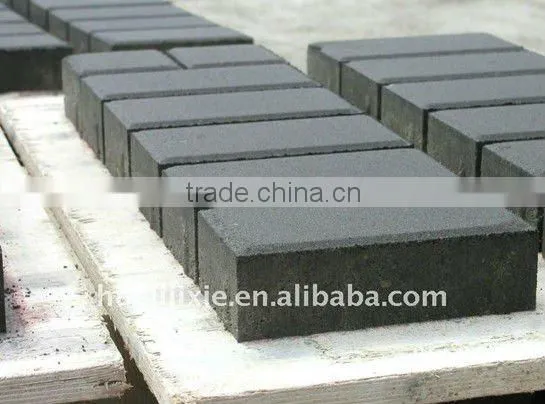

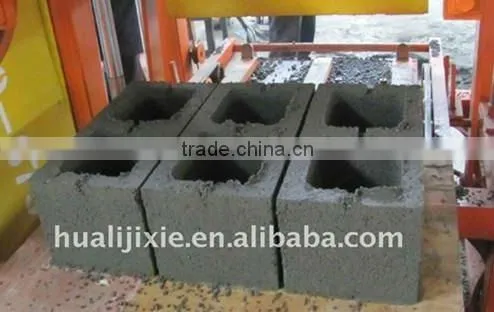

(V)Block samples:(we can do the block mould according to your needs





QTJ4-25 fly ash brick making machine





(VI)Block mould:





QTJ4-25 fly ash brick making machine





(VII )JQ350 mixer :



overall power

7.5kw

Diameter

1.5m

Height

1.5m

motor type

Y100L2-4

speed of main shaft

19r/min

speed of motor

1440r/min

Mixing time

5min

Output

3m3/h







QTJ4-25 fly ash brick making machine

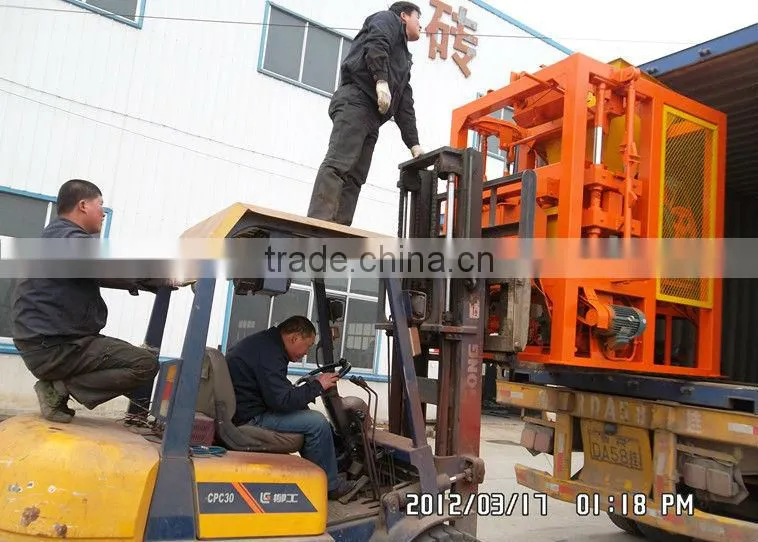

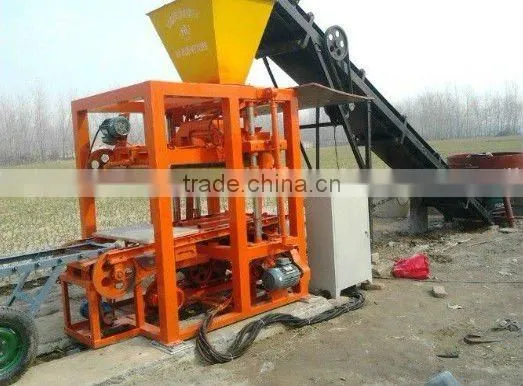

(VIII) some real picture:





QTJ4-25 fly ash brick making machine



QTJ4-25 fly ash brick making machine



QTJ4-25 fly ash brick making machine  QTJ4-25 fly ash brick making machine



QTJ4-25 fly ash brick making machine

QTJ4-25 fly ash brick making machine



QTJ4-25 fly ash brick making machine



(IX)We are attending the canton fair:



QTJ4-25 fly ash brick making machine



(X) The ISO9001 Certificate:









QTJ4-25 fly ash brick making machine



Contact information



Linyi Huali Machinery Co.,Ltd



Contact Person: Crystal Gao



Mobile: 0086-15615690606



Email: crystal_admin at











Send Inquiry to This Supplier

Message
0/5000

Want the best price? Post an RFQ now!
Linyi Huali Machinery Co., Ltd.
Business Type
Manufacturer, Trading Company
Year Established
2005
Factory Size
10,000-30,000 square meters
Total Employees
301 - 500 People
