Home > Products > Semi Automatic Block Making Machine > QHL4-25 semi_automatic low cost brick making machine

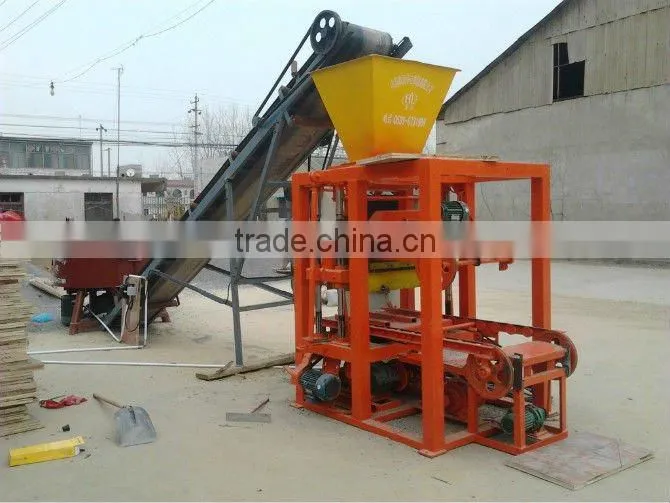

QHL4-25 semi_automatic low cost brick making machine
- 2800 Set / Sets per Month
- Qingdao
- T/T
-
China pe200x300 smallest jaw crusher
-
Popular compound pendulum jaw crusher price
-
2016 china products stone coated steel roofing tile ,shingle steel roof tile
-
2016 china products lightweight roof tile,blue glazed roof tile
-
colored metal roofing prices,sand coated metal roofing tiles
-
roofing tiles coated with stones,roofing tiles for houses
Product Details
| Condition: | New | Type: | Hollow Block Making Machine | Brick Raw Material: | Concrete |
| Processing: | Brick Production Line | Method: | Other, electric | Automatic: | Other, semi-automatic |
| Capacity: | 4000-4800pcs/day | Place of Origin: | Shandong, China | Brand Name: | HL |
| Model Number: | QHL4-25 | Voltage: | 380V/50HZ or according to your local voltage | Power: | 18.95kw |
| Dimension(L*W*H): | 2600*1800*2100mm | Certification: | BV | Warranty: | 1 year |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
QHL4-25 semi_automatic low cost brick making machine1.get ISO9001/SGS
2.PLC control.
3.Semi-automatic
4.can change moulds
QHL4-25 semi_automatic low cost brick making machine
(low cost,semi-automatic,PLC control)
Main Technical specifications
Main Technical Specifications | |
Overall Size | 2600×1800×2100mm |
Auxiliary Machine | 25-30S |
Carrier Size | 850×480×30mm |
Rated Power | 18.95kw |
Vibration frequency | 2800-4200r.pm |
Productivity
Ltem | Specification | Quantity per hour | PSC/Mould |

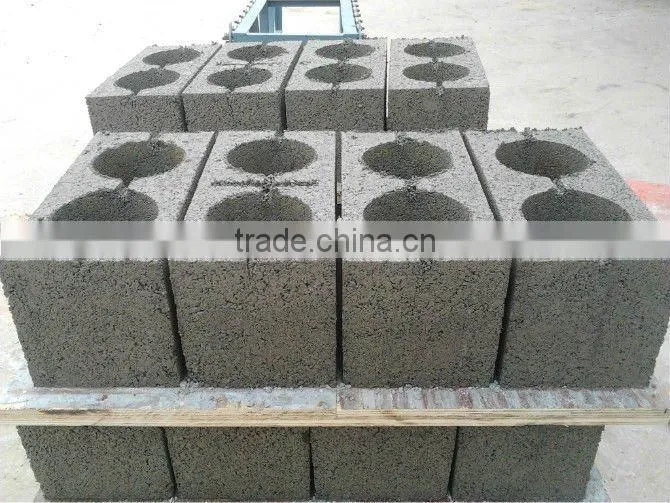

Concrete block | 390×190×190 | 400-480 | 4 |
Solid block | 240×115×53 | 2000-2800 | 21 |
Mould
Mixer

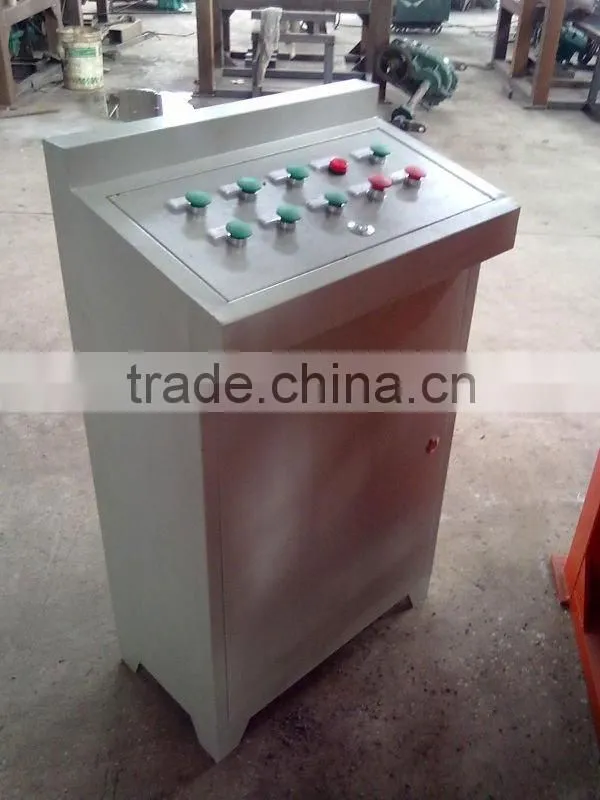

PLC control cabinet
belt conveyor
Introduction
1.PLC control,easy to operate.
2.Can do the solid block ,hollow block according to your needs.
3.Can change the mouds.
4.Low cost,big capacity.

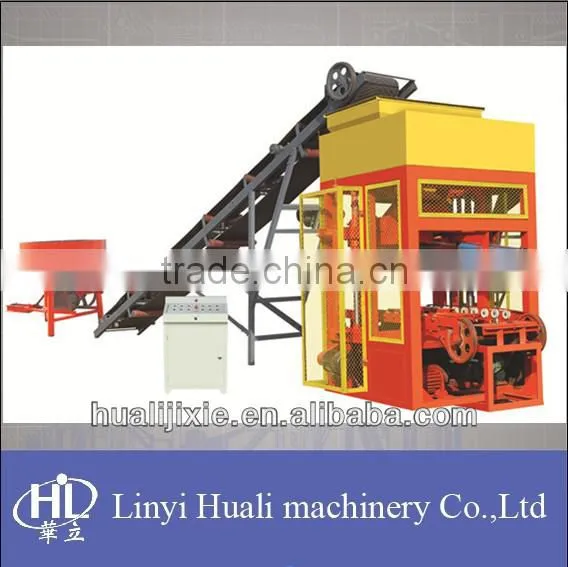

Full set included as below:
QHL4-25 hollow block machine | 1set |
| 6m belt conveyor | 1set |
| handcart | 2sets |
| JQ350 concrete mixer | 1set |
Contact Us
- Linyi Huali Machinery Co., Ltd.
- Contact nameCandice Chen
- Phone86-0539-8103580
- AddressZhongqiu Road & Jinqueshang Road shandong Province , China Linyi,Shandong
-
