Quarry Conveyor Belt
Product Details
Material:Rubber and Fabric
Fabric:KPP100,KPP125, KPP150, KPP200,NN100, NN125, NN150, NN200,PP100, PP125, PP150
PP200, EE100, EE125, EE150 EE200, EP100EP100, EP125, EP150, EP200
Belt With:100-1600mm

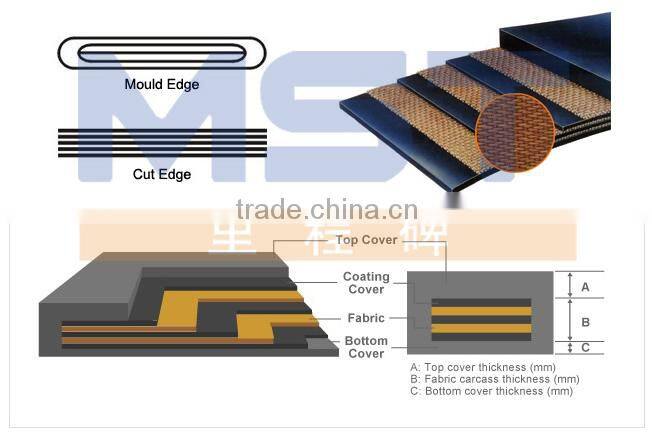

Structure:Top Rubber Cover+Fabric+Bottom Rubber Cover
Top Rubber Cover:1-10mm
Bottom Rubber Cover:1-10mm
Ply: 1-10plies
Color: Black
Feature
- Conveyor belt, for continuous, high efficiency, large angle transport, safe,easy to use.
- Maintenance easy, cheap freight, and can shorten the transport distance.
- Reduce cost, save manpower and resources to the manufacturers to bringgreat convenience, people can more easily and more effort some.
- Nylon and Polyester conveyor belt have strong dynamics, the good elasticity,Shock resistant.
Overburden physics mechanical performance
Application
Conveyor belts are also used to transport material into processing equipment and back out again.
Conveyor belt in the agricultural, food industry, industrial and mining enterprises and transportation in the widely used transport all kinds of solid block and powder-like material or into items.
Our product`s type
| No. | Rubber Conveyor Belt | Code |
| 1 | Sidewall Conveyor Belt | MSTB/S |
| 2 | Conveyor Belt for General Purpose | MSTB/P |
| 2.1 | EP Conveyor Belt | MSTB/EP |
| 2.2 | Nylon Conveyor Belt | MSTB/NN |
| 2.3 | Cotton Conveyor Belt | MSTB/CC |
| 2.4 | Steel Cord Conveyor Belt | MSTB/ST |
| 3 | Conveyor Belt for Specific Purpose | MSTB/SP |
| 3.1 | Heat Resistant Conveyor Belt | MSTB/HR |
| 3.2 | Fire Retardant Conveyor Belt | MSTB/FR |
| 3.3 | Cold Resistant Conveyor Belt | MSTB/CR |
| 3.4 | Oil Resistant Conveyor Belt | MSTB/OR |
| 3.5 | Chemical Resistant Conveyor Belt | MSTB/CHR |
| 4 | Chevron Conveyor Belt | MSTB/V |
| 5 | Elevator Conveyor Belt | MSTB/E |
| 6 | PVC/PU Conveyor Belt | MSTPVCB |
| 7 | V Belt | MSTVB |
Common problem and solution
Running deviation when conveyor belts loads nothing
Solution:
1It should appropriate increase the tension of conveyor belt
2It should replace to good groove and pliancy of conveyor belt when it is also useless after using
aligning idler
Inquiry List | ||
Belt width |
mm |
|
Fabric |
||
Ply |
mm |
|
Top and bottom rubber thickness |
Mpa |
|
Tensile strength of cover rubber |
m |
|
Belt length |
||
Transport material |
||
Material size |
mm |
|
Material temperature |
Degree |
|
