QT4-15B Fully Automatic Interlocking Block Making Machine Large Production Capacity From Linyi Huali Machinery Manufacturer

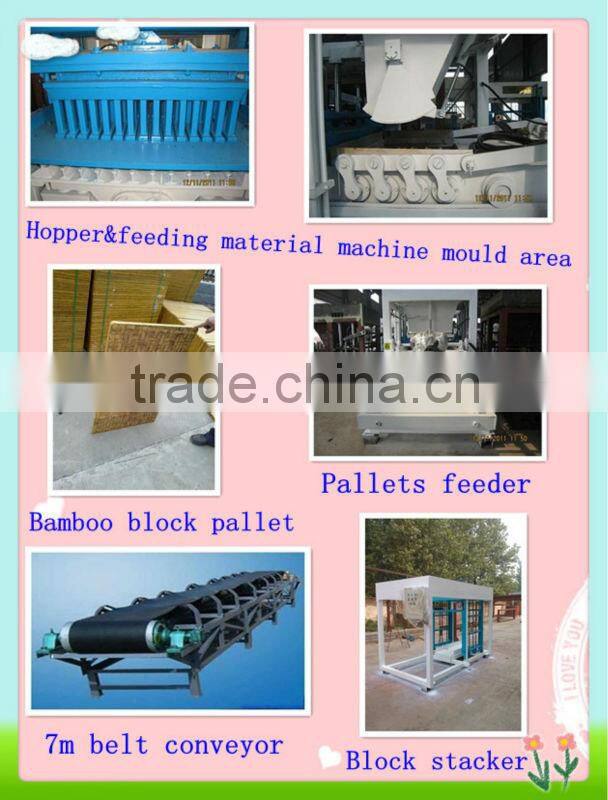

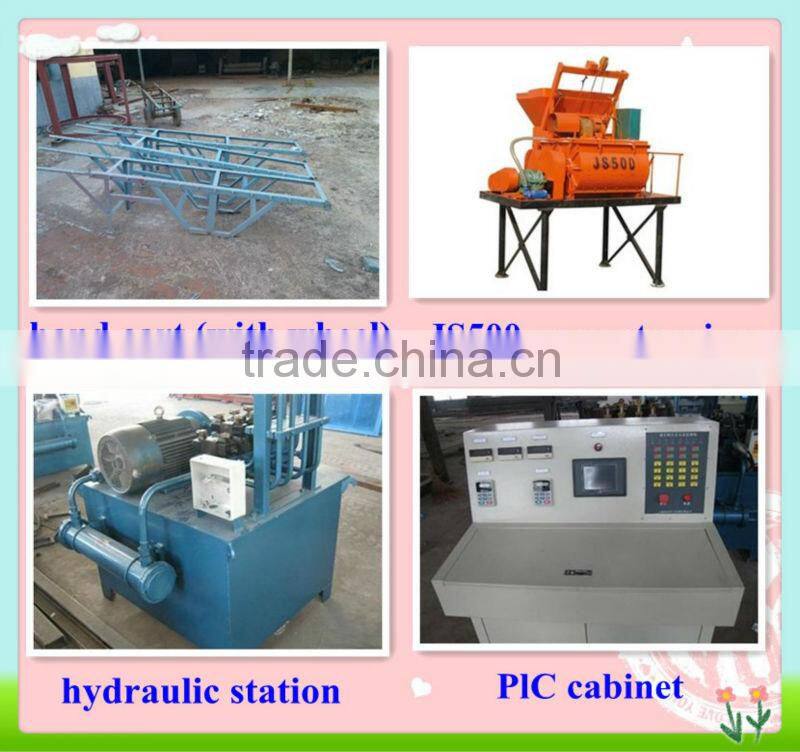

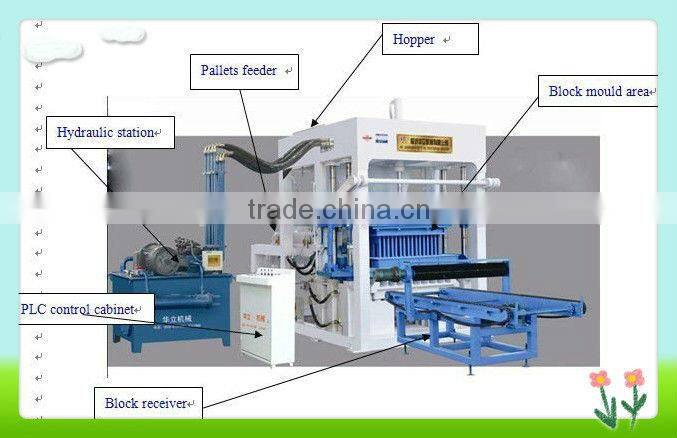

Size of main machine parts:
Item No. |
QTY |
Size(mm) |
weight |
power |
Host machine |
1 |
4000x1800x2580 |
4480kgs |
15.5kw |
Control cabinet |
1 |
700x370x1070 |
59kgs |
|
Hydraulic station |
1 |
1100x1100x2000 |
490kgs |
7.5kw |
Block receive |
1 |
2400x700x600 |
216kgs |
0.75kw |
Belt conveyor |
1 |
3850x900x950 |
538kgs |
2.2kw |
JS500 mixer |
1 |
2200x2950x2700 |
3700kgs |
24.75kw |
handcart |
2 |
2530x540x1340 |
150kgs |
|
mold |
1 |
1280x700x370 |
538kgs |
|
Total |
9 |
|
11590kgs |
53.7kw |
2. Main Advantages:
1.Using advanced PLC control, hydraulic station and simens motor systerm. Also full automatic.
2.Table-vibrate, mould-vibrate and head vibrate make blocks have high density together.
3.Easy to change mould, to produce different hollow blocks,solid blocks,porous blocks &color paver blocks, of high productivity.
4.Good after-sales service, one year warranty by free, technic and training by free, support enough spareparts for the machine.
3.Main Technical Specifications for QT4-15 | |
Overall Size |
3000*2200*2900mm |
Molding Cycle |
15-20S |
PalleSize |
935*580*20/25mm |
Weight |
8.5T |
Rated Power |
15.5kw |
Vibration Force |
60KN |
Vibration frequency |
2850/min |
Mixer model |
JS50 |
4. Productivity
Item |
Specification(L*W*H) |
Quantity per hour(PCS) |
PSC/Mould |
Concrete block |
390×190×190 |
640-720 |
4 |
Solid block |
240×115×53 |
3800-4500 |
30 |
Porous block |
240×115×90 |
1900-2250 |
14 |
5.Conditions of productivity
1. QT4-15B block making machine need 4-6 workers for operating, transporting
the block.
2.QT4-15B block making machine workshop area need 90-120 m2, the bigger, the better.
3.The final block raw materials are easy to get,The rate of the raw materials as follows:
- Fly ash brick: Fly ash:30%, slag:30%, stone chips:30%, cement:8-10%,
- Stone chips brick:stone powder:60% ,stone chips:30%, cement: 8-10%,burnt lime:3%,
- River sand brick: river sand:55-60%, stone powder:30%, cement: 10-15%
- Shale brick: Shale:90%, cement:8-10%,rock sand:0.2%,KCL:0.2%
Note: The customer can appropriate readjustment the propotion based on self condition.
If you have any needs, please fell free to contact me
Phone:+86-539-8103580
Fax:+86-539-8103580
Mob:86135-8108-4986
Addres:Development Zone No.77 Shengli Town,Tancheng
Coutry,Shandong Provence,China
EM:sales(at)
Skype:hlmachine4
