Help CenterConveyor Belt Idler
Related Products
Specifications
Conveyor Belt Idler1Adhesive Strength:100-600N/mm
2CC NN EE PP EP KPP Fabric
3Cover Rubber:9-25mpa
ISO9001:2008
Conveyor Belt Idler
Product Details
Material: Rubber and Fabric
Fabric:Cotton,KPP100,KPP125,KPP150,KPP200,NN100,NN125,NN150,NN200,PP100,PP125,PP150,PP150,PP200,EE100,EE125,EE150,EE200,EP100,EP,125,EP150,EP200,

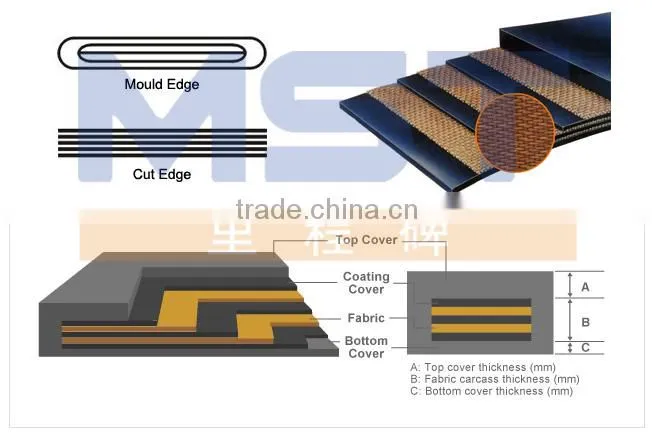

Thickness=Top Rubber Cover+Fabric Layer+Bottom Rubber Cover
Ply: 1-10
Top rubber cover:1.5-10mm
Bottom rubber cover:1.5-10mm
Belt Width:200-1600mm
Edge:Cut Edge or Mould Edge
Specification
Application

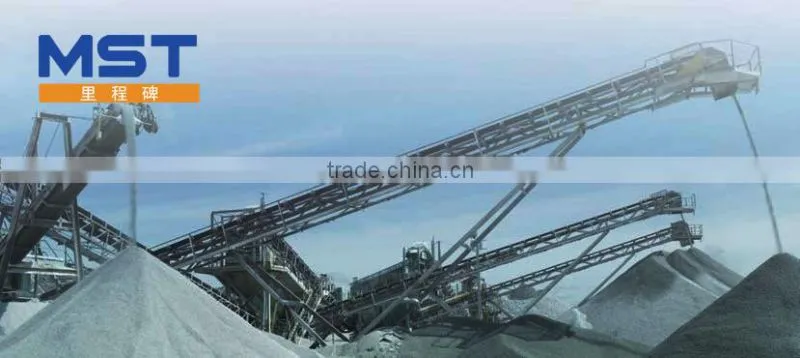

Transportation of lump, particle, power materials for long distance conveying with high load, speed and impact.
Characteristics
1.Good elasticity, anti-impact;
2.High adhesion, good flexibility and trough ability;
3.Better stability of size and heat-resistance
4.Good water-proof ability, little change in strength under dry or wet conditions.
The conveyor belt to carry out the GB code GB/T7984-2001 standard.
a.The intensity of vertical draw that brings is not lower than marking the calling value as follows:160 200 250 315 400 500 600 630 800 1000 1250 1600 200 250 3150N/mm.
b.The whole thickness that brings breaks the extending rate and is not smaller than 10% vertically. The whole thickness that brings consults the extending rate of strength vertically and should not be greater than 4%.
c.Straight line degree: Not greater than 25mm.
According to user's require, we can make endless conveyor belt, and different pattern belt like V shape, ribbed, etc.
Processing & Testing
Certifications
Our Products
Our products:
| No. | Rubber Conveyor Belt | Code |
| 1 | Sidewall Conveyor Belt | MSTB/S |
| 2 | Conveyor Belt for General Purpose | MSTB/P |
| 2.1 | EP Conveyor Belt | MSTB/EP |
| 2.2 | Nylon Conveyor Belt | MSTB/NN |
| 2.3 | Cotton Conveyor Belt | MSTB/CC |
| 2.4 | Steel Cord Conveyor Belt | MSTB/ST |
| 3 | Conveyor Belt for Specific Purpose: | MSTB/SP |
| 3.1 | Heat Resistant Conveyor Belt | MSTB/HR |
| 3.2 | Fire Retardant Conveyor Belt | MSTB/FR |
| 3.3 | Cold Resistant Conveyor Belt | MSTB/CR |
| 3.4 | Oil Resistant Conveyor Belt | MSTB/OR |
| 3.5 | Chemical Resistant Conveyor Belt | MSTB/CHR |
| 4 | Chevron Conveyor Belt | MSTB/V |
| 5 | Elevator Conveyor Belt | MSTB/E |
| 6 | PVC/PU Conveyor Belt | MSTPVCB |
| 7 | V Belt | MSTVB |
Item |
Specification |
Unit |
Belt width |
300-2000 |
mm |
Fabric |
NN,CC,EE,EP |
|
Ply |
1-10 |
|
Belt thickness |
6-60 |
mm |
Top rubber cover thickness |
1.5-30 |
mm |
Bottom rubber cover thickness |
0-30 |
mm |
Tensile strength of 1 ply fabric |
100-1000 |
N/mm |
Color |
Black |
|
Standard |
ISO, RMA, DIN, AS, JIS |
|
Inquiry List | ||
Belt width |
mm |
|
Fabric |
||
Ply |
mm |
|
Top and bottom rubber thickness |
Mpa |
|
Tensile strength of cover rubber |
m |
|
Belt length |
||
Transport material |
||
Material size |
mm |
|
Material temperature |
Degree |
|
