Home > Products > Chevron Conveyor Belts > 20-45degree Chevron Conveyor Belt
20-45degree Chevron Conveyor Belt
- 10000 Meter / Meters per Month
- Tianjin
- T/T
Product Details
Condition: | New | Type: | Slat Conveyor | Material: | Other, Rubber, Rubber and Nylon, Polyester or Cotton carcass |
Material Feature: | Heat Resistant | Structure: | Belt Conveyor | Load Capacity: | 1-600t/h |
Place of Origin: | Hebei, China | Brand Name: | MST | Model Number: | MSTB/V |
Voltage: | As requirement | Power(W): | As requirement | Dimension(L*W*H): | As requirement |
Certification: | ISO9001:2008 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
20-45degree Chevron Conveyor Belt
Chevron conveyor belt for gradient angles of more than 20°, bulk and general goods cannot be
transported using ordinary conveyor belts. Chevron conveyor belts are used instead. Due to
different areas of use and operational requirements, MST belt offers a comprehensive portfolio of
open and closed profile designs. We can also arrange bespoke solutions for individual requests
relating to profile height or design.
MST® chevron conveyor belt are primarily used in the following industries:
· Agriculture
· Cement factories
· Coal industry
· Quarries
· Sand and gravel industry
· Smelters

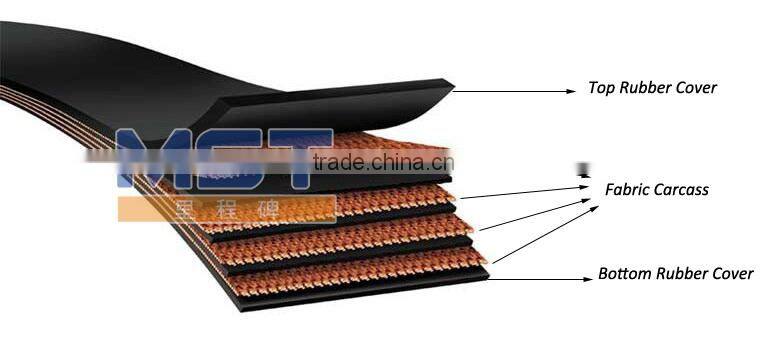

Chevron conveyor belt structure and specification:
Carcass | Belt width mm | No. of Plies | Thickness of cover Top Bottom | |
EP100 EP125 | 300 | 3~5 | 4.5 3.0 1.5 | 3.0 1.5 |
EP100 EP125 | 400 | 3~6 | 4.5 3.0 1.5 | 3.0 1.5 |
EP100 EP125 | 500 | 3~6 | 4.5 3.0 1.5 | 3.0 1.5 |
EP100 P125 | 600 | 3~6 | 4.5 3.0 1.5 | 3.0 1.5 |
EP100 EP125 | 650 | 3~6 | 4.5 3.0 1.5 | 3.0 1.5 |
EP125 EP200 | 800 | 3~6 | 6.0 4.5 3.0 1.5 | 3.0 1.5 |
EP150 EP200 | 1000 | 3~8 | 6.0 4.5 3.0 1.5 | 4.5 3.0 1.5 |
EP150 EP200 | 1100 | 4~10 | 6.0 4.5 3.0 | 4.5 3.0 1.5 |
EP150 EP200 | 1200 | 4~10 | 6.0 4.5 3.0 | 4.5 3.0 1.5 |
EP150 EP200 | 1400 | 4~10 | 6.0 4.5 3.0 | 4.5 3.0 |
EP200 EP250 | 1600 | 5~10 | 6.0 4.5 | 4.5 3.0 |
Cover Rubber Grade | Tensile Strength Mpa | Elongation at Break % | Abrasion mm3 |
H | 24 | 450 | 120 |
D | 18 | 400 | 100 |
L | 15 | 350 | 200 |
* meet to GB/T 7984-2001standard equal to ISO/FDISI4890-99 standard
We can make all standard:
| Grade | Tensile Strength Mpa | Elongation at Broken % | Abrasion mm3 | Standard |
Fabric cord conveyor belt | H | 24 | 450 | 120 | GB/T7984-2001 ISO/FDISI4890-99 |
D | 18 | 400 | 100 | ||
L | 15 | 350 | 200 | ||
W | 18 | 400 | 90 | DIN22102 | |
X | 25 | 450 | 120 | ||
Y | 20 | 400 | 150 | ||
Z | 15 | 350 | 250 | ||
A | 17 | 400 | 70 | AS1332-1991 | |
E | 14 | 300 | -- | ||
F | 14 | 300 | -- | ||
M | 24 | 450 | 125 | ||
N | 17 | 400 | 200 | ||
S | 14 | 300 | 250 | ||
S | 12 | 300 | 250 | ||
S(PVC) | 12 | 300 | 250 | ||
1 | 12 | 300 | -- | RMA | |
2 | 15 | 300 | -- | ||
3 | 18 | 350 | -- | ||
4 | 24 | 350 | -- | ||
Steel Cord Conveyor Belt | D | 18 | 400 | 90 | GB/T9770-2001 ISO/FDISI4890-99 |
H | 25 | 450 | 120 | ||
L | 20 | 400 | 150 | ||
W | 18 | 400 | 90 | DIN22131 | |
X | 25 | 450 | 120 | ||
Y | 20 | 400 | 150 | ||
A | 17 | 400 | 70 | AS1333-94 | |
E | 14 | 300 | -- | ||
F | 14 | 300 | -- | ||
M | 24 | 450 | 125 | ||
N | 17 | 400 | 200 | ||
S | 14 | 300 | 250 |
Our products:
No. | Rubber Conveyor Belt | Code |
1 | Sidewall Conveyor Belt | MSTB/S |
2 | Conveyor Belt for General Purpose | MSTB/P |
2.1 | EP Conveyor Belt | MSTB/EP |
2.2 | Nylon Conveyor Belt | MSTB/NN |
2.3 | Cotton Conveyor Belt | MSTB/CC |
2.4 | Steel Cord Conveyor Belt | MSTB/ST |
3 | Conveyor Belt for Specific Purpose: | MSTB/SP |
3.1 | Heat Resistant Conveyor Belt | MSTB/HR |
3.2 | Fire Retardant Conveyor Belt | MSTB/FR |
3.3 | Cold Resistant Conveyor Belt | MSTB/CR |
3.4 | Oil Resistant Conveyor Belt | MSTB/OR |
3.5 | Chemical Resistant Conveyor Belt | MSTB/CHR |
4 | Chevron Conveyor Belt | MSTB/V |
5 | Elevator Conveyor Belt | MSTB/E |
6 | PVC/PU Conveyor Belt | MSTPVCB |
7 | V Belt | MSTVB |
Item | Specification | Unit |
Belt width | 300-2000 | mm |
Fabric | NN,CC,EE,EP | |
Ply | 1-10 | |
Belt thickness | 6-60 | mm |
Top rubber cover thickness | 1.5-30 | mm |
Bottom rubber cover thickness | 0-30 | mm |
Tensile strength of 1 ply fabric | 100-1000 | N/mm |
Color | Black | |
Standard | ISO, RMA, DIN, AS, JIS |
Production Processing:
Inquiry List | ||
Belt width | mm | |
Fabric | ||
Ply | mm | |
Top and bottom rubber thickness | Mpa | |
Tensile strength of cover rubber | m | |
Belt length | ||
Transport material | ||
Material size | mm | |
Material temperature | Degree |
