paving block making machine qtf3-20 concrete paver machine | ||
Main Technology Specifications | ||
Mahine |
concrete paver machine |
|
Cycle Time |
20 seconds |
|
Vibrating Frequency |
4600 rolls/minute |
|
Motors Power |
14.25KW |
|
Pallet Size |
680*530mm |
|
Overall Weight |
2000 kg |
|
Raw Materials |
crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite,and other industrial wastes. |
|
Applied Products |
concrete blocks, paving stones with or without face mix, garden and landscaping products,slabs, edgers, curbstones, grass blocks, slope blocks,interlocking blocks,etc |
|
Applied Fields |
widely used in buildings, road paving’s, squares, gardens, landscaping,city constructions, etc. |
|
| ||
Capacity/Productivity | ||
Type |
Sample |
Size(mm) |
Quantity |
Molding cycle |
QTY/Per hour |
Paver block mould |
|
200*100*60 |
10pcs/mold |
15-20s |
1800pcs |
Paver block mould |
|
225*112.5*60 |
8pcs/mold |
15-20s |
1020pcs |
Paver block mould |
|
400*200*80 |
3pcs/mold |
15-20s |
540pcs |
Paver block mould |
|
200*160*60 |
6pcs/mold |
15-20s |
1080pcs |
concrete paver machine advantage is just only one machine can make different types bricks,such as hollow block, paver and interlocking block.

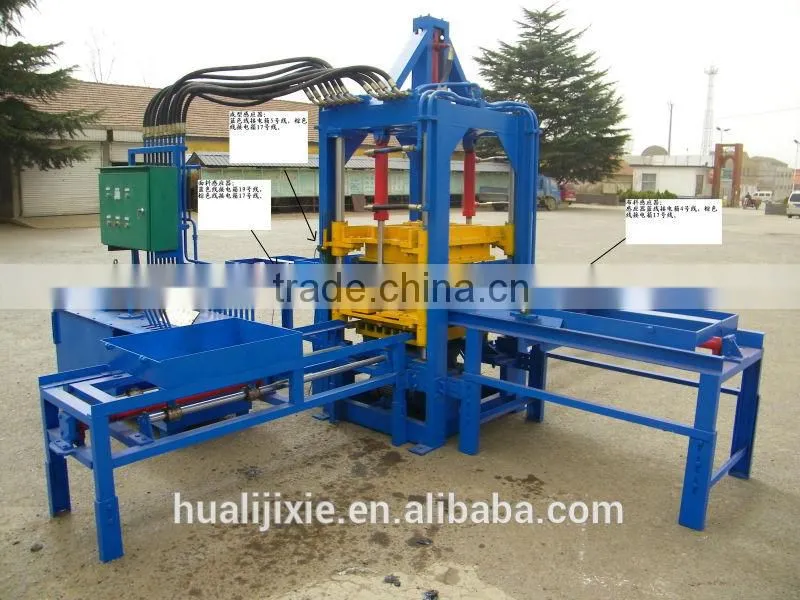

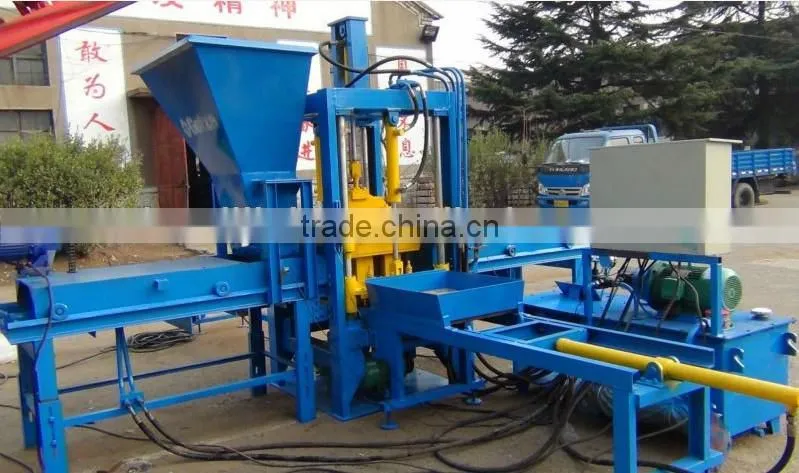

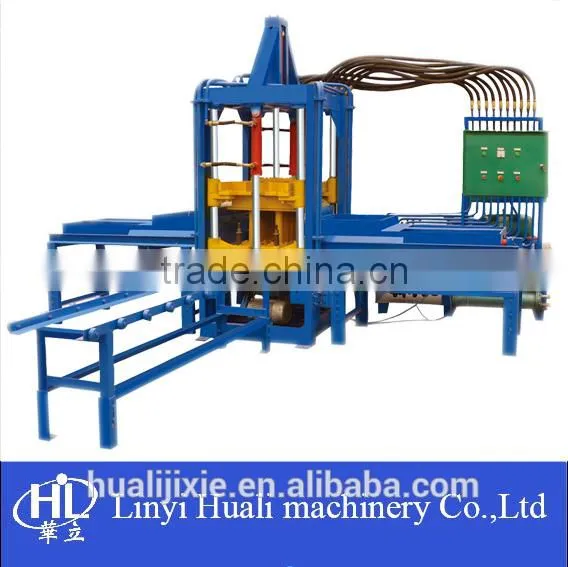

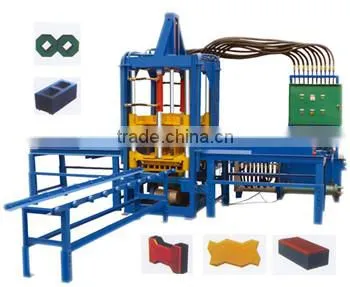

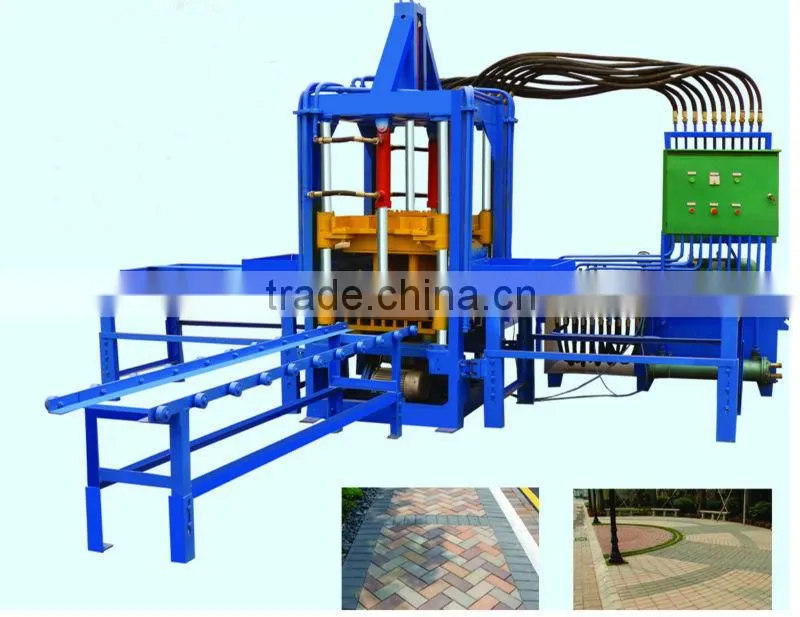

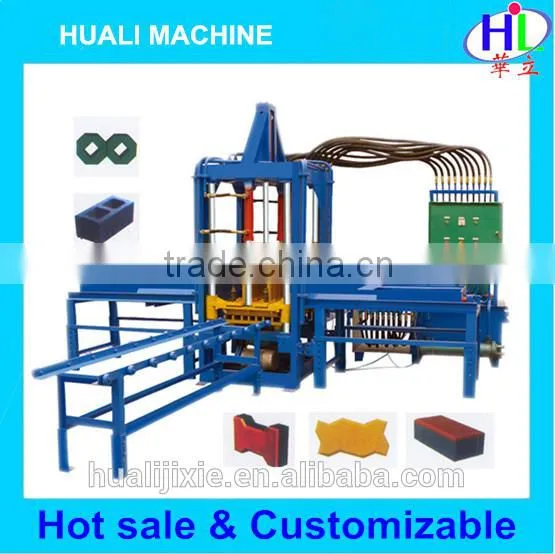

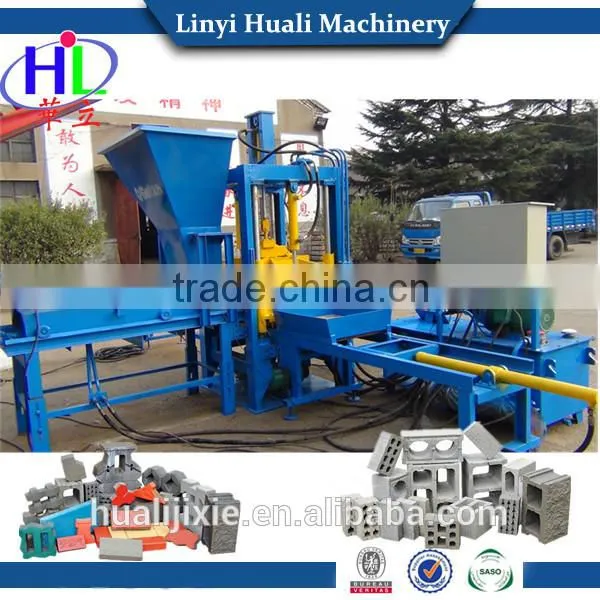

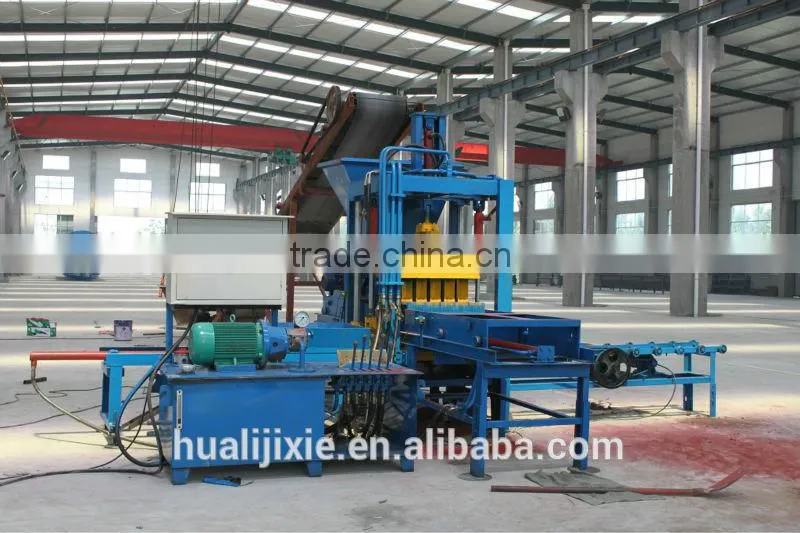

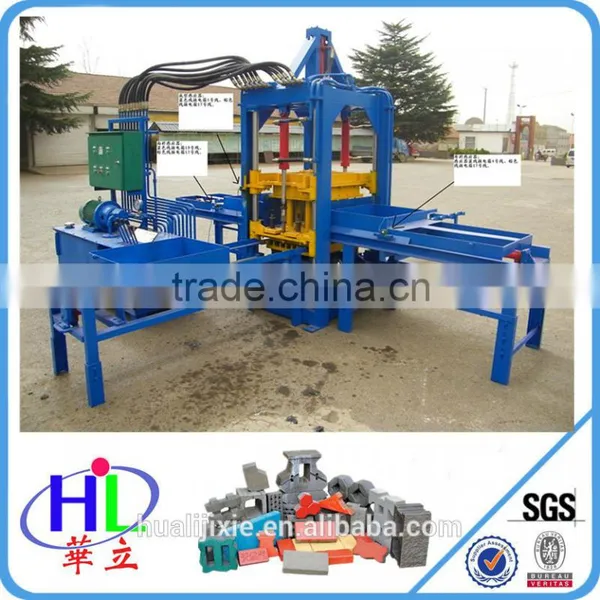

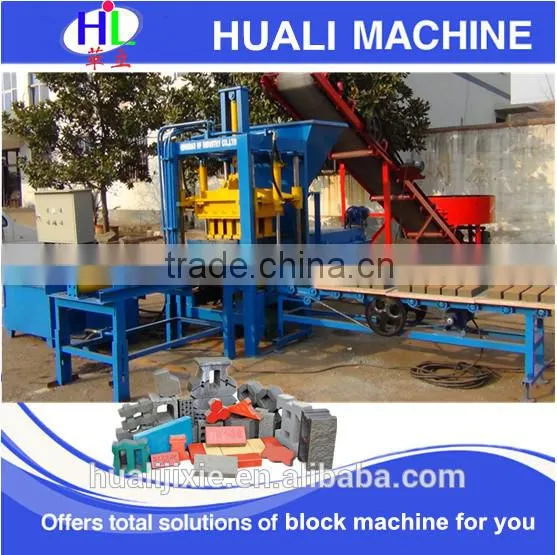

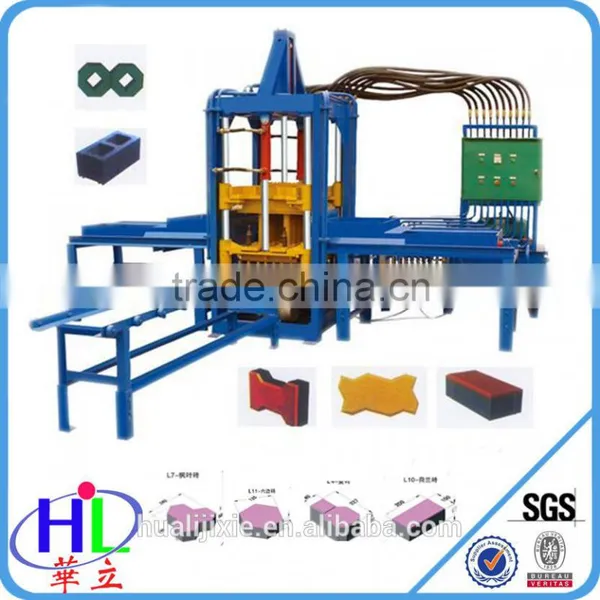

Photoes Show
Brief Introduction
1) paver block machine price qtf3-20 concrete paver machine is a compact oil hydraulic
machine according to the standard of international ensures the good quality.
2) concrete paver machine vibration system adopt platform vibration and mould vibration so the products is very close grained and produced quickly.
3)Most important thing is only one set this concrete paver machine can make different types
brick,such ashollow blocks,solid blocks,paver and interlocking blocks.
4)The novel feeding system gives material exactly and average and assures the products
having a high density.

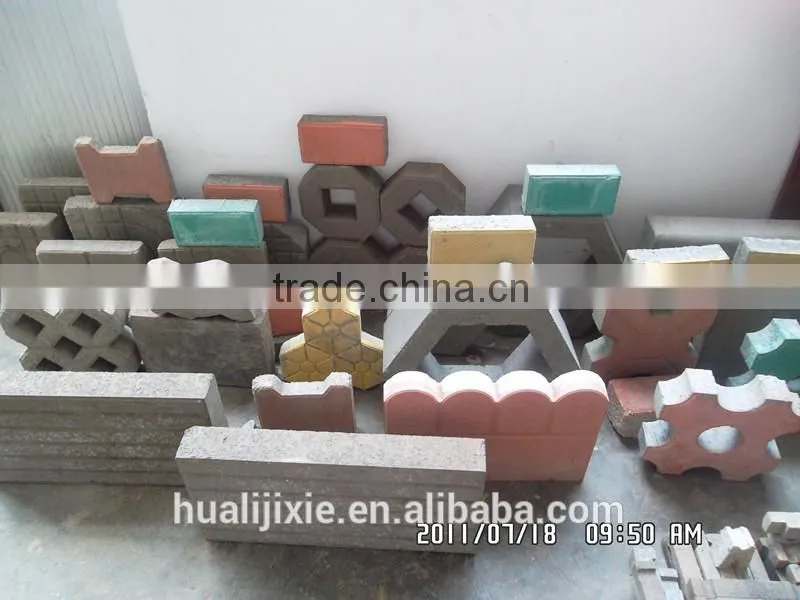

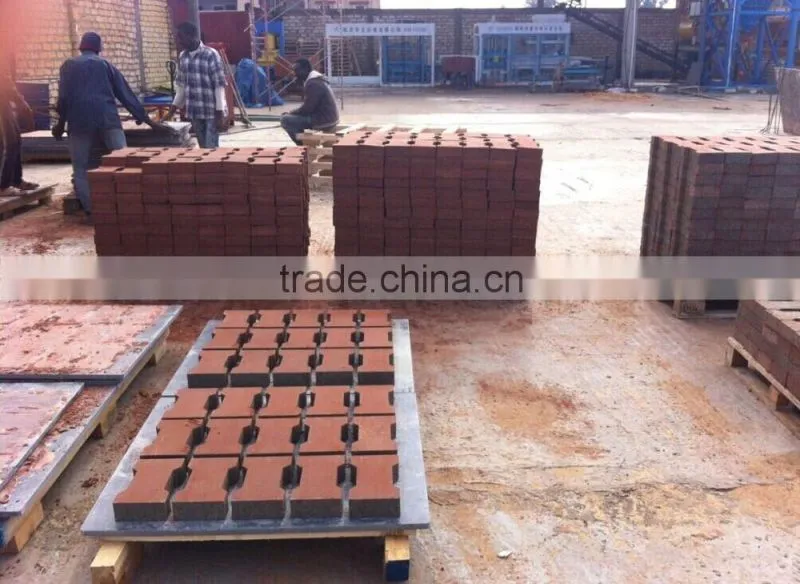

Block Samples
Notes:
1. Area: Workshop area: 80-120 m2, all factory area 500m2, the bigger, the better.
2. Workers : 3 or 4 workers.
3. Ratio of raw material:cement 8%-10% sand 30%-40% stone:50%-60%,
about cement :sand : stone is1:4:5.
4.Hollow block weight:(400*200*200) :17KG,(400*150*200):13.5KG,(400*100*200):10KG
5.Hollow blocks 8-10Mpa,solid bricks 10-12Mpa,pavers and interlocking bricks 12-15Mpa
