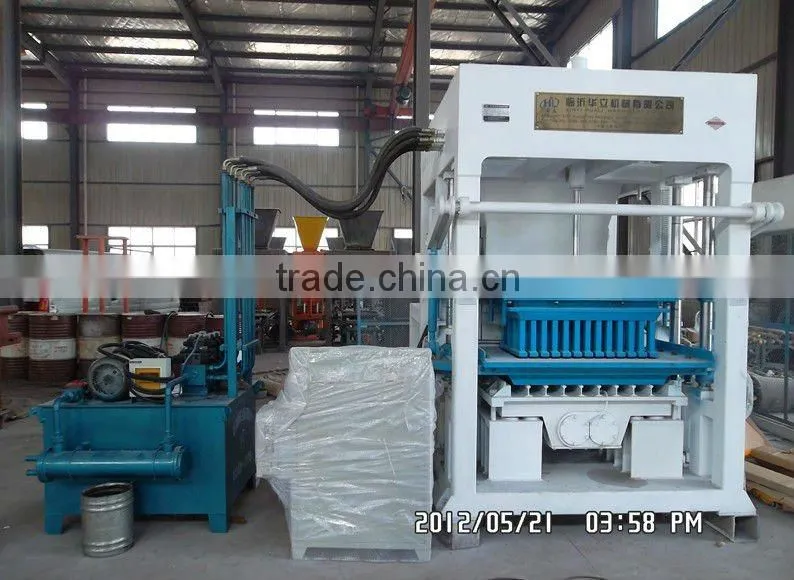

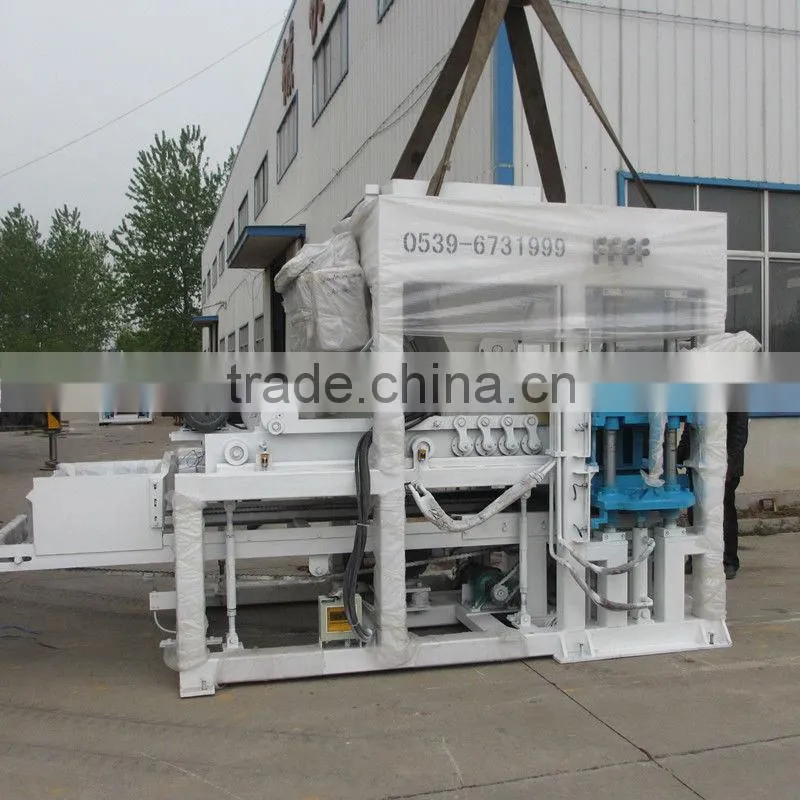

Automatic Paver Stone Machine for Sale

Automatic Paver Stone Machine for Sale photo-1
US$ 22,000 - 30,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Paving Block Making Machine
Brick Raw Material:
Other, cement/concrete/flyash
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO CHINA
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Paving Block Making Machine
Brick Raw Material Other, cement/concrete/flyash
Processing Brick Production Line
Method Hydraulic Pressure
Automatic Yes
Capacity 3800pcs-4500pcs/hour
Place of Origin Shandong, China
Brand Name HuaLi
Model Number QT4-15B
Voltage 380V/50HZ
Power 15.5KW
Dimension(L*W*H) 3000*2200*2600mm
Certification BV/ISO9001
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Automatic paver stone machine for sale

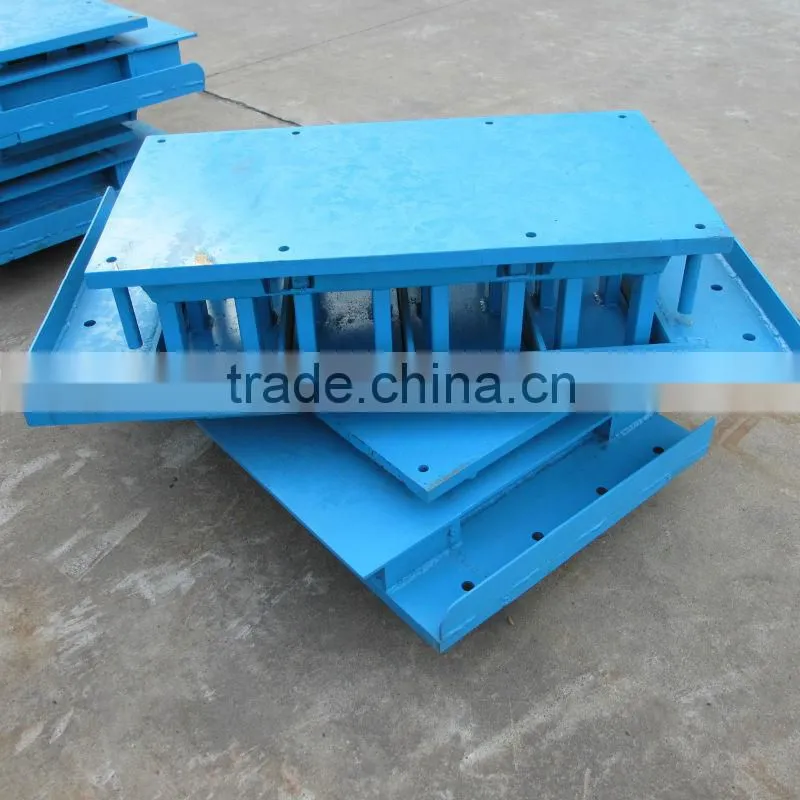

1.change moulds
2.ISO9001/CE/SGS
3.Imported hydraulic station
4.PLC control



                         AUTOMATIC PAVER  STONE MACHINE FOR SALE



1.The main technical specifications:



host machine size     3000*2200*2600mm
pallet size     935*580*20/25mm
molding cycle     15-20S
weight     8.5T
Vibration force     60KN
Rated Power      15.5KW
Vibration frequency      2850/min

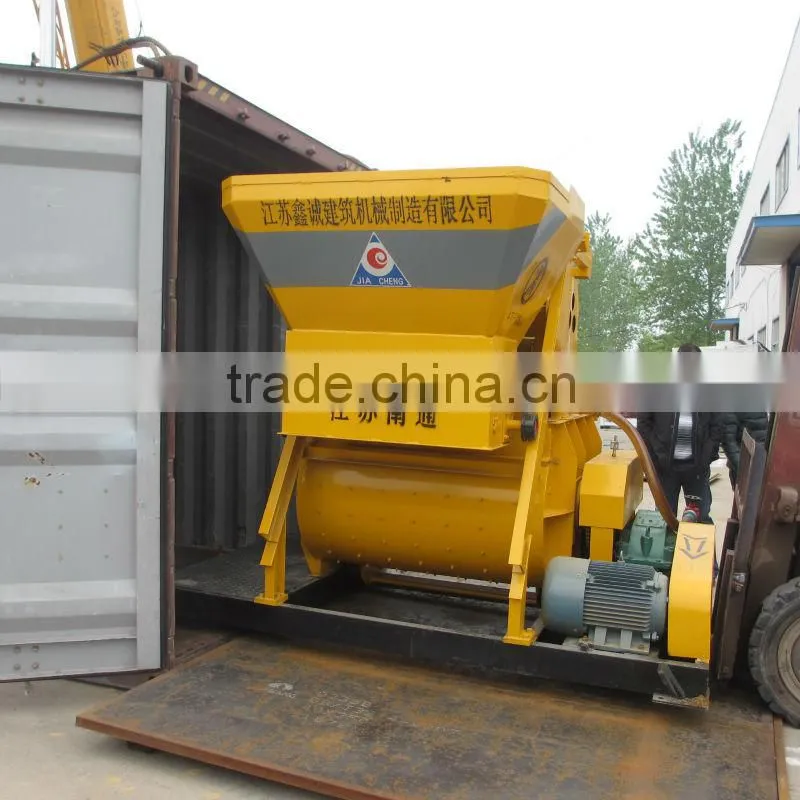

Mixer model      JS500



2.The capacity for automatic paver stone mahine for sale:



item Specifications Quantity/H(pc) pcs/mould
concrete block 390*190*190 640-720 4
solid block 240*115*53 3800-4500 26
porous block 240*115*90 1900-2250 14

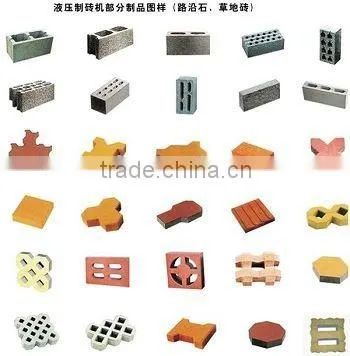

3.The paver block size:



Name


Size(L*W*H)

Capacity

Pcs/8hours

Ripple shape

     automatic paver stone machine for sale



225*112.5*60mm

About14000

Square shape

 automatic paver stone machine for sale

300*300*60mm

About 2880













automatic paver stone machine for sale



4.Advantage and functions:

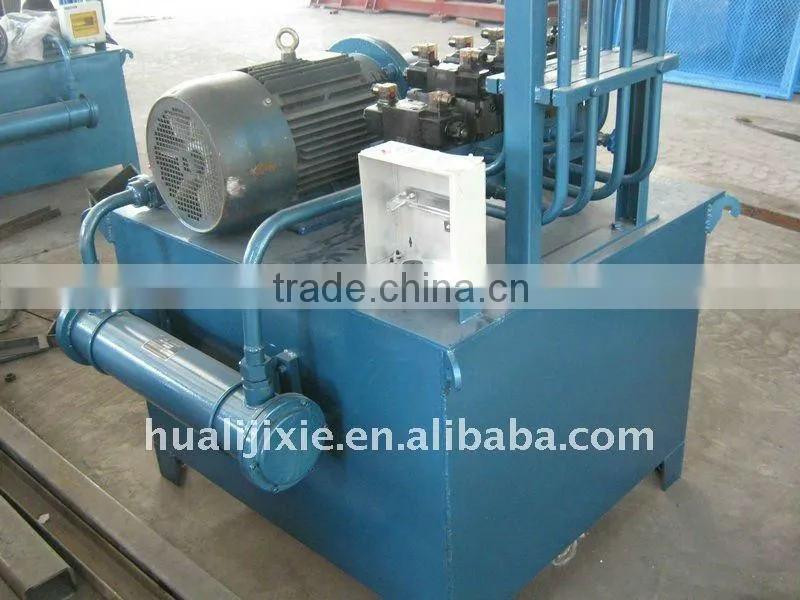

1.The hydraulic station of the machine adope the imported electro-hydraulic double proportional  control valve.According to the requirement of the machine,adjust the speed and pressure automaticly.Save the labor,prolong the life of the machine.

automatic paver stone machine for sale

2.The vibration section,adopt the frequency conversio control technology.Acoording to the needs about the block,the exiting force can be adjusted automaticly.

3.The direct shaft transmission part of a single motor are adopted.Less loss of the motive force.

automatic paver stone machine for sale

4.The main sections and parts are treated by temperature carburizing.It is sturdy and wear resisting.3 times longer life than normal products.

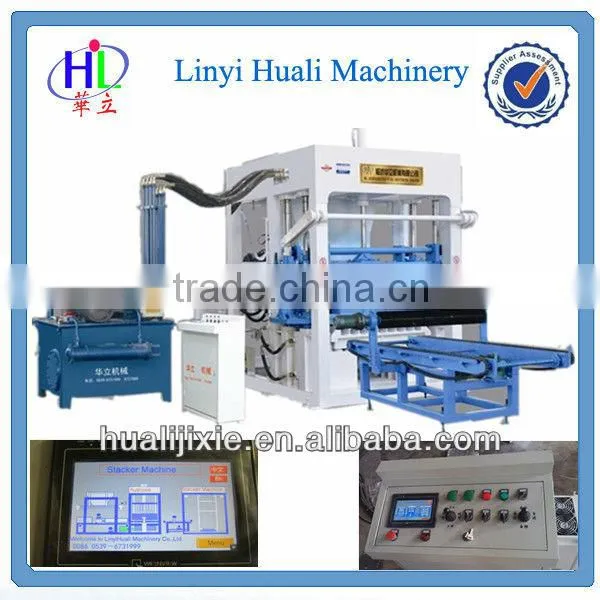

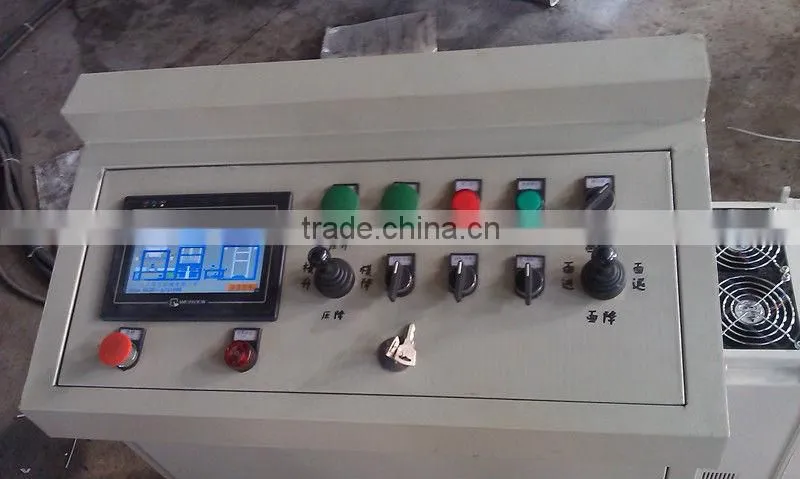

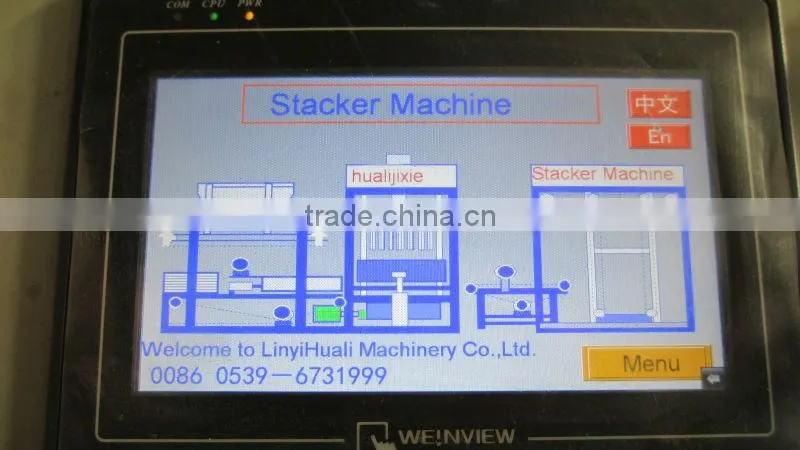

5.PLC control systerm and touch screen,easy to operate and have the function of fault waring.



6.QT4-15B could do the hollow block ,solid brick and colour paver.





  Colour system for feeding the colou raw materials:



automatic paver stone machine for sale



 Some real picture in our factory:





automatic paver stone machine for sale



automatic paver stone machine for sale



automatic paver stone machine for sale



automatic paver stone machine for sale





automatic paver stone machine for sale





automatic paver stone machine for sale



automatic paver stone machine for sale
