Specifications

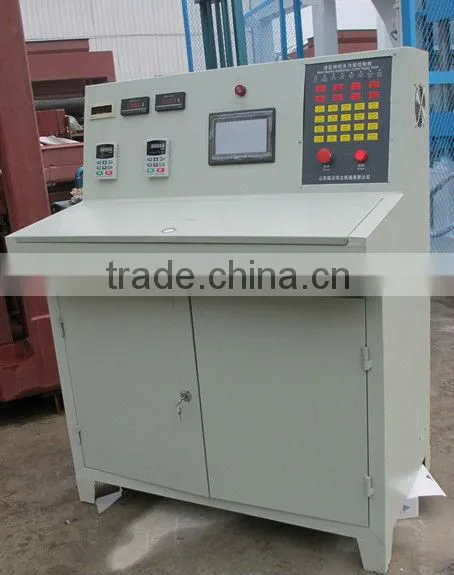

QT6-15 hydraform automatic block machine cost1.Delta PLC
2.make differnet block,paver
3.Free spare parts
4.high return
QT6-15 hydraform automatic block machine cost
1.Land area needed:
· Workshop area:400m2-500m2,the workshop size:35m*15m*4.5m
· All factory area:3000m2 is enough.The bigger the better.
2. Capacity and working time
· Capacity: 9600-11200pcs per shift (block size:390*190*190mm)
· Working times: 1 shit (8 hours)
· There are approximately 300 working days in a year
· The full line need 4 or 5 workers.
3. Product:
(1) Hollow block:400*200*200mm (17KG) Hollow block:400*150*200mm (13.5KG) Hollow block:400*100*200mm (10KG)
(2)Final block pressure: Hollow block can reach 8-10MPa,solid block can reach 10-12 Mpa.They have the high pressure,can be widely used.
4. Raw material:
1.Sand,flyash,crush stone,slag,construction garbage cement are all can be used in the making the block.
2. But the cement must be used in making the concrete block.
3.We define Clay as particles.
4.Rate of raw materials for example: Cement:8-10%,sand 30%-40%,stone:50%-60%. The rate of cement:sand:stone: 1:4:5 Water :3%-5% of raw material weight
I: QT6-15 hydraform automatic block machine cost
Overall size |
4900*2000*2700mm |
Molding cycle |
15-20S |
weight |
13T |
Pallet size |
990*850*20mm |
Rated power |
34KW |
Vibration force |
80KN |
Vibration frequency |
2850-4500/min |
Mixer model |
JS500 |
(2) Capacity of QT6-15 hydraform automatic block machine cost
Item |
Picture |
Specification (L*W*H) |
QTY/Hour ( Pcs) |
QTY/Mould (pcs) |
Hollow block |
|
390*190*190mm |
1500-1800 |
8 |
Solid block |
|
240*115*53mm |
7560-8894 |
42 |
Porous block |
|
240*115*90mm |
3780-4420 |
21 |
II:Automatic stacker for matching QT6-15 hydraform automatic block machine cost
Automatic, L*W*H: 2500*1780*2630mm weight:1.70 T

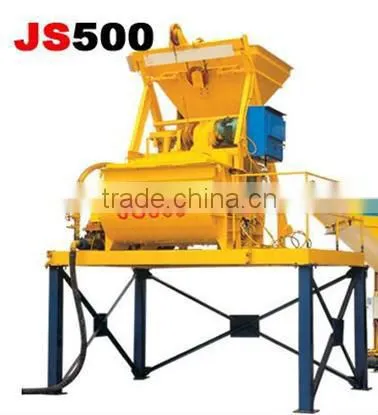

III:JS500 mixer for matching QT6-15 hydraform automatic block machine cost
Model |
JS500 |
|
Output capacity |
500L |
|
Input capacity |
800L |
|
Capacity |
≥25m3/h |
|
MAX.aggregate size |
80/60mm |
|
Mixing blades |
Rotation speed |
35r/min |
Number |
2*7 |
|
Stirring motor |
Type |
Y180m-4 |
power |
18.5KW |
|
Lifting motor |
Type |
YEZ1325-4-B5 |
power |
5.5KW |
|
Pump motor |
Type |
50DWB20-8A |
Power |
7.5W |
|
The average rate of hopper movement |
18m/min |
|
Upload material height |
1500mm |
|
Overall dimension |
Transporting status |
3050*2300*2680mm |
Operating status |
4461*3050*5225mm |
|
Machine weight |
4000KG |
|

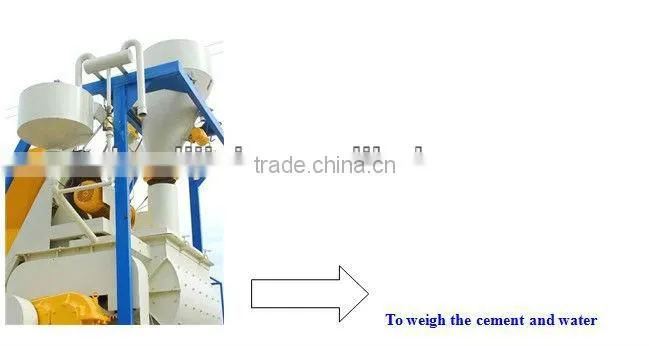

IV:cement scale and water scale:(Weighing the cement and scale automatic)
cement scale |
water scale |
|
Weighing range |
0-300KG |
0-150kg |
Weighing accuracy |
+/-1% |
+/-1% |
Weighing form |
Electronic sensor weighing |
Electronic sensor weighing |
Discharge equipment |
Cylinder/Butterfly valve |
Siphon/water pump |

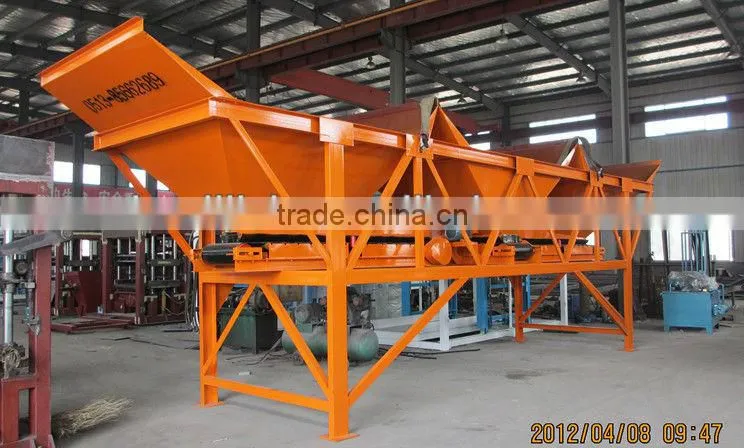

V:Batching plant PLD1200(bathing the raw material)

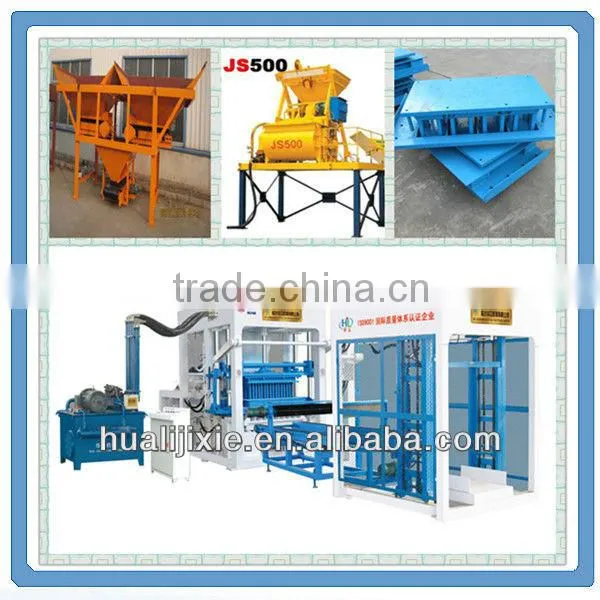

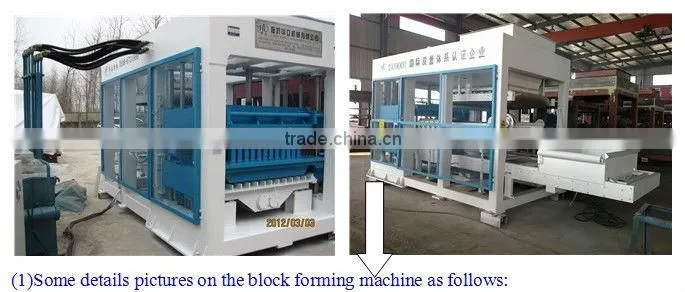

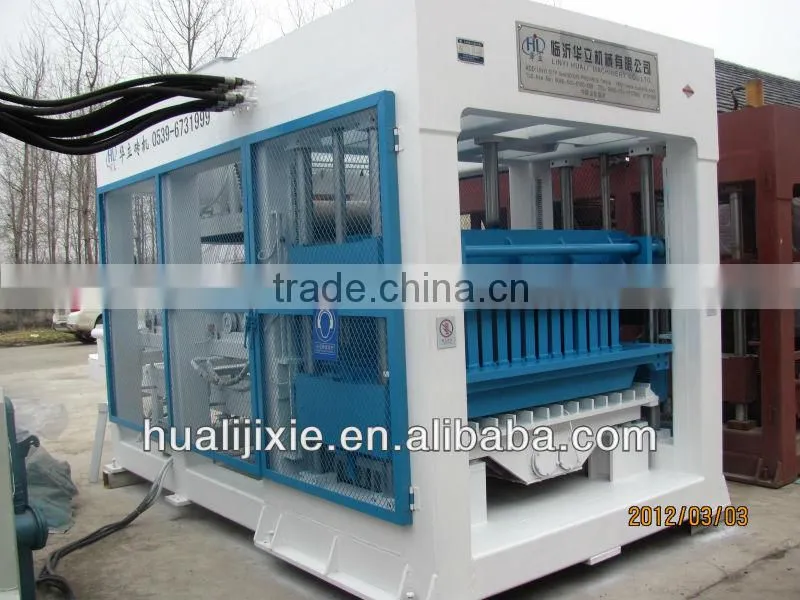

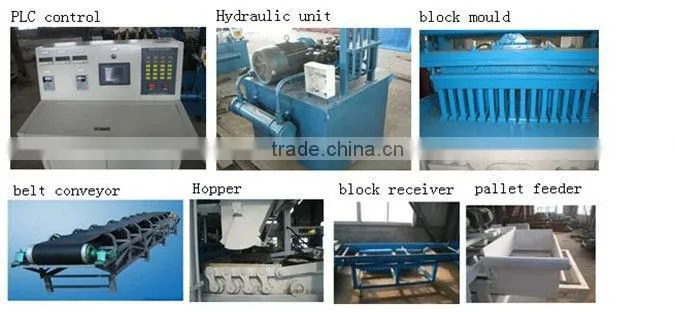

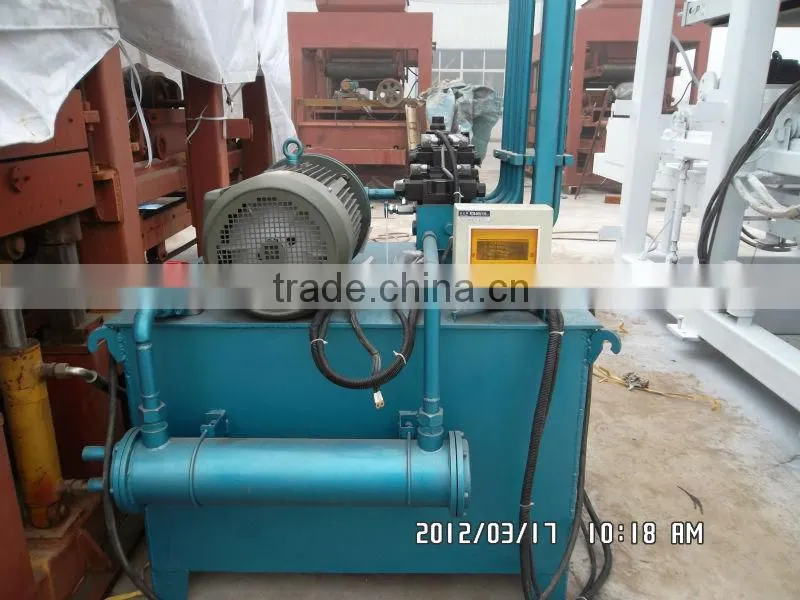

some real pictures

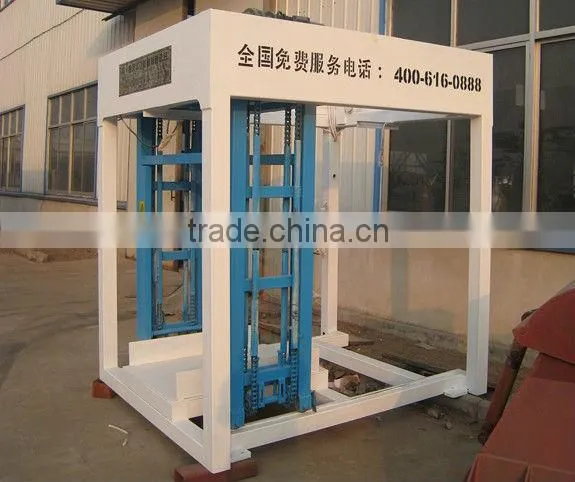

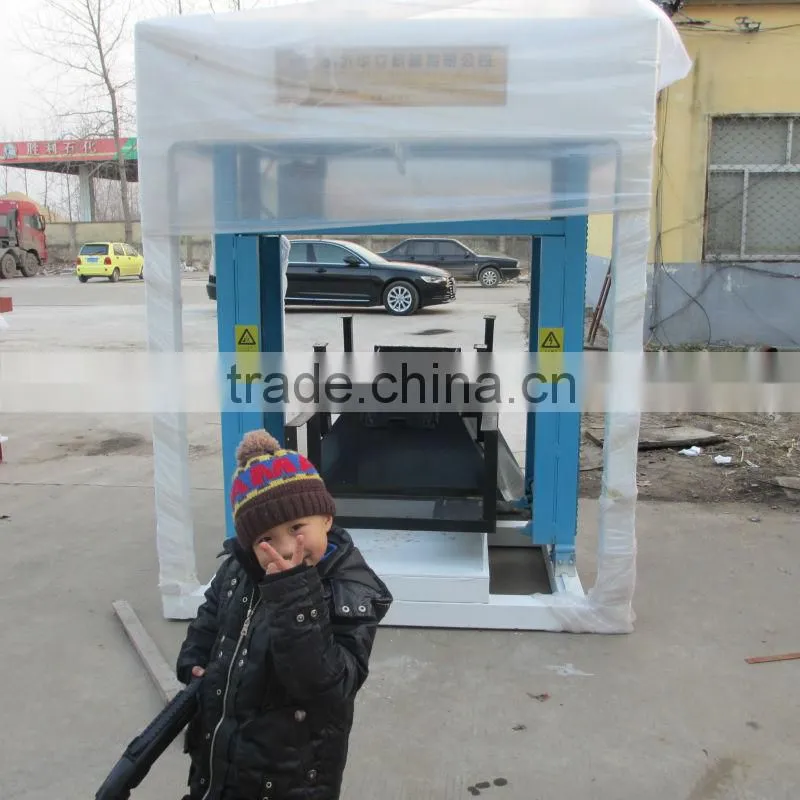

stacker for stacking the pallet with green block one by one:
